Mouse neurogenesis scRNA-seq (Noack et al. 2022) | Model evaluation
Here we compared the weights learned by several model iterations, to highlight
Performance user parameter combinations
Interpretation based on TF regulators
Coherence or learned graph-weights when assisting RNA-weights, or only using ATAC-weights
%load_ext autoreload
%autoreload 2
cd ~/workspace/theislab/mubind/docs/notebooks/single_cell
/home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell
/home/ilibarra/miniconda3/envs/mubind/lib/python3.9/site-packages/IPython/core/magics/osm.py:393: UserWarning: using bookmarks requires you to install the `pickleshare` library.
bkms = self.shell.db.get('bookmarks', {})
/home/ilibarra/miniconda3/envs/mubind/lib/python3.9/site-packages/IPython/core/magics/osm.py:417: UserWarning: using dhist requires you to install the `pickleshare` library.
self.shell.db['dhist'] = compress_dhist(dhist)[-100:]
!readlink -f .
/home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell
import torch
import mubind as mb
import scanpy as sc
!ls -ltrh /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022*
-rw-rw-r-- 1 ilibarra ilibarra 18M Jun 10 02:06 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_use_logdynamic_0.pth
-rw-rw-r-- 1 ilibarra ilibarra 21M Jun 10 02:06 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_use_logdynamic_1.pth
-rw-rw-r-- 1 ilibarra ilibarra 909M Jun 10 02:06 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_sample_train.h5ad
-rw-rw-r-- 1 ilibarra ilibarra 18M Jun 13 02:51 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_use_logdynamic_0_obs7468.pth
-rw-rw-r-- 1 ilibarra ilibarra 21M Jun 13 02:51 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_use_logdynamic_1_obs7468.pth
-rw-rw-r-- 1 ilibarra ilibarra 887M Jun 13 02:51 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_sample_train_obs7468.h5ad
-rw-rw-r-- 1 ilibarra ilibarra 833K Jul 5 00:27 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_use_logdynamic_0_obs86.pth
-rw-rw-r-- 1 ilibarra ilibarra 836K Jul 5 00:27 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_use_logdynamic_1_obs86.pth
-rw-rw-r-- 1 ilibarra ilibarra 22M Jul 5 00:27 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_sample_train_obs86.h5ad
-rw-rw-r-- 1 ilibarra ilibarra 1.5M Jul 5 00:51 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_use_logdynamic_0_obs386.pth
-rw-rw-r-- 1 ilibarra ilibarra 1.6M Jul 5 00:51 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_use_logdynamic_1_obs386.pth
-rw-rw-r-- 1 ilibarra ilibarra 57M Jul 5 00:51 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_sample_train_obs386.h5ad
-rw-rw-r-- 1 ilibarra ilibarra 17M Jul 8 03:27 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_use_logdynamic_0_obs7359.pth
-rw-rw-r-- 1 ilibarra ilibarra 21M Jul 8 03:27 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_use_logdynamic_1_obs7359.pth
-rw-rw-r-- 1 ilibarra ilibarra 875M Jul 8 03:27 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_sample_train_obs7359.h5ad
-rw-rw-r-- 1 ilibarra ilibarra 17M Jul 20 18:14 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_use_logdynamic_0_obs7359_var1948.pth
-rw-rw-r-- 1 ilibarra ilibarra 21M Jul 20 18:14 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_use_logdynamic_1_obs7359_var1948.pth
-rw-rw-r-- 1 ilibarra ilibarra 875M Jul 20 18:14 /home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/noack_2022_sample_train_obs7359_var1948.h5ad
pwd
'/home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell'
# query
# obs_id = 7468 # publication case
obs_id = 7359 # testing hadamard
# 7359
import os
# load models
model_by_logdynamic = {}
for use_logdynamic in [False, True]:
p = 'noack_2022_use_logdynamic_%i_obs%s.pth' % (use_logdynamic, obs_id)
print(os.path.exists(p), p)
model_by_logdynamic[use_logdynamic] = torch.load(p)
True noack_2022_use_logdynamic_0_obs7359.pth
True noack_2022_use_logdynamic_1_obs7359.pth
ad = sc.read_h5ad('noack_2022_sample_train_obs%s.h5ad' % obs_id)
# ad = sc.read_h5ad('atac_train.h5ad')
#rna_sample = sc.read_h5ad('rna_sample_train.h5ad')
rna_sample = ad
rna_sample.shape
(7359, 1948)
import pickle
train = pickle.load(open('train_dataloader_obs%s.pkl' % obs_id, 'rb'))
%load_ext line_profiler
# # load the pancreas multiome dataset
# rna, atac = mb.datasets.pancreas_multiome() # data_directory='../../../annotations/scatac')
# %lprun -f model.forward model.optimize_iterative(train, n_epochs=10, skip_kernels=list([0]) + list(range(2, 500)), opt_kernel_shift=[0, 0] + [0] * (n_kernels), opt_kernel_length=[0, 0] + [0] * (n_kernels))
# %lprun -f model.binding_modes.forward model.optimize_iterative(train, n_epochs=10, skip_kernels=list([0]) + list(range(2, 500)), opt_kernel_shift=[0, 0] + [0] * (n_kernels), opt_kernel_length=[0, 0] + [0] * (n_kernels))
import matplotlib.pyplot as plt
for optimize_log_dynamic in model_by_logdynamic:
model = model_by_logdynamic[optimize_log_dynamic]
print(optimize_log_dynamic)
from matplotlib import rcParams
rcParams['figure.figsize'] = 20, 5
rcParams['figure.dpi'] = 100

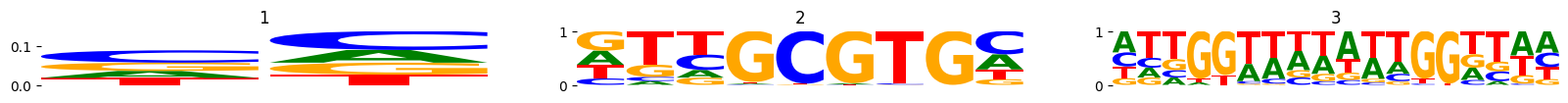

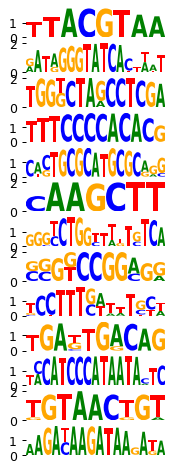

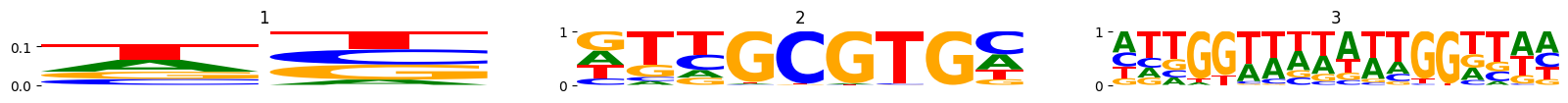

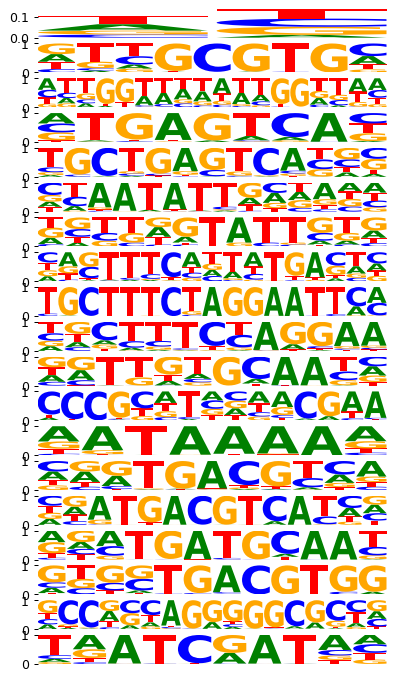

mb.pl.logo(model, n_cols=3, show=True, n_rows=6, stop_at=4) # log=True)
plt.show()
False
break
True
break
for optimize_log_dynamic in model_by_logdynamic:
if not optimize_log_dynamic:
continue
model = model_by_logdynamic[optimize_log_dynamic]
print(optimize_log_dynamic)
tsum = torch.sum
texp = torch.exp
tspa = torch.sparse_coo_tensor
tsmm = torch.sparse.mm
t = torch.transpose
# connectivities
C = model.graph_module.conn_sparse
a_ind = C.indices()
log_dynamic = model.graph_module.log_dynamic
D = model.graph_module.log_dynamic
D_tril = tspa(a_ind, D, C.shape) # .requires_grad_(True).cuda()
D_triu = tspa(a_ind, -D, C.shape) # .requires_grad_(True).cuda()
D = D_tril + t(D_triu, 0, 1)
# log_dynamic = log_dynamic + -torch.transpose(log_dynamic, 0, 1)
# triu_indices = torch.triu_indices(row=n_rounds, col=n_rounds, offset=1)
D
import seaborn as sns
mb.pl.set_rcParams({'figure.figsize': [3, 3]})

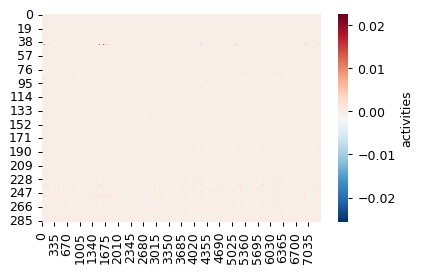

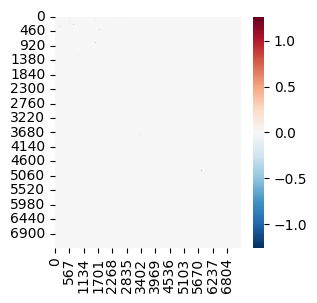

sns.heatmap(D.to_dense().detach().cpu(), cmap='RdBu_r')
plt.show()
True
model = model_by_logdynamic[1]
D
tensor(indices=tensor([[ 0, 0, 0, ..., 6906, 6980, 7289],
[ 1, 251, 289, ..., 7358, 7358, 7358]]),
values=tensor([ 0.1255, 0.5133, 0.5014, ..., -0.5014, -0.5014,
-0.5014]),
device='cuda:0', size=(7359, 7359), nnz=280548, layout=torch.sparse_coo,
grad_fn=<AddBackward0>)
pwd
'/home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell'
mb.pl.set_rcParams({'figure.figsize': [12, 3], 'figure.dpi': 110})
plt.subplot(1, 4, 1)

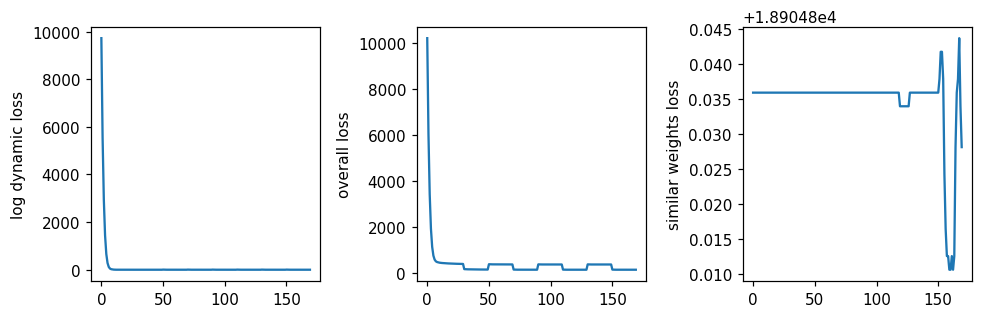

plt.plot(model.loss_history_log_dynamic)
plt.ylabel('log dynamic loss')
plt.subplot(1, 4, 2)
plt.plot(model.loss_history)
plt.ylabel('overall loss')
plt.subplot(1, 4, 3)
plt.plot(model.loss_history_sym_weights)
plt.ylabel('similar weights loss')
plt.tight_layout()
plt.savefig('losses_noack.pdf')
plt.show()
!readlink -f losses.pdf
/home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell/losses.pdf
import pandas as pd
import numpy as np
rcParams['figure.figsize'] = 3, 5
r2_all = []
for optimize_log_dynamic in model_by_logdynamic:
print(optimize_log_dynamic)
model = model_by_logdynamic[optimize_log_dynamic]
# contributions per newly added kernel
import seaborn as sns
if len(model.best_r2_by_new_filter) != 0:
r2 = pd.DataFrame(model.best_r2_by_new_filter, columns=['r2']).reset_index()
r2['opt_log_dynamic'] = optimize_log_dynamic
r2_all.append(r2)
if len(r2_all) > 0:
r2_all = pd.concat(r2_all)
rcParams['figure.figsize'] = 3, 3
rcParams['figure.dpi'] = 80
ax = sns.barplot(data=r2_all, x='index', y='r2', hue='opt_log_dynamic', )
sns.move_legend(ax, "lower center", bbox_to_anchor=(.4, 1), ncol=3, title=None, frameon=False)
plt.xlabel('number of filters in model')
plt.show()
False
True
rcParams['figure.dpi'] = 120
rcParams['figure.figsize'] = 2, 2
df = r2_all.sort_values('index', ascending=False).groupby('opt_log_dynamic').head(1)
print(df)
sns.barplot(df, y='r2', x='opt_log_dynamic')
index r2 opt_log_dynamic
3 3 0.566473 False
3 3 0.564373 True
<Axes: xlabel='opt_log_dynamic', ylabel='r2'>
model = model_by_logdynamic[True]
torch.set_printoptions(precision=2)
dynamic_score = D.to_dense().detach().cpu().sum(axis=0)
# dyn_score
dynamic_score = dynamic_score
dynamic_score = (dynamic_score - dynamic_score.min()) / (dynamic_score.max() - dynamic_score.min())
ad.obs['dynamic_score'] = dynamic_score
ad.obs['dynamic_score_cluster'] = np.where(dynamic_score > dynamic_score.mean(), 'dynamic', 'static')
z1 = np.where(((dynamic_score - dynamic_score.mean()) / dynamic_score.std()) > 1, 'dynamic', 'static')
z2 = np.where(((dynamic_score - dynamic_score.mean()) / dynamic_score.std()) > 2, 'dynamic', 'static')
ad.obs['dynamic_score_z1'] = z1
ad.obs['dynamic_score_z2'] = z2
ad.obs['dynamic_score'].describe()
count 7359.000000
mean 0.438135
std 0.054474
min 0.000000
25% 0.438130
50% 0.438135
75% 0.438140
max 1.000000
Name: dynamic_score, dtype: float64
ad.obs['dynamic_score_abs'] = ad.obs['dynamic_score'].abs()
sc.pl.umap(ad, color='dynamic_score_abs', color_map='Reds', vmin=.45)
# contributions per newly added kernel
mb.pl.set_rcParams({'figure.figsize': [5, 5], 'figure.dpi': 90})

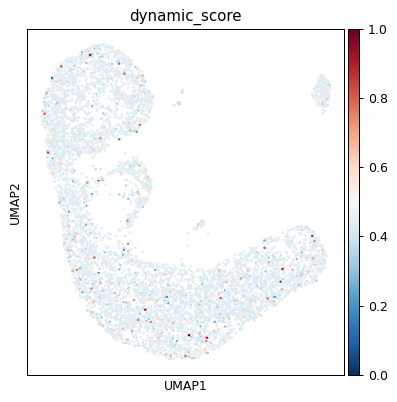

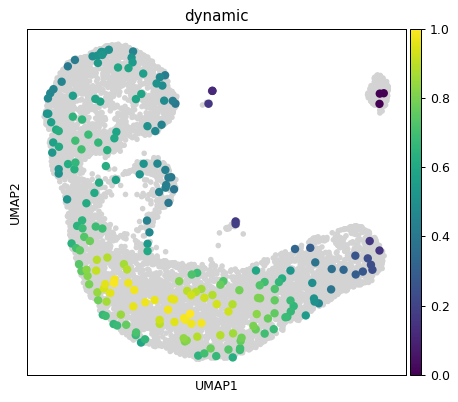

sc.pl.umap(ad, color=['dynamic_score'], cmap='RdBu_r', sort_order=True)

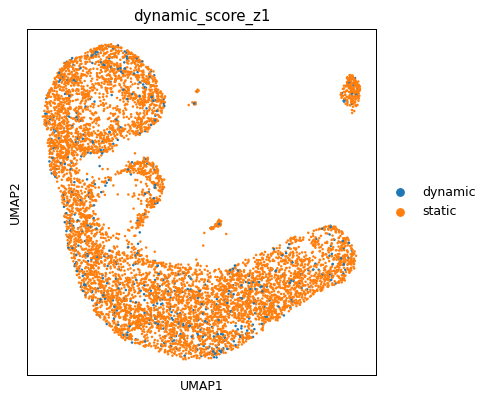

sc.pl.umap(ad, color=['dynamic_score_z1'], cmap='RdBu_r', sort_order=True)
sc.tl.embedding_density(ad, basis='umap', groupby='dynamic_score_z1')
sc.pl.embedding_density(ad, basis='umap', key='umap_density_dynamic_score_z1', group='dynamic') # basis='umap', groupby='dynamic_score_cluster')
sc.tl.embedding_density(ad, basis='umap', groupby='dynamic_score_z2')
sc.pl.embedding_density(ad, basis='umap', key='umap_density_dynamic_score_z2', group='dynamic', color_map='viridis') # basis='umap', groupby='dynamic_score_cluster')
import seaborn as sns
umap = ad.obsm['X_umap']
sns.histplot(x=umap[:, 0], y=umap[:, 1], bins=50, cmap='PiYG')
<Axes: >
plt.pcolormesh(
np.histogram2d(umap[:, 0], umap[:, 1], bins=50)[0]
)
<matplotlib.collections.QuadMesh at 0x7081774cf2b0>
x, y = np.meshgrid(umap[:, 0], umap[:, 1])
x = umap[:,1] # array_txt[:,0]
y = umap[:,1] # array_txt[:,1]
z = ad.obs['dynamic_score'].values # array_txt[:,2]

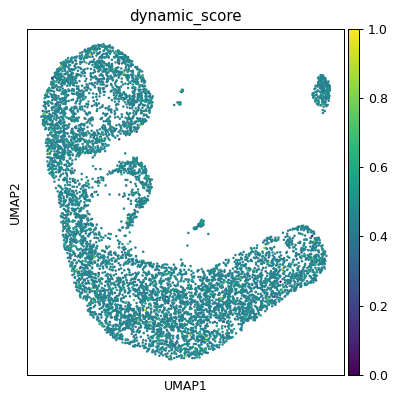

sc.pl.umap(ad, color='dynamic_score')
import matplotlib.pyplot as plt
import numpy as np
rcParams['figure.figsize'] = 5, 3
# generate 2 2d grids for the x & y bounds
y, x = np.meshgrid(np.linspace(-3, 3, 100), np.linspace(-3, 3, 100))

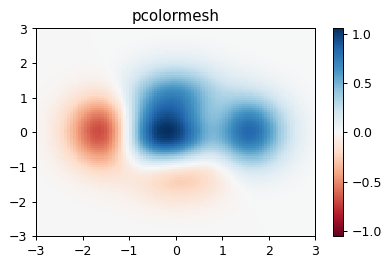

z = (1 - x / 2. + x ** 5 + y ** 3) * np.exp(-x ** 2 - y ** 2)
z = z[:-1, :-1]
z_min, z_max = -np.abs(z).max(), np.abs(z).max()
fig, ax = plt.subplots()
c = ax.pcolormesh(x, y, z, cmap='RdBu', vmin=z_min, vmax=z_max)
ax.set_title('pcolormesh')
# set the limits of the plot to the limits of the data
ax.axis([x.min(), x.max(), y.min(), y.max()])
fig.colorbar(c, ax=ax)
plt.show()
import itertools
import numpy as np
def grid(x, y, z, size_x=1, size_y=1):
def pairwise(iterable):
"s -> (s0,s1), (s1,s2), (s2, s3), ..."
a, b = itertools.tee(iterable)
next(b, None)
return zip(a, b)
minx, maxx = int(min(x)), int(max(x)) + 1
miny, maxy = int(min(y)), int(max(y)) + 1
result = []
x_edges = pairwise(np.arange(minx, maxx + 1, size_x))
for xleft, xright in x_edges:
xmask = np.logical_and(x >= xleft, x < xright)
y_edges = pairwise(np.arange(miny, maxy + 1, size_y))
for yleft, yright in y_edges:
ymask = np.logical_and(y >= yleft, y < yright)
cell = z[np.logical_and(xmask, ymask)]
result.append(cell.sum())
result = np.array(result).reshape((maxx - minx, maxy - miny))
return np.flip(result.T, 0)
cell_type_key = 'clusters'
grid_dyn_score = grid(umap[:,0], umap[:,1], ad.obs['dynamic_score'], size_x=1, size_y=1)
grid_counts = grid(umap[:,0], umap[:,1], ad.obs[cell_type_key].cat.codes.values, size_x=1, size_y=1)
sns.heatmap(grid_dyn_score, cmap='Reds')
plt.show()
sns.heatmap(grid_counts, cmap='Reds')
plt.show()

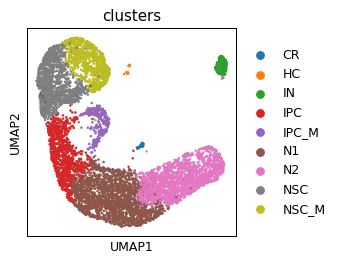

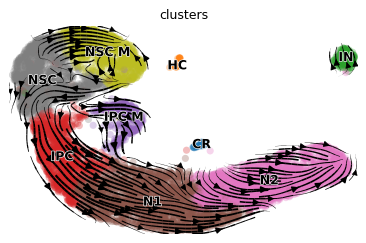

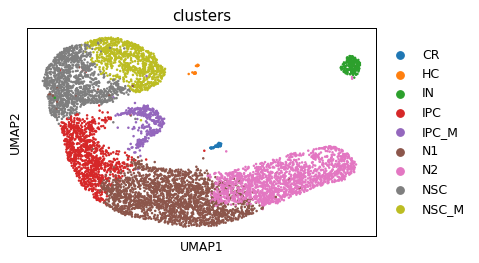

sc.pl.umap(ad, color=cell_type_key)
# for optimize_log_dynamic in model_by_logdynamic:
# mb.pl.set_rcParams({'figure.figsize': [3, 3], 'figure.dpi': 90})
# print(optimize_log_dynamic)
# model = model_by_logdynamic[optimize_log_dynamic]
# mb.pl.kmer_enrichment(model, train, log_scale=False, style='scatter', ylab='t1', xlab='p1', k=8)
# plt.show()
# mb.pl.set_rcParams({'figure.figsize': [10, 7], 'figure.dpi': 90})
# mb.pl.logo(model,
# title=False,
# xticks=False,
# rowspan_dinuc=0,
# rowspan_mono=1,
# n_rows=12,
# n_cols=3,
# stop_at=20) # n_cols=len(reduced_groups))
# plt.show()
model = model_by_logdynamic[True]
G = model.graph_module.conn_sparse.detach().cpu().to_dense() # (C, C)
# number of non_zero weights
len(G[G != 0])
140274
# output = model(**inputs, use_conn=False, return_binding_scores=True)
print('here...')
here...
ad
AnnData object with n_obs × n_vars = 7359 × 1948
obs: 'Clusters', '_X', '_Y', 'initial_size_unspliced', 'initial_size_spliced', 'initial_size', 'n_counts', 'louvain', 'clusters', 'velocity_self_transition', 'root_cells', 'end_points', 'velocity_pseudotime', 'latent_time', 'dynamic_score', 'dynamic_score_cluster', 'dynamic_score_z1', 'dynamic_score_z2', 'dynamic_score_abs', 'umap_density_dynamic_score_z1', 'umap_density_dynamic_score_z2'
var: 'Accession', 'Chromosome', 'End', 'Start', 'Strand', 'means', 'dispersions', 'dispersions_norm', 'velocity_gamma', 'velocity_r2', 'velocity_genes', 'fit_alpha', 'fit_beta', 'fit_gamma', 'fit_t_', 'fit_scaling', 'fit_std_u', 'fit_std_s', 'fit_likelihood', 'fit_u0', 'fit_s0', 'fit_pval_steady', 'fit_steady_u', 'fit_steady_s', 'fit_alignment_scaling', 'chrom', 'pos', 'strand', 'tss_start', 'tss_end', 'chromosome_name', 'k', 'acc_score', 'acc_score_rank', 'chr', 'summit.start', 'summit.end', 'k.summit'
uns: 'clusters_colors', 'louvain', 'louvain_colors', 'neighbors', 'pca', 'recover_dynamics', 'velocity_graph', 'velocity_graph_neg', 'velocity_settings', 'dynamic_score_z1_colors', 'umap_density_dynamic_score_z1_params', 'umap_density_dynamic_score_z2_params'
obsm: 'X_pca', 'X_umap', 'velocity_umap'
varm: 'PCs', 'loss'
layers: 'Ms', 'Mu', 'ambiguous', 'fit_t', 'fit_tau', 'fit_tau_', 'matrix', 'spliced', 'unspliced', 'variance_velocity', 'velocity', 'velocity_u'
obsp: 'connectivities', 'distances'
model = model.cuda()
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
# device = 'cpu'
# device
pwd
'/home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell'
train.batch_size
256
for optimize_log_dynamic in model_by_logdynamic:
print(optimize_log_dynamic)
if not optimize_log_dynamic:
continue
model = model_by_logdynamic[optimize_log_dynamic].cuda()
umap = ad.obsm['X_umap'].copy()
umap = np.sort(umap, 0)
x = umap[:,0]
y = umap[:,1]
X, Y = np.meshgrid(x, y)
n_points = x.shape[0]
# x-component to the right
u = np.ones((n_points, n_points))
# y-component zero
v = np.zeros((n_points, n_points))
pred = []
for i, batch in enumerate(train):
# Get a batch and potentially send it to GPU memory.
mononuc = batch["mononuc"].to(device)
# print(i, mononuc.shape)
b = batch["batch"].to(device) if "batch" in batch else None
rounds = batch["rounds"].to(device) if "rounds" in batch else None
countsum = batch["countsum"].to(device) if "countsum" in batch else None
seq = batch["seq"] if "seq" in batch else None
residues = batch["residues"].to(device) if "residues" in batch else None
if residues is not None and train.dataset.store_rev:
mononuc_rev = batch["mononuc_rev"].to(device)
inputs = {"mono": mononuc, "mono_rev": mononuc_rev, "batch": b, "countsum": countsum,
"residues": residues}
elif residues is not None:
inputs = {"mono": mononuc, "batch": b, "countsum": countsum, "residues": residues}
elif train.dataset.store_rev:
mononuc_rev = batch["mononuc_rev"].to(device)
inputs = {"mono": mononuc, "mono_rev": mononuc_rev, "batch": b, "countsum": countsum}
else:
inputs = {"mono": mononuc, "batch": b, "countsum": countsum}
inputs['scale_countsum'] = model.datatype == 'selex'
output = model(**inputs, use_conn=False, return_binding_scores=True)
output = output.cpu().detach().numpy()
print('here...')
print(output.shape)
print(output.sum())
pred.append(output)
# pred = np.concatenate(pred).T
binding_scores = np.concatenate(pred).T
# ad.layers['velocity'] = pred
# conn = model.graph_module.conn_sparse.detach().cpu()
# conn = model.graph_module.conn_sparse.detach().cpu().to_dense()
# v = conn.sum(axis=1)
# ad.layers['velocity'] = torch.stack([v,] * ad.shape[1], axis=1).numpy()
# ad.layers['counts'] = ad.X
# mb.pl.set_rcParams({'figure.figsize': [5, 4], 'figure.dpi': 90})
# plt.hist(model.graph_module.conn_sparse.values().detach().cpu().numpy())
# plt.show()
# import scvelo as scv
# sc.pp.neighbors(ad)
# # scv.tl.velocity_graph(ad, vkey='velocity', xkey='counts')
# # ad.layers['velocity'] = ad.obs['dynamic_score']
# scv.tl.velocity_graph(ad, vkey='velocity', xkey='counts')
# ax = scv.pl.velocity_embedding_stream(ad, color='celltype', show=False) # X_grid='X_umap', V=V)
X = ad.X.A
G @ binding_scores
np.random.shuffle(binding_scores)
False
True
here...
(256, 7359)
4055290300000.0
here...
(256, 7359)
6317207000000.0
here...
(256, 7359)
5242914000000.0
here...
(256, 7359)
4033818400000.0
here...
(256, 7359)
4542154400000.0
here...
(256, 7359)
3474303200000.0
here...
(256, 7359)
5099480400000.0
here...
(156, 7359)
3765126000000.0
import scvelo as scv
ad.shape, binding_scores.shape
((7359, 1948), (7359, 1948))
ad
ad.layers['velocity'] = binding_scores
# scv.tl.velocity_graph(ad, vkey='velocity', xkey='counts')
# ax = scv.pl.velocity_embedding_stream(ad, color='celltype', show=False) # X_grid='X_umap', V=V)
np.random.shuffle(binding_scores)
binding_scores
array([[1742439. , 1966243.4, 1944581.6, ..., 2549281.2, 3346296. ,
2905771. ],
[1742382.1, 1966200.1, 1944551.4, ..., 2549803. , 3347279.8,
2906606.5],
[1742469.6, 1966290.5, 1944630.9, ..., 2549936.2, 3347304.5,
2906533. ],
...,
[1742390.1, 1966195.9, 1944579. , ..., 2550213. , 3347730.2,
2906630.8],
[1742391.9, 1966217.2, 1944551.1, ..., 2550047. , 3347594.2,
2906810.8],
[1742527.1, 1966385.2, 1944695.5, ..., 2549845.2, 3347059. ,
2905971. ]], dtype=float32)
try:

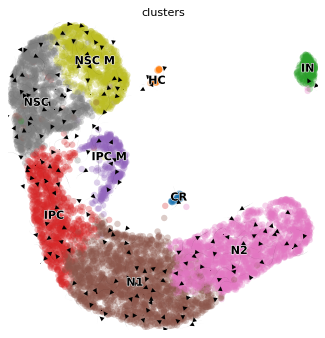

scv.pl.velocity_embedding_stream(rna_sample, color=cell_type_key)
except Exception:
print("sample too small.")
# np.random.shuffle(binding_scores)
# ad.layers['velocity'] = binding_scores
# scv.tl.velocity_graph(ad, vkey='velocity', xkey='counts')
# ax = scv.pl.velocity_embedding_stream(ad, color='celltype', show=False) # X_grid='X_umap', V=V)
# model_by_log
import seaborn as sns
act_on = model_by_logdynamic[True].get_log_activities().detach().cpu().squeeze(0)
act_off = model_by_logdynamic[False].get_log_activities().detach().cpu().squeeze(0)
sns.heatmap(act_on, cmap='RdBu_r', cbar_kws={'label': 'activities'})
<Axes: >
# # highlight the top-n filters per cell, with the top variability
# rcParams['figure.dpi'] = 100
# n_show = 15
# print(act.var(axis=1).sort()[1][-n_show:])
# act_sel = act[act.var(axis=1).sort()[1][-n_show:],:]
# vmax = act_sel.abs().max()
# sns.clustermap(act_sel,
# vmin=-vmax / 2, vmax=vmax / 2,
# cmap='RdBu_r',
# cbar_kws={'label': 'activities'},
# figsize=[5, 3])
# rna_sample.layers['velocity'].shape, rna_sample.shape
# scv.pl.velocity_graph(rna_sample)
# ax = scv.pl.velocity_embedding_stream(ad,
# color='celltype',
# # density=2,
# arrow_color='black',
# n_neighbors=15) # show=False) # X_grid='X_umap', V=V)
# ax = scv.pl.velocity_embedding_stream(ad, color='celltype', density=2, arrow_color='black', n_neighbors=15) # show=False) # X_grid='X_umap', V=V)
# scv.pl.velocity_embedding_stream(ad, color='celltype', n_neighbors=15) # X_grid='X_umap', V=V)
Study the asssociations betweeen obtained weights and cluster-specific transcription factors
Load information from archetypes DB (Vierstra et al 2020)
rna_sample, ad.shape
(AnnData object with n_obs × n_vars = 7359 × 1948
obs: 'Clusters', '_X', '_Y', 'initial_size_unspliced', 'initial_size_spliced', 'initial_size', 'n_counts', 'louvain', 'clusters', 'velocity_self_transition', 'root_cells', 'end_points', 'velocity_pseudotime', 'latent_time', 'dynamic_score', 'dynamic_score_cluster', 'dynamic_score_z1', 'dynamic_score_z2', 'dynamic_score_abs', 'umap_density_dynamic_score_z1', 'umap_density_dynamic_score_z2'
var: 'Accession', 'Chromosome', 'End', 'Start', 'Strand', 'means', 'dispersions', 'dispersions_norm', 'velocity_gamma', 'velocity_r2', 'velocity_genes', 'fit_alpha', 'fit_beta', 'fit_gamma', 'fit_t_', 'fit_scaling', 'fit_std_u', 'fit_std_s', 'fit_likelihood', 'fit_u0', 'fit_s0', 'fit_pval_steady', 'fit_steady_u', 'fit_steady_s', 'fit_alignment_scaling', 'chrom', 'pos', 'strand', 'tss_start', 'tss_end', 'chromosome_name', 'k', 'acc_score', 'acc_score_rank', 'chr', 'summit.start', 'summit.end', 'k.summit'
uns: 'clusters_colors', 'louvain', 'louvain_colors', 'neighbors', 'pca', 'recover_dynamics', 'velocity_graph', 'velocity_graph_neg', 'velocity_settings', 'dynamic_score_z1_colors', 'umap_density_dynamic_score_z1_params', 'umap_density_dynamic_score_z2_params'
obsm: 'X_pca', 'X_umap', 'velocity_umap'
varm: 'PCs', 'loss'
layers: 'Ms', 'Mu', 'ambiguous', 'fit_t', 'fit_tau', 'fit_tau_', 'matrix', 'spliced', 'unspliced', 'variance_velocity', 'velocity', 'velocity_u'
obsp: 'connectivities', 'distances',
(7359, 1948))
rna_sel = rna_sample # rna[rna.obs_names.isin(ad.obs_names),:].copy()
rna_sel.shape
(7359, 1948)
pwd
'/home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell'
import bindome as bd
bd.constants.ANNOTATIONS_DIRECTORY = 'annotations'
anno = mb.datasets.archetypes_anno()
rna_sel.shape
anno.sort_values('Cluster_ID')
| Cluster_ID | Name | DBD | Seed_motif | Total_width | Consensus_left | Consensus_right | Cluster_size | |
|---|---|---|---|---|---|---|---|---|
| 61 | 1 | HD/1 | homeodomain | LHX6_homeodomain_3 | 12 | 0 | 12 | 2 |
| 72 | 2 | HD/2 | homeodomain | ALX3_MA0634.1 | 26 | 8 | 16 | 186 |
| 79 | 3 | HD/3 | homeodomain | VENTX_homeodomain_2 | 21 | 3 | 20 | 1 |
| 80 | 4 | HD/4 | homeodomain | BARX1_MOUSE.H11MO.0.C | 17 | 5 | 13 | 17 |
| 81 | 5 | HD/5 | homeodomain | BARX1_homeodomain_1 | 21 | 2 | 18 | 6 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 163 | 282 | PAX/2 | PAX | PAX5_HUMAN.H11MO.0.A | 24 | 4 | 21 | 3 |
| 161 | 283 | PAX-halfsite | PAX | Pax2_MA0067.1 | 8 | 1 | 7 | 1 |
| 0 | 284 | AHR | bHLH | AHR_HUMAN.H11MO.0.B | 9 | 2 | 8 | 3 |
| 105 | 285 | KLF/SP/3 | C2H2 | KLF8_HUMAN.H11MO.0.C | 9 | 0 | 9 | 2 |
| 285 | 286 | ZSCAN4 | C2H2 | ZSCAN4_C2H2_1 | 15 | 1 | 14 | 2 |
286 rows × 8 columns
print('here...')
here...
for optimize_log_dynamic in model_by_logdynamic:
print(optimize_log_dynamic)
model = model_by_logdynamic[optimize_log_dynamic]
log_act = torch.stack(list(model.activities.log_activities), dim=1).squeeze(0)
log_act = pd.DataFrame(log_act.detach().cpu().numpy())
# log_act.columns = anno['Seed_motif'][2]
# log_act.columns = ['intercept', 'dinuc_bias'] + list(anno['Seed_motif'].values)
log_act.index = ad.obs_names
ad.obsm['mubind_activities'] = log_act
mb.pl.set_rcParams({'figure.figsize': [5, 3], 'figure.dpi': 110})
delta = (log_act.max(axis=0) - log_act.min(axis=0))
var = log_act.var(axis=0)
plt.scatter(delta, var, color='gray', edgecolors='black')
plt.xlabel('effect size')
plt.ylabel('variability')
plt.title('TF modules (by score) | GraphLayer = %i' % optimize_log_dynamic )

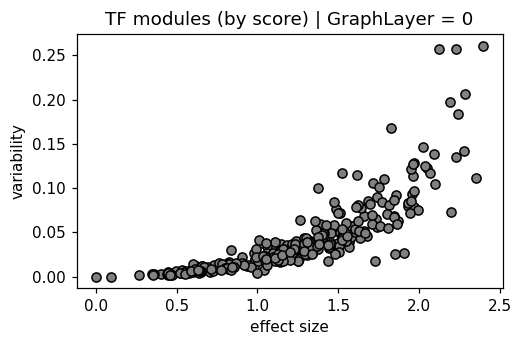

plt.show()
False
True
# unique names for annotation
names = anno['Name'] # .sort_values('Name')
added = dict()
new_name = []
for name in names:
if not name in added:
new_name.append(name)
added[name] = 0
else:
new_name.append(name + '_%i' % added[name])
added[name] += 1
anno['Name_unique'] = new_name
from scipy.stats import spearmanr
res = []
for optimize_log_dynamic in model_by_logdynamic:
if not optimize_log_dynamic:
continue
model = model_by_logdynamic[optimize_log_dynamic]
log_act = torch.stack(list(model.activities.log_activities), dim=1).squeeze(0)
log_act = pd.DataFrame(log_act.detach().cpu().numpy())
# log_act.columns = anno['Seed_motif'][2]
log_act.columns = ['intercept', 'dinuc_bias'] + list(range(1, 287))
log_act.index = ad.obs_names
ad.obsm['mubind_activities'] = log_act
mb.pl.set_rcParams({'figure.figsize': [5, 3], 'figure.dpi': 90})
delta = (log_act.max(axis=0) - log_act.min(axis=0))
var = log_act.var(axis=0)
plt.scatter(delta, var)
plt.xlabel('min-max range')
plt.ylabel('variability')
plt.title('TF modules (by score)')
plt.show()
for c in log_act:
a = log_act[c]
b = ad.obs['dynamic_score'].values
# print(a.shape, b.shape)
res.append([optimize_log_dynamic, c] + list(spearmanr(a, b)))
res = pd.DataFrame(res, columns=['opt_log_dynamic', 'archetype_id', 'spearman', 'p_val'])
# add archetypes name
meta = pd.DataFrame(pd.concat([delta, var], axis=1))
meta.columns = ['max_effect', 'variability']
meta['name'] = ['intercept', 'dinuc_bias'] + list(range(1, 287))
clu = mb.datasets.archetypes_clu()
meta['archetypes_name'] = meta['name'].map(anno.set_index('Cluster_ID')['Name_unique'])
meta['archetypes_name'] = np.where(pd.isnull(meta['archetypes_name']), meta['name'], meta['archetypes_name'])
meta['archetypes_seed'] = meta['name'].map(anno.set_index('Cluster_ID')['Seed_motif'])
meta['filter_position'] = range(0, meta.shape[0])
meta = meta.sort_values('max_effect', ascending=0)
meta
res = res.merge(meta, left_on='archetype_id', right_on='name')
res = res.sort_values('p_val', ascending=True)
name_by_filter_id = meta['archetypes_name'].to_dict()
# name_by_filter_id
Observe general scores per case
res
| opt_log_dynamic | archetype_id | spearman | p_val | max_effect | variability | name | archetypes_name | archetypes_seed | filter_position | |
|---|---|---|---|---|---|---|---|---|---|---|
| 103 | True | 102 | 0.139282 | 3.355112e-33 | 0.003247 | 2.366894e-08 | 102 | NFAT/3 | NFATC1_NFAT_2 | 103 |
| 126 | True | 125 | 0.138437 | 8.133633e-33 | 0.001896 | 6.688103e-09 | 125 | SMARCA5 | SMCA5_HUMAN.H11MO.0.C | 126 |
| 166 | True | 165 | -0.134058 | 7.351971e-31 | 0.003608 | 2.721062e-08 | 165 | RBPJ | RBPJ_MA1116.1 | 166 |
| 18 | True | 17 | -0.129317 | 8.166232e-29 | 0.005969 | 6.380463e-08 | 17 | CUX/4 | CUX2_MOUSE.H11MO.0.C | 18 |
| 63 | True | 62 | 0.124271 | 1.015061e-26 | 0.000796 | 1.534651e-09 | 62 | Ebox/CATATG | Atoh1.mouse_bHLH_1 | 63 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 181 | True | 180 | 0.003626 | 7.557977e-01 | 0.002967 | 2.802784e-08 | 180 | SIX/1 | SIX1_HUMAN.H11MO.0.A | 181 |
| 177 | True | 176 | 0.003364 | 7.729420e-01 | 0.000338 | 8.948248e-11 | 176 | PRDM16 | PRD16_MOUSE.H11MO.0.B | 177 |
| 133 | True | 132 | -0.001165 | 9.203964e-01 | 0.001180 | 2.442504e-09 | 132 | THAP1 | THAP1_MA0597.1 | 133 |
| 170 | True | 169 | -0.000909 | 9.378249e-01 | 0.003005 | 1.881324e-08 | 169 | BCL6/1 | BCL6B_C2H2_1 | 170 |
| 51 | True | 50 | 0.000594 | 9.594010e-01 | 0.001429 | 7.456526e-09 | 50 | CREB/ATF/2 | ATF7_MA0834.1 | 51 |
288 rows × 10 columns
rcParams['figure.figsize'] =3, 5

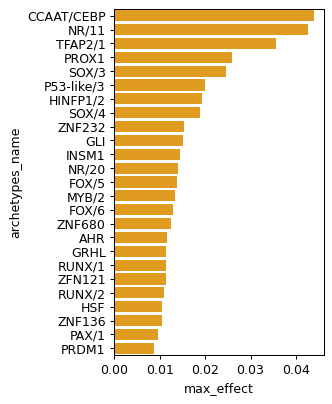

sns.barplot(data=res.sort_values('max_effect', ascending=False).head(25), x='max_effect', y='archetypes_name', color='orange')
<Axes: xlabel='max_effect', ylabel='archetypes_name'>
res
| opt_log_dynamic | archetype_id | spearman | p_val | max_effect | variability | name | archetypes_name | archetypes_seed | filter_position | |
|---|---|---|---|---|---|---|---|---|---|---|
| 103 | True | 102 | 0.139282 | 3.355112e-33 | 0.003247 | 2.366894e-08 | 102 | NFAT/3 | NFATC1_NFAT_2 | 103 |
| 126 | True | 125 | 0.138437 | 8.133633e-33 | 0.001896 | 6.688103e-09 | 125 | SMARCA5 | SMCA5_HUMAN.H11MO.0.C | 126 |
| 166 | True | 165 | -0.134058 | 7.351971e-31 | 0.003608 | 2.721062e-08 | 165 | RBPJ | RBPJ_MA1116.1 | 166 |
| 18 | True | 17 | -0.129317 | 8.166232e-29 | 0.005969 | 6.380463e-08 | 17 | CUX/4 | CUX2_MOUSE.H11MO.0.C | 18 |
| 63 | True | 62 | 0.124271 | 1.015061e-26 | 0.000796 | 1.534651e-09 | 62 | Ebox/CATATG | Atoh1.mouse_bHLH_1 | 63 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 181 | True | 180 | 0.003626 | 7.557977e-01 | 0.002967 | 2.802784e-08 | 180 | SIX/1 | SIX1_HUMAN.H11MO.0.A | 181 |
| 177 | True | 176 | 0.003364 | 7.729420e-01 | 0.000338 | 8.948248e-11 | 176 | PRDM16 | PRD16_MOUSE.H11MO.0.B | 177 |
| 133 | True | 132 | -0.001165 | 9.203964e-01 | 0.001180 | 2.442504e-09 | 132 | THAP1 | THAP1_MA0597.1 | 133 |
| 170 | True | 169 | -0.000909 | 9.378249e-01 | 0.003005 | 1.881324e-08 | 169 | BCL6/1 | BCL6B_C2H2_1 | 170 |
| 51 | True | 50 | 0.000594 | 9.594010e-01 | 0.001429 | 7.456526e-09 | 50 | CREB/ATF/2 | ATF7_MA0834.1 | 51 |
288 rows × 10 columns

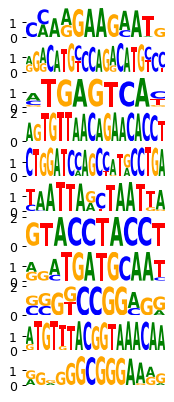

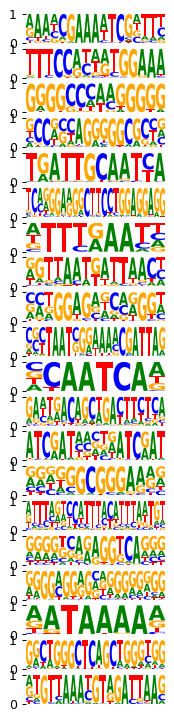

# visualize the logos as obtained by the model in each step
mb.pl.set_rcParams({'figure.figsize': [5, 20], 'figure.dpi': 90})
mb.pl.logo(model, title=False, xticks=False, rowspan_dinuc=0, rowspan_mono=1, n_rows=40, n_cols=1, stop_at=20)
# n_rows=len(res.head(20).index),
break
mb.pl.set_rcParams({'figure.figsize': [2, 20], 'figure.dpi': 90})
mb.pl.logo(model, title=False, xticks=False, rowspan_dinuc=0, rowspan_mono=1, n_rows=40,
# n_rows=len(res.head(20).index),
n_cols=1, order=res.head(20).index) # n_cols=len(reduced_groups))
plt.tight_layout()
plt.show()
<Figure size 180x1800 with 0 Axes>
import resource
print('total GB used:', resource.getrusage(resource.RUSAGE_SELF).ru_maxrss / 1e6)
total GB used: 6.952268
# for k in ad.obsm['log_activities'].iloc[:,2:]:
# ad.obs[str(k)] = ad.obsm['log_activities'][k]
# sc.pl.umap(ad, color=map(str, ad.obsm['log_activities'].iloc[:,2:]), cmap='Reds')
rna_sel.obsm['X_umap'] = ad.obsm['X_umap']
vars_mapper = {}
def find_varname(ad, k, shuffle=False, ):
if not shuffle:
if k in vars_mapper:
return vars_mapper[k]
else:
result = ad.var_names[ad.var_names.str.upper().str.startswith(k.upper())]
vars_mapper[k] = result
return result
else:
ad_sel = ad.var_names[ad.var_names.str.upper().str.startswith(k.upper())]
return pd.Series(ad.var_names).sample(ad_sel.shape[0]).values
from scipy.stats import spearmanr, pearsonr
Calculate global correlations between the activities obtained per motif and gene-specific expression
all_targets = set()
for optimize_log_dynamic in model_by_logdynamic:
print(optimize_log_dynamic)
model = model_by_logdynamic[optimize_log_dynamic]
log_act = torch.stack(list(model.activities.log_activities), dim=1).squeeze(0)
log_act = pd.DataFrame(log_act.detach().cpu().numpy())
log_act.index = ad.obs_names
ad.obsm['log_activities'] = log_act
ad.obsm['log_activities'].columns = ['intercept', 'dinuc_bias'] + list(range(1, 287))
# collect all targets
for k in ad.obsm['log_activities'].iloc[:,2:]:
log_act = ad.obsm['log_activities'][k].values
names = set()
clu_sel = clu[clu['Cluster_ID'] == k]['Motif']
for g in clu_sel:
names.add(g.split('_')[0].split('.')[0].split('+')[0].upper())
for g in anno[anno['Cluster_ID'] == k]['Seed_motif']:
names.add(g.split('_')[0].split('.')[0])
# print(k, names)
targets = set()
for name in names:
target = find_varname(rna_sel, name)
for t in target:
all_targets.add(t)
if len(targets) > 0 and False:
sc.pl.umap(rna_sel, color=targets, cmap='Reds')
False
True
def get_act_gene_corr(model_by_logdynamic, shuffle=False, random_state=0):
print('association between motif activities and related TF targets (shuffle = %i)' % shuffle)
res = []
# print(len(all_targets))
rna_sel_df = rna_sel.to_df()
for optimize_log_dynamic in model_by_logdynamic:
print('use GraphLayer = %i' % optimize_log_dynamic)
model = model_by_logdynamic[optimize_log_dynamic]
log_act = torch.stack(list(model.activities.log_activities), dim=1).squeeze(0)
log_act = pd.DataFrame(log_act.detach().cpu().numpy())
log_act.index = ad.obs_names
ad.obsm['log_activities'] = log_act
ad.obsm['log_activities'].columns = ['intercept', 'dinuc_bias'] + list(range(1, 287))
if shuffle:
random_cols = ad.obsm['log_activities'].iloc[:,2:].columns.values
np.random.shuffle(random_cols)
# random_cols
for ki, k in enumerate(ad.obsm['log_activities'].iloc[:,2:]):
next_log_act = ad.obsm['log_activities'][k].values
# if shuffle:
# next_log_act = ad.obsm['log_activities'][random_cols[ki]].values
# print(ki)
# if ki % 30 == 0:
# print(ki)
names = set()
clu_sel = clu[clu['Cluster_ID'] == k]['Motif']
for g in clu_sel:
names.add(g.split('_')[0].split('.')[0].split('+')[0].upper())
for g in anno[anno['Cluster_ID'] == k]['Seed_motif']:
names.add(g.split('_')[0].split('.')[0])
# print(k, names)
next_targets = set()
for name in names:
target = find_varname(rna_sel, name, shuffle=shuffle)
# print(name, target)
for t in target:
next_targets.add(t)
# for t in all_targets:
for t in set(all_targets).intersection(next_targets):
gex = rna_sel_df[[t]].to_numpy() # rna_sel_df[t].A
assert gex.shape[1] == 1
gex = gex.flatten()
# print(next_log_act.shape, gex.shape)
# print(t, pearsonr(next_log_act, gex))
res.append([ki, optimize_log_dynamic, k, t, t in next_targets] +
list(spearmanr(next_log_act, gex)))
res = pd.DataFrame(res, columns=['filter_id', 'opt_log_dynamic', 'archetype_id', 'gene_name', 'matched', 'spearman', 'p_val'])
# p-values
res['module_name'] = res['archetype_id'].map(anno.set_index('Cluster_ID')['Name'].to_dict())
res['p_val'] = np.where(pd.isnull(res['p_val']), 1.0, res['p_val'])
# p-val adjust
from statsmodels.stats.multitest import fdrcorrection
res['p_adj'] = fdrcorrection(res['p_val'])[1]
return res
%load_ext line_profiler
The line_profiler extension is already loaded. To reload it, use:
%reload_ext line_profiler
%lprun -f get_act_gene_corr get_act_gene_corr(model_by_logdynamic, shuffle=0)
association between motif activities and related TF targets (shuffle = 0)
use GraphLayer = 0
use GraphLayer = 1
Timer unit: 1e-09 s
Total time: 1.51881 s
File: /tmp/ipykernel_24341/1219755437.py
Function: get_act_gene_corr at line 1
Line # Hits Time Per Hit % Time Line Contents
==============================================================
1 def get_act_gene_corr(model_by_logdynamic, shuffle=False, random_state=0):
2 1 182188.0 182188.0 0.0 print('association between motif activities and related TF targets (shuffle = %i)' % shuffle)
3 1 524.0 524.0 0.0 res = []
4 # print(len(all_targets))
5
6 1 24576172.0 2e+07 1.6 rna_sel_df = rna_sel.to_df()
7
8 3 2161.0 720.3 0.0 for optimize_log_dynamic in model_by_logdynamic:
9 2 122402.0 61201.0 0.0 print('use GraphLayer = %i' % optimize_log_dynamic)
10 2 653.0 326.5 0.0 model = model_by_logdynamic[optimize_log_dynamic]
11
12 2 934309.0 467154.5 0.1 log_act = torch.stack(list(model.activities.log_activities), dim=1).squeeze(0)
13 2 3995641.0 2e+06 0.3 log_act = pd.DataFrame(log_act.detach().cpu().numpy())
14 2 30954.0 15477.0 0.0 log_act.index = ad.obs_names
15
16 2 443862.0 221931.0 0.0 ad.obsm['log_activities'] = log_act
17 2 217634.0 108817.0 0.0 ad.obsm['log_activities'].columns = ['intercept', 'dinuc_bias'] + list(range(1, 287))
18
19 2 303.0 151.5 0.0 if shuffle:
20 random_cols = ad.obsm['log_activities'].iloc[:,2:].columns.values
21 np.random.shuffle(random_cols)
22 # random_cols
23
24 574 514886.0 897.0 0.0 for ki, k in enumerate(ad.obsm['log_activities'].iloc[:,2:]):
25 572 16759059.0 29299.1 1.1 next_log_act = ad.obsm['log_activities'][k].values
26
27 # if shuffle:
28 # next_log_act = ad.obsm['log_activities'][random_cols[ki]].values
29
30 # print(ki)
31 # if ki % 30 == 0:
32 # print(ki)
33 572 244805.0 428.0 0.0 names = set()
34 572 114406283.0 200011.0 7.5 clu_sel = clu[clu['Cluster_ID'] == k]['Motif']
35 4920 2321589.0 471.9 0.2 for g in clu_sel:
36 4348 2313461.0 532.1 0.2 names.add(g.split('_')[0].split('.')[0].split('+')[0].upper())
37 1144 107471941.0 93944.0 7.1 for g in anno[anno['Cluster_ID'] == k]['Seed_motif']:
38 572 506243.0 885.0 0.0 names.add(g.split('_')[0].split('.')[0])
39 # print(k, names)
40 572 231518.0 404.8 0.0 next_targets = set()
41 2722 466815.0 171.5 0.0 for name in names:
42 2150 1346522.0 626.3 0.1 target = find_varname(rna_sel, name, shuffle=shuffle)
43 # print(name, target)
44 2866 2447143.0 853.9 0.2 for t in target:
45 716 129145.0 180.4 0.0 next_targets.add(t)
46
47 # for t in all_targets:
48 1272 3323482.0 2612.8 0.2 for t in set(all_targets).intersection(next_targets):
49 700 230856588.0 329795.1 15.2 gex = rna_sel_df[[t]].to_numpy() # rna_sel_df[t].A
50 700 357233.0 510.3 0.0 assert gex.shape[1] == 1
51 700 2195914.0 3137.0 0.1 gex = gex.flatten()
52 # print(next_log_act.shape, gex.shape)
53 # print(t, pearsonr(next_log_act, gex))
54 1400 726879.0 519.2 0.0 res.append([ki, optimize_log_dynamic, k, t, t in next_targets] +
55 700 994585303.0 1e+06 65.5 list(spearmanr(next_log_act, gex)))
56
57 1 611219.0 611219.0 0.0 res = pd.DataFrame(res, columns=['filter_id', 'opt_log_dynamic', 'archetype_id', 'gene_name', 'matched', 'spearman', 'p_val'])
58
59 # p-values
60 1 976655.0 976655.0 0.1 res['module_name'] = res['archetype_id'].map(anno.set_index('Cluster_ID')['Name'].to_dict())
61 1 195127.0 195127.0 0.0 res['p_val'] = np.where(pd.isnull(res['p_val']), 1.0, res['p_val'])
62
63 # p-val adjust
64 1 4911219.0 5e+06 0.3 from statsmodels.stats.multitest import fdrcorrection
65 1 402807.0 402807.0 0.0 res['p_adj'] = fdrcorrection(res['p_val'])[1]
66 1 120.0 120.0 0.0 return res
res = get_act_gene_corr(model_by_logdynamic)
shuffled = [get_act_gene_corr(model_by_logdynamic, shuffle=1, random_state=i) for i in range(10)]
association between motif activities and related TF targets (shuffle = 0)
use GraphLayer = 0
use GraphLayer = 1
association between motif activities and related TF targets (shuffle = 1)
use GraphLayer = 0
use GraphLayer = 1
association between motif activities and related TF targets (shuffle = 1)
use GraphLayer = 0
use GraphLayer = 1
association between motif activities and related TF targets (shuffle = 1)
use GraphLayer = 0
use GraphLayer = 1
association between motif activities and related TF targets (shuffle = 1)
use GraphLayer = 0
use GraphLayer = 1
association between motif activities and related TF targets (shuffle = 1)
use GraphLayer = 0
use GraphLayer = 1
association between motif activities and related TF targets (shuffle = 1)
use GraphLayer = 0
use GraphLayer = 1
association between motif activities and related TF targets (shuffle = 1)
use GraphLayer = 0
use GraphLayer = 1
association between motif activities and related TF targets (shuffle = 1)
use GraphLayer = 0
use GraphLayer = 1
association between motif activities and related TF targets (shuffle = 1)
use GraphLayer = 0
use GraphLayer = 1
association between motif activities and related TF targets (shuffle = 1)
use GraphLayer = 0
use GraphLayer = 1
table = []
for use_graph in [False, True]:
for thr in range(1, 10):
sel = res[res['opt_log_dynamic'] == use_graph]
next_thr = 10 ** (-thr)
n_pos = sel[sel['p_adj'] < next_thr].shape[0]
n_neg = [s[(s['p_adj'] < next_thr) & (s['opt_log_dynamic'] == use_graph)].shape[0] for s in shuffled]
# print(next_thr, n_pos, np.mean(n_neg), np.std(n_neg), (n_pos - np.mean(n_neg)) / np.std(n_neg))
table.append([next_thr, n_pos, np.mean(n_neg), np.std(n_neg), (n_pos - np.mean(n_neg)) / np.std(n_neg), use_graph])
table = pd.DataFrame(table, columns=['p_adj_thr', 'n_pos', 'mu', 'sigma', 'zscore', 'graph_layer'])
table.pivot(index='graph_layer', columns='p_adj_thr', values='zscore')
| p_adj_thr | 1.000000e-09 | 1.000000e-08 | 1.000000e-07 | 1.000000e-06 | 1.000000e-05 | 1.000000e-04 | 1.000000e-03 | 1.000000e-02 | 1.000000e-01 |
|---|---|---|---|---|---|---|---|---|---|
| graph_layer | |||||||||
| False | 43.172477 | 42.862832 | 42.570044 | 42.494349 | 43.145921 | 43.046541 | 39.875000 | 39.599274 | 38.265423 |
| True | 18.032126 | 22.626105 | 20.713755 | 20.594524 | 22.479719 | 30.691892 | 36.402467 | 34.208363 | 42.635843 |
rcParams['figure.figsize'] = 4, 1
hm = table.pivot(index='graph_layer', columns='p_adj_thr', values='n_pos').fillna(0)
z = table.pivot(index='graph_layer', columns='p_adj_thr', values='zscore').fillna(0)
sns.heatmap(z, annot=hm, fmt='', cmap='Blues', cbar_kws={'label': 'Z-score\n(permutations)'},
vmin=9,
vmax=50)

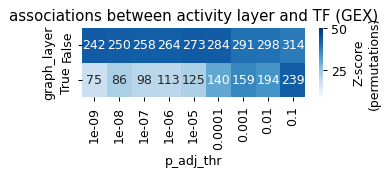

plt.title('associations between activity layer and TF (GEX)')
Text(0.5, 1.0, 'associations between activity layer and TF (GEX)')
cumulative = np.cumsum(res.sort_values('p_adj')['p_adj']) / 100
plt.plot(range(len(cumulative)), cumulative[::-1])
[<matplotlib.lines.Line2D at 0x708177124400>]
shuffled[0].sort_values('p_val')
| filter_id | opt_log_dynamic | archetype_id | gene_name | matched | spearman | p_val | module_name | p_adj | |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 95 | False | 8 | Scrt1 | True | -0.448074 | 0.000000e+00 | HD/8 | 0.000000e+00 |
| 34 | 257 | False | 54 | Tpm4 | True | -0.413388 | 9.271101e-302 | AP1/1 | 4.403773e-300 |
| 22 | 216 | False | 70 | Tk1 | True | -0.378365 | 3.646135e-249 | TBX/1 | 1.154609e-247 |
| 36 | 257 | False | 54 | Zeb1 | True | -0.321987 | 4.015730e-177 | AP1/1 | 9.537358e-176 |
| 31 | 221 | False | 53 | Arhgap11a | True | -0.309905 | 1.477263e-163 | AP1/2 | 2.806799e-162 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 13 | 195 | False | 248 | Tubb2a | True | -0.002399 | 8.369483e-01 | NR/20 | 8.737372e-01 |
| 41 | 27 | True | 203 | Glis2 | True | -0.002243 | 8.474755e-01 | FOX/8 | 8.751106e-01 |
| 67 | 196 | True | 2 | Arnt2 | True | -0.001967 | 8.660415e-01 | HD/2 | 8.846660e-01 |
| 62 | 173 | True | 32 | Tspan11 | True | -0.001081 | 9.261391e-01 | NR/3 | 9.359916e-01 |
| 53 | 91 | True | 273 | Trim3 | True | -0.000737 | 9.495875e-01 | ZIC | 9.495875e-01 |
95 rows × 9 columns
res.sort_values('p_adj')
| filter_id | opt_log_dynamic | archetype_id | gene_name | matched | spearman | p_val | module_name | p_adj | |
|---|---|---|---|---|---|---|---|---|---|
| 349 | 280 | False | 281 | Pax6 | True | -0.565214 | 0.000000 | PAX/1 | 0.000000 |
| 177 | 69 | False | 70 | Tagln3 | True | -0.554236 | 0.000000 | TBX/1 | 0.000000 |
| 175 | 69 | False | 70 | Ttc3 | True | -0.484895 | 0.000000 | TBX/1 | 0.000000 |
| 174 | 69 | False | 70 | Tmsb4x | True | -0.476951 | 0.000000 | TBX/1 | 0.000000 |
| 169 | 69 | False | 70 | Ttyh1 | True | 0.522790 | 0.000000 | TBX/1 | 0.000000 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 509 | 69 | True | 70 | Tor1b | True | 0.000547 | 0.962586 | TBX/1 | 0.968118 |
| 580 | 69 | True | 70 | Tmem132c | True | 0.000217 | 0.985119 | TBX/1 | 0.989359 |
| 77 | 57 | False | 58 | Mitf | True | 0.000195 | 0.986676 | Ebox/CACGTG/1 | 0.989504 |
| 635 | 127 | True | 128 | Nfia | True | 0.000143 | 0.990214 | NFI/3 | 0.991630 |
| 518 | 69 | True | 70 | Thrb | True | 0.000102 | 0.993010 | TBX/1 | 0.993010 |
700 rows × 9 columns
from statsmodels.stats.multitest import fdrcorrection
res['p_adj'] = fdrcorrection(res['p_val'])[1]
# res[res['p_adj'] < 0.1]
genes_by_module_name = res.groupby(['module_name'])['gene_name'].apply(lambda grp: list(grp.value_counts().index)).to_dict()
# genes_by_module_name
res.sort_values('p_adj')
| filter_id | opt_log_dynamic | archetype_id | gene_name | matched | spearman | p_val | module_name | p_adj | |
|---|---|---|---|---|---|---|---|---|---|
| 349 | 280 | False | 281 | Pax6 | True | -0.565214 | 0.000000 | PAX/1 | 0.000000 |
| 177 | 69 | False | 70 | Tagln3 | True | -0.554236 | 0.000000 | TBX/1 | 0.000000 |
| 175 | 69 | False | 70 | Ttc3 | True | -0.484895 | 0.000000 | TBX/1 | 0.000000 |
| 174 | 69 | False | 70 | Tmsb4x | True | -0.476951 | 0.000000 | TBX/1 | 0.000000 |
| 169 | 69 | False | 70 | Ttyh1 | True | 0.522790 | 0.000000 | TBX/1 | 0.000000 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 509 | 69 | True | 70 | Tor1b | True | 0.000547 | 0.962586 | TBX/1 | 0.968118 |
| 580 | 69 | True | 70 | Tmem132c | True | 0.000217 | 0.985119 | TBX/1 | 0.989359 |
| 77 | 57 | False | 58 | Mitf | True | 0.000195 | 0.986676 | Ebox/CACGTG/1 | 0.989504 |
| 635 | 127 | True | 128 | Nfia | True | 0.000143 | 0.990214 | NFI/3 | 0.991630 |
| 518 | 69 | True | 70 | Thrb | True | 0.000102 | 0.993010 | TBX/1 | 0.993010 |
700 rows × 9 columns
res['k'] = res['gene_name'] + '_' + res['archetype_id'].astype(str)
df2 = res.pivot(index='k', columns='opt_log_dynamic', values='spearman')
# df2 = res # .pivot(index='k', columns='opt_log_dynamic', values='spearman')
df2
| opt_log_dynamic | False | True |
|---|---|---|
| k | ||
| Arap2_248 | 0.050344 | 0.032765 |
| Arfgef3_248 | 0.194122 | 0.083080 |
| Arg2_248 | 0.174381 | 0.030984 |
| Arhgap11a_248 | -0.396027 | -0.015390 |
| Arhgap20_248 | 0.092057 | 0.035744 |
| ... | ... | ... |
| Zeb1_68 | -0.061055 | 0.016079 |
| Zic1_110 | -0.065828 | 0.019893 |
| Zic1_273 | -0.013335 | 0.005078 |
| Zic2_273 | -0.072651 | 0.022927 |
| Zic4_273 | -0.008062 | -0.017463 |
350 rows × 2 columns
mb.pl.set_rcParams({'figure.figsize': [5, 4], 'figure.dpi': 120})
# df2 = df2.sort_values('matched', ascending=True)
# plt.scatter(df2[True], df2[True],
# color=np.where(df2['matched'], 'blue', 'gray'),
# s=np.where(df2['matched'], 30, 5))
# plt.xlabel('TF activity (graph = off)')
# plt.ylabel('TF activity (graph = on)')
# plt.axhline(0, color='gray', ls='--', zorder=0)
# plt.axvline(0, color='gray', ls='--', zorder=0)
# df2[df2['matched'] == True].sort_values(True, ascending=False)
# res['arch_name'] = name_by_filter_id
res.sort_values('p_adj')
| filter_id | opt_log_dynamic | archetype_id | gene_name | matched | spearman | p_val | module_name | p_adj | k | |
|---|---|---|---|---|---|---|---|---|---|---|
| 349 | 280 | False | 281 | Pax6 | True | -0.565214 | 0.000000 | PAX/1 | 0.000000 | Pax6_281 |
| 177 | 69 | False | 70 | Tagln3 | True | -0.554236 | 0.000000 | TBX/1 | 0.000000 | Tagln3_70 |
| 175 | 69 | False | 70 | Ttc3 | True | -0.484895 | 0.000000 | TBX/1 | 0.000000 | Ttc3_70 |
| 174 | 69 | False | 70 | Tmsb4x | True | -0.476951 | 0.000000 | TBX/1 | 0.000000 | Tmsb4x_70 |
| 169 | 69 | False | 70 | Ttyh1 | True | 0.522790 | 0.000000 | TBX/1 | 0.000000 | Ttyh1_70 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 509 | 69 | True | 70 | Tor1b | True | 0.000547 | 0.962586 | TBX/1 | 0.968118 | Tor1b_70 |
| 580 | 69 | True | 70 | Tmem132c | True | 0.000217 | 0.985119 | TBX/1 | 0.989359 | Tmem132c_70 |
| 77 | 57 | False | 58 | Mitf | True | 0.000195 | 0.986676 | Ebox/CACGTG/1 | 0.989504 | Mitf_58 |
| 635 | 127 | True | 128 | Nfia | True | 0.000143 | 0.990214 | NFI/3 | 0.991630 | Nfia_128 |
| 518 | 69 | True | 70 | Thrb | True | 0.000102 | 0.993010 | TBX/1 | 0.993010 | Thrb_70 |
700 rows × 10 columns
rcParams['figure.figsize'] = 4, 4
rcParams['figure.dpi'] = 90

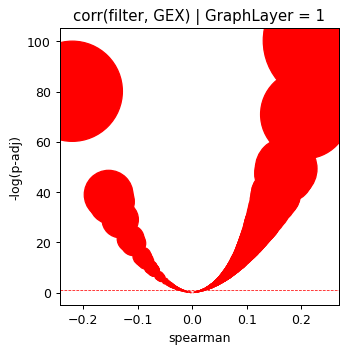

for optimize_log_dynamic, grp in res.groupby('opt_log_dynamic'):
grp['minus_log10_pval'] = -np.log10(grp['p_val'])
grp = grp.sort_values('matched')
plt.scatter(grp['spearman'], grp['minus_log10_pval'],
s=np.power(grp['minus_log10_pval'], 2), color=np.where(grp['matched'], 'red', 'blue'))
plt.ylabel('-log(p-adj)')
plt.xlabel('spearman')
plt.title('corr(filter, GEX) | GraphLayer = %i' % optimize_log_dynamic)
plt.axhline(1, ls='--', color='red', lw=0.6)
plt.show()
sns.histplot(grp['spearman'])
<Axes: xlabel='spearman', ylabel='Count'>
# sc.pl.umap(ad, color=[96], cmap='RdBu_r')
# sc.pl.umap(rna_sel, color=['Ehf', 'Ergic2'], cmap='plasma')
rcParams['figure.figsize'] = 3, 3
rcParams['figure.dpi'] = 90
plt.hist(res['p_val'], color='gray', bins=20, label='raw', alpha=.5, edgecolor = 'black')
plt.hist(res['p_adj'], color='red', bins=20, label='adjusted (BH)', alpha=.5, edgecolor = 'black')
plt.xlabel('p-value')
plt.legend()
plt.ylabel('# associations')
Text(0, 0.5, '# associations')
res[res['p_adj'] < 0.05]
| filter_id | opt_log_dynamic | archetype_id | gene_name | matched | spearman | p_val | module_name | p_adj | k | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | False | 1 | Lhx6 | True | -0.087736 | 4.712331e-14 | HD/1 | 1.186558e-13 | Lhx6_1 |
| 1 | 1 | False | 2 | Pou6f2 | True | -0.025458 | 2.897336e-02 | HD/2 | 3.855770e-02 | Pou6f2_2 |
| 2 | 1 | False | 2 | Lhx9 | True | -0.051279 | 1.076960e-05 | HD/2 | 1.861412e-05 | Lhx9_2 |
| 3 | 1 | False | 2 | Emx2 | True | 0.417677 | 1.202446e-308 | HD/2 | 1.957471e-307 | Emx2_2 |
| 4 | 1 | False | 2 | Arx | True | 0.442665 | 0.000000e+00 | HD/2 | 0.000000e+00 | Arx_2 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 690 | 247 | True | 248 | Arap2 | True | 0.032765 | 4.939153e-03 | NR/20 | 7.099398e-03 | Arap2_248 |
| 691 | 248 | True | 249 | Hsf2 | True | 0.045000 | 1.126444e-04 | HSF | 1.833745e-04 | Hsf2_249 |
| 693 | 261 | True | 262 | Gli3 | True | 0.111026 | 1.269628e-21 | GLI | 3.847356e-21 | Gli3_262 |
| 694 | 262 | True | 263 | Tfap2c | True | 0.064515 | 3.037541e-08 | TFAP2/2 | 6.075081e-08 | Tfap2c_263 |
| 695 | 263 | True | 264 | Tfap2c | True | 0.026947 | 2.079786e-02 | TFAP2/1 | 2.805106e-02 | Tfap2c_264 |
534 rows × 10 columns
pval_thr = 1e-5
sel_genes = set(list(res[res['p_adj'] < pval_thr]['gene_name']))
log_act = ad.obsm['log_activities'].copy()
cols_act = ['intercept', 'dinuc_bias'] + [name_by_filter_id[k] for k in log_act.columns[2:]]
log_act.columns = cols_act
import anndata
ad_act = anndata.AnnData(log_act)
ad_act.obsm['X_umap'] = ad.obsm['X_umap']
ad_act.obs = ad.obs
sc.pl.umap(ad_act, color=cell_type_key)
Rank genes groups using the annotation
sc.tl.rank_genes_groups(ad_act, cell_type_key)
rkg_df = []
for ct in ad_act.obs[cell_type_key].values.unique():
print(ct)
rkg_df2 = sc.get.rank_genes_groups_df(ad_act, ct)
rkg_df2[cell_type_key] = ct
rkg_df.append(rkg_df2)
rkg_df = pd.concat(rkg_df)
rkg_df['module_name'] = rkg_df['names'].map(anno.set_index('Cluster_ID')['Name'].to_dict())
rkg_df['module_name'] = np.where(~pd.isnull(rkg_df['module_name']), rkg_df['module_name'], rkg_df['names'])
rkg_df.head()
NSC_M
N1
IPC
NSC
IPC_M
N2
CR
HC
IN
| names | scores | logfoldchanges | pvals | pvals_adj | clusters | module_name | |
|---|---|---|---|---|---|---|---|
| 0 | ZKSCAN1 | 21.499275 | NaN | 6.172890e-84 | 1.777792e-81 | NSC_M | ZKSCAN1 |
| 1 | OVOL1 | 21.026897 | NaN | 4.155369e-81 | 5.983731e-79 | NSC_M | OVOL1 |
| 2 | SIX/2 | 20.639223 | NaN | 1.388494e-78 | 1.332954e-76 | NSC_M | SIX/2 |
| 3 | ZNF28 | 20.028900 | NaN | 5.744338e-75 | 4.135924e-73 | NSC_M | ZNF28 |
| 4 | POU/1 | 20.026346 | NaN | 1.253743e-74 | 5.512854e-73 | NSC_M | POU/1 |
Get top modules
ad_act.var_names = ad_act.var_names.map(rkg_df.set_index('names')['module_name'].to_dict())
sc.tl.rank_genes_groups(ad_act, cell_type_key)
rcParams['figure.figsize'] = 3.5, 3.5
rcParams['figure.dpi'] = 80

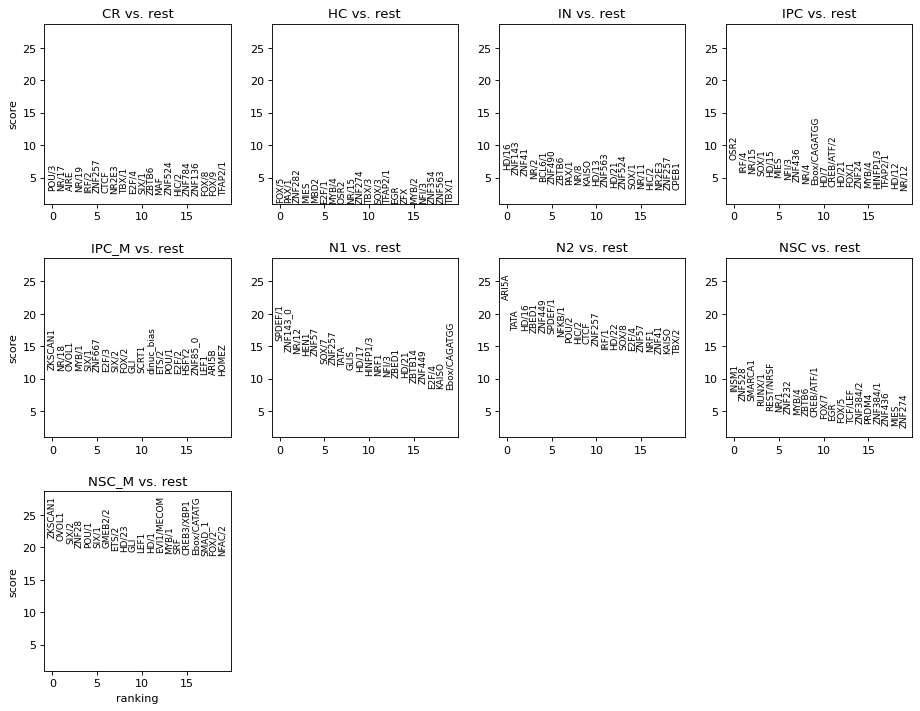

sc.pl.rank_genes_groups(ad_act)
# set(res[(res['p_adj'] < 1e-5)]['k'])
res[res['module_name'].str.contains('HD')].sort_values('p_adj')
| filter_id | opt_log_dynamic | archetype_id | gene_name | matched | spearman | p_val | module_name | p_adj | k | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 1 | False | 2 | Arx | True | 0.442665 | 0.000000e+00 | HD/2 | 0.000000e+00 | Arx_2 |
| 3 | 1 | False | 2 | Emx2 | True | 0.417677 | 1.202446e-308 | HD/2 | 1.957471e-307 | Emx2_2 |
| 14 | 7 | False | 8 | Arx | True | 0.338170 | 2.673819e-196 | HD/8 | 2.529289e-195 | Arx_8 |
| 25 | 24 | False | 25 | Otx1 | True | 0.287126 | 1.145098e-139 | HD/19 | 8.015689e-139 | Otx1_25 |
| 5 | 1 | False | 2 | Lhx2 | True | 0.203768 | 8.111656e-70 | HD/2 | 3.785439e-69 | Lhx2_2 |
| 15 | 11 | False | 12 | Pbx3 | True | 0.107847 | 1.741761e-20 | HD/12 | 5.101392e-20 | Pbx3_12 |
| 375 | 24 | True | 25 | Otx1 | True | 0.095321 | 2.519745e-16 | HD/19 | 6.706546e-16 | Otx1_25 |
| 12 | 6 | False | 7 | Emx1 | True | -0.089355 | 1.599046e-14 | HD/7 | 4.100117e-14 | Emx1_7 |
| 0 | 0 | False | 1 | Lhx6 | True | -0.087736 | 4.712331e-14 | HD/1 | 1.186558e-13 | Lhx6_1 |
| 353 | 1 | True | 2 | Emx2 | True | 0.086231 | 1.264470e-13 | HD/2 | 3.138755e-13 | Emx2_2 |
| 364 | 7 | True | 8 | Arx | True | 0.084481 | 3.901094e-13 | HD/8 | 9.548132e-13 | Arx_8 |
| 358 | 1 | True | 2 | Dlx2 | True | -0.076006 | 6.644946e-11 | HD/2 | 1.515134e-10 | Dlx2_2 |
| 9 | 1 | False | 2 | Dlx1 | True | -0.075870 | 7.185656e-11 | HD/2 | 1.633104e-10 | Dlx1_2 |
| 8 | 1 | False | 2 | Dlx2 | True | -0.075378 | 9.521906e-11 | HD/2 | 2.150108e-10 | Dlx2_2 |
| 13 | 6 | False | 7 | Emx2 | True | -0.072867 | 3.896794e-10 | HD/7 | 8.659543e-10 | Emx2_7 |
| 359 | 1 | True | 2 | Dlx1 | True | -0.071776 | 7.085803e-10 | HD/2 | 1.554878e-09 | Dlx1_2 |
| 356 | 1 | True | 2 | Lhx6 | True | -0.071258 | 9.382253e-10 | HD/2 | 2.033306e-09 | Lhx6_2 |
| 6 | 1 | False | 2 | Lhx6 | True | -0.067680 | 6.188324e-09 | HD/2 | 1.277825e-08 | Lhx6_2 |
| 365 | 11 | True | 12 | Pbx3 | True | 0.061053 | 1.593298e-07 | HD/12 | 3.030729e-07 | Pbx3_12 |
| 350 | 0 | True | 1 | Lhx6 | True | -0.060752 | 1.832731e-07 | HD/1 | 3.476726e-07 | Lhx6_1 |
| 362 | 6 | True | 7 | Emx1 | True | -0.058989 | 4.107983e-07 | HD/7 | 7.709351e-07 | Emx1_7 |
| 361 | 1 | True | 2 | Dlx5 | True | -0.057247 | 8.916844e-07 | HD/2 | 1.633977e-06 | Dlx5_2 |
| 2 | 1 | False | 2 | Lhx9 | True | -0.051279 | 1.076960e-05 | HD/2 | 1.861412e-05 | Lhx9_2 |
| 360 | 1 | True | 2 | Emx1 | True | -0.041471 | 3.729508e-04 | HD/2 | 5.853489e-04 | Emx1_2 |
| 376 | 25 | True | 26 | Otx1 | True | -0.039517 | 6.971208e-04 | HD/20 | 1.079612e-03 | Otx1_26 |
| 354 | 1 | True | 2 | Arx | True | 0.034019 | 3.515226e-03 | HD/2 | 5.126372e-03 | Arx_2 |
| 11 | 1 | False | 2 | Dlx5 | True | -0.029789 | 1.060204e-02 | HD/2 | 1.475433e-02 | Dlx5_2 |
| 1 | 1 | False | 2 | Pou6f2 | True | -0.025458 | 2.897336e-02 | HD/2 | 3.855770e-02 | Pou6f2_2 |
| 363 | 6 | True | 7 | Emx2 | True | 0.024577 | 3.500362e-02 | HD/7 | 4.605740e-02 | Emx2_7 |
| 10 | 1 | False | 2 | Emx1 | True | -0.022922 | 4.926321e-02 | HD/2 | 6.397820e-02 | Emx1_2 |
| 355 | 1 | True | 2 | Lhx2 | True | 0.021151 | 6.963238e-02 | HD/2 | 8.910908e-02 | Lhx2_2 |
| 357 | 1 | True | 2 | Lmx1a | True | -0.020188 | 8.333184e-02 | HD/2 | 1.049142e-01 | Lmx1a_2 |
| 352 | 1 | True | 2 | Lhx9 | True | 0.006688 | 5.662073e-01 | HD/2 | 6.154427e-01 | Lhx9_2 |
| 26 | 25 | False | 26 | Otx1 | True | 0.006461 | 5.794501e-01 | HD/20 | 6.288606e-01 | Otx1_26 |
| 351 | 1 | True | 2 | Pou6f2 | True | -0.002236 | 8.479277e-01 | HD/2 | 8.690328e-01 | Pou6f2_2 |
| 7 | 1 | False | 2 | Lmx1a | True | -0.001761 | 8.799552e-01 | HD/2 | 8.966064e-01 | Lmx1a_2 |
mod_names_best = set(rkg_df.sort_values('scores', ascending=False).groupby(cell_type_key).head(5)['module_name'])
best = rkg_df[rkg_df['module_name'].isin(mod_names_best)]
rcParams['figure.dpi'] = 130

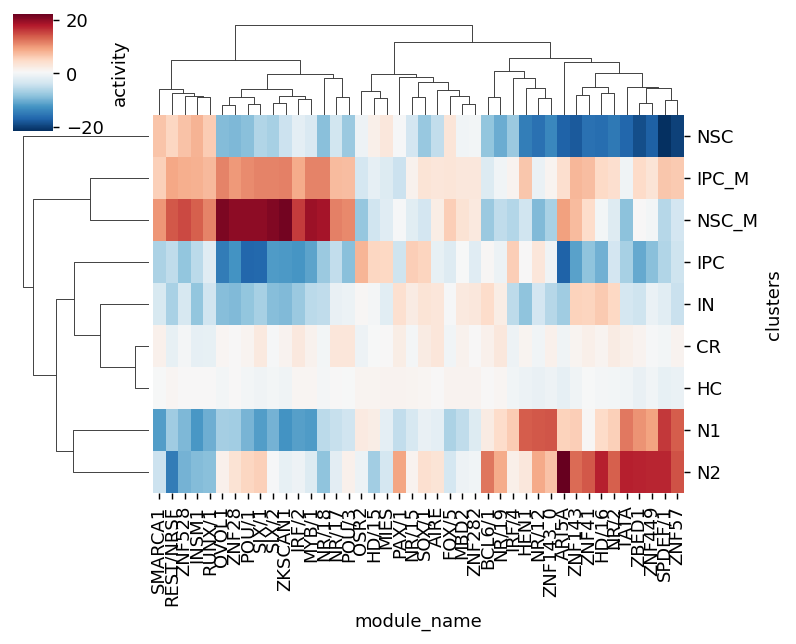

sns.clustermap(best.pivot(index=cell_type_key, columns='module_name', values='scores'),
cbar_kws={'label': 'activity'}, cmap='RdBu_r',
# vmin=-5, vmax=5,
figsize=[6.2, 5],
# dpi=100,
xticklabels=True)
<seaborn.matrix.ClusterGrid at 0x708174318100>
rna_tfs = rna_sel.to_df()[list(set(res['gene_name']))]
rna_tfs[cell_type_key] = rna_sel.obs[cell_type_key]
mean_tfs = rna_tfs.groupby(cell_type_key).mean()
act_tfs_df = ad_act.to_df()
act_tfs_df[cell_type_key] = ad_act.obs[cell_type_key]
mean_act_tf = act_tfs_df.groupby(cell_type_key).mean()
corr_celltype = []
for i, c1 in enumerate(mean_act_tf):
if i % 50 == 0:
print(i, mean_act_tf.shape[1])
for j, c2 in enumerate(mean_tfs):
if not c1 in genes_by_module_name or not c2 in genes_by_module_name[c1]:
continue
a = mean_act_tf[c1]
b = mean_tfs[c2]
corr_celltype.append([c1, c2, mean_act_tf.index[np.argmax(mean_act_tf[c1])]] + list(pearsonr(a, b)))
corr = pd.DataFrame(corr_celltype,
columns=['module_name', 'gene_name', 'cell_type', 'pearsonr', 'p_val'])
corr = corr.sort_values('pearsonr', ascending=False)
0 288
50 288
100 288
150 288
200 288
250 288
# sc.pl.dotplot(rna_sel, groupby='celltype', var_names=list(set(res['gene_name'])))
corr[corr['pearsonr'] > 0].sort_values('p_val')
| module_name | gene_name | cell_type | pearsonr | p_val | |
|---|---|---|---|---|---|
| 179 | HIF | Epas1 | HC | 0.927976 | 0.000308 |
| 349 | NFI/2 | Nfia | CR | 0.899426 | 0.000962 |
| 85 | NR/20 | Nr3c1 | HC | 0.883691 | 0.001574 |
| 123 | CREB/ATF/2 | Junb | HC | 0.873790 | 0.002074 |
| 83 | NR/20 | Arsb | HC | 0.852563 | 0.003497 |
| ... | ... | ... | ... | ... | ... |
| 9 | KLF/SP/2 | Egr1 | IPC_M | 0.037409 | 0.923880 |
| 178 | ETS/2 | Ets1 | IPC_M | 0.029951 | 0.939031 |
| 274 | TBX/1 | Ttyh1 | HC | 0.021263 | 0.956700 |
| 198 | FOX/5 | Foxo1 | HC | 0.002574 | 0.994756 |
| 194 | HD/2 | Pou6f2 | IPC_M | 0.001198 | 0.997560 |
178 rows × 5 columns
from matplotlib.pyplot import rcParams
rcParams['figure.dpi'] = 150
# repressors
print('repressors')
module_names = corr[corr['pearsonr'] < 0].sort_values('p_val').sort_values('p_val').groupby('cell_type').head(3)['module_name'].drop_duplicates()
gene_names = corr[corr['pearsonr'] < 0].sort_values('p_val').sort_values('p_val').groupby('cell_type').head(3)['gene_name']

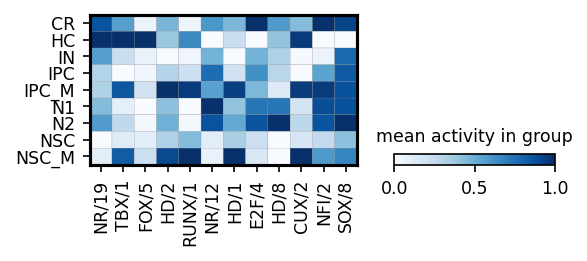

sc.pl.matrixplot(ad_act,
groupby=cell_type_key,
cmap='Blues',
var_names=module_names,
figsize=[4, 1.3],
standard_scale='var',
colorbar_title='mean activity in group')
repressors

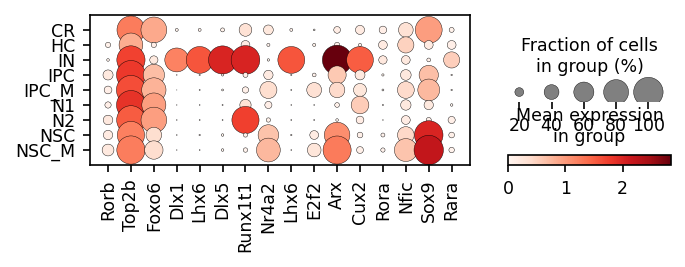

sc.pl.dotplot(rna_sel,
groupby=cell_type_key,
# colorbar_title='mean GEX',
var_names=gene_names,
figsize=[5, 1.3])

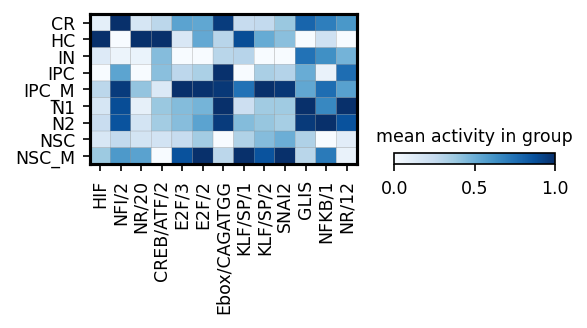

# activators
rcParams['pdf.fonttype'] = 42
module_names = corr[corr['pearsonr'] > 0].sort_values('p_val').sort_values('p_val').groupby('cell_type').head(3)['module_name'].drop_duplicates()
gene_names = corr[corr['pearsonr'] > 0].sort_values('p_val').sort_values('p_val').groupby('cell_type').head(3)['gene_name']
sc.pl.matrixplot(ad_act,
groupby=cell_type_key,
cmap='Blues',
var_names=module_names,
figsize=[4, 1.3],
show=False,
standard_scale='var',
colorbar_title='mean activity in group')
plt.savefig('../../../output/filter_activities_neurogenesis.pdf')
plt.show()

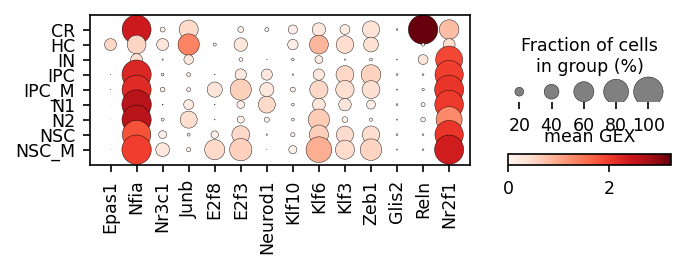

sc.pl.dotplot(rna_sel,
show=False,
groupby=cell_type_key,
colorbar_title='mean GEX',
var_names=gene_names,
figsize=[5, 1.3])
plt.savefig('../../../output/gene_expression_neurogenesis.pdf')
plt.show()
filter_id_by_name = {v: k for k, v in zip(name_by_filter_id.keys(), name_by_filter_id.values())}
custom_names = pd.Series(['NFI/1', 'E2F/4', 'HD/2', 'GLI', 'HSF', 'POU/3', 'PAX/1', 'CUX/1', 'KLF/SP/2', 'NR/14', 'HD/19'])
# custom_names = pd.Series(['FOX/4',])
custom_names.map(res.set_index('module_name')['filter_id'].to_dict()),
(0 188
1 157
2 1
3 261
4 248
5 82
6 280
7 13
8 108
9 42
10 24
dtype: int64,)
for k in list(anno.sort_values('Cluster_ID')['Name']):
if k != 'GLI':
continue
print(k)
mb.pl.logo(
model,
title=False,
xticks=False,
rowspan_dinuc=0,
rowspan_mono=1,
n_rows=40,
log_odds=True,
# stop_at=11,
show=False,
# n_rows=len(res.head(20).index),
n_cols=1,
order=pd.Series([k]).map(filter_id_by_name) + 2,
) # n_cols=len(reduced_groups))
# plt.tight_layout()
plt.show()
GLI
res.drop_duplicates('filter_id')
| filter_id | opt_log_dynamic | archetype_id | gene_name | matched | spearman | p_val | module_name | p_adj | k | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | False | 1 | Lhx6 | True | -0.087736 | 4.712331e-14 | HD/1 | 1.186558e-13 | Lhx6_1 |
| 1 | 1 | False | 2 | Pou6f2 | True | -0.025458 | 2.897336e-02 | HD/2 | 3.855770e-02 | Pou6f2_2 |
| 12 | 6 | False | 7 | Emx1 | True | -0.089355 | 1.599046e-14 | HD/7 | 4.100117e-14 | Emx1_7 |
| 14 | 7 | False | 8 | Arx | True | 0.338170 | 2.673819e-196 | HD/8 | 2.529289e-195 | Arx_8 |
| 15 | 11 | False | 12 | Pbx3 | True | 0.107847 | 1.741761e-20 | HD/12 | 5.101392e-20 | Pbx3_12 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 343 | 261 | False | 262 | Gli3 | True | 0.230897 | 1.198642e-89 | GLI | 6.261564e-89 | Gli3_262 |
| 344 | 262 | False | 263 | Tfap2c | True | 0.189942 | 9.700005e-61 | TFAP2/2 | 4.297471e-60 | Tfap2c_263 |
| 345 | 263 | False | 264 | Tfap2c | True | -0.319823 | 1.201576e-174 | TFAP2/1 | 1.051379e-173 | Tfap2c_264 |
| 346 | 272 | False | 273 | Zic4 | True | -0.008062 | 4.892764e-01 | ZIC | 5.368236e-01 | Zic4_273 |
| 349 | 280 | False | 281 | Pax6 | True | -0.565214 | 0.000000e+00 | PAX/1 | 0.000000e+00 | Pax6_281 |
99 rows × 10 columns
print(custom_names.map(res.set_index('module_name')['filter_id'].to_dict()))
mb.pl.set_rcParams({"figure.figsize": [2, 20], "figure.dpi": 90})
mb.pl.logo(
model,
title=False,
xticks=False,
rowspan_dinuc=0,
rowspan_mono=1,
n_rows=40,
log_odds=True,
# stop_at=11,
show=False,
# n_rows=len(res.head(20).index),
n_cols=1,
order=custom_names.map(filter_id_by_name) + 2,
) # n_cols=len(reduced_groups))
# plt.tight_layout()
plt.savefig('../../../output/motif_neurogenes_publication.pdf')
plt.show()
0 188
1 157
2 1
3 261
4 248
5 82
6 280
7 13
8 108
9 42
10 24
dtype: int64
custom_names = pd.Series(['SOX/3', 'NR/11', 'CCAAT/CEBP', 'PRDM1'])
print(custom_names.map(res.set_index('module_name')['filter_id'].to_dict()))
mb.pl.set_rcParams({"figure.figsize": [2, 20], "figure.dpi": 90})
mb.pl.logo(
model,
title=False,
xticks=False,
rowspan_dinuc=0,
rowspan_mono=1,
n_rows=40,
log_odds=True,
# stop_at=11,
show=False,
# n_rows=len(res.head(20).index),
n_cols=1,
order=custom_names.map(filter_id_by_name) + 2,
) # n_cols=len(reduced_groups))
# plt.tight_layout()
plt.savefig('../../../output/motif_pancreatic_endocrinogenesis_publication_subset.pdf')
plt.show()
0 91
1 39
2 51
3 104
dtype: int64
mb.pl.set_rcParams({"figure.figsize": [2, 20], "figure.dpi": 90})
mb.pl.logo(
model,
title=False,
xticks=False,
rowspan_dinuc=0,
rowspan_mono=1,
log_odds=True,
n_rows=40,
# stop_at=11,
show=False,
# n_rows=len(res.head(20).index),
n_cols=1,
# log_odds=True,
order=module_names.map(res.set_index('module_name')['filter_id'].to_dict()),
) # n_cols=len(reduced_groups))
# plt.tight_layout()
plt.show()
mb.pl.logo(
model,
title=False,
xticks=False,
rowspan_dinuc=0,
rowspan_mono=1,
n_rows=40,
# stop_at=11,
show=False,
# n_rows=len(res.head(20).index),
n_cols=1,
log_odds=True,
order=module_names.map(res.set_index('module_name')['filter_id'].to_dict()),
) # n_cols=len(reduced_groups))
# plt.tight_layout()
plt.show()
# assert False
plt.savefig('../../../output/motif_neurogenesis.pdf')
plt.show()
<Figure size 180x1800 with 0 Axes>
!readlink -f ../../../output/motif_neurogenesis.pdf
/home/ilibarra/workspace/theislab/mubind/output/motif_neurogenesis.pdf
Filter activities versus graph activities
A = model.get_log_activities()
sum_A = A.abs().sum(axis=1).cpu().detach().numpy()
A = A.squeeze(0)
print(A.shape)
torch.Size([288, 7359])
# this function assesses the contributions of A on the graph
indices, contributions, max_eig = mb.tl.compute_contributions(A.cpu(), C.cpu(), D.cpu())
contributions_normalized = torch.abs(contributions) / max_eig
contributions_df = pd.DataFrame(contributions_normalized.detach(), columns=['index'])
print("Summary statistics of the normalized contributions: \n")
contributions_df.describe()
Summary statistics of the normalized contributions:
| index | |
|---|---|
| count | 288.000000 |
| mean | 0.264926 |
| std | 0.065371 |
| min | 0.146912 |
| 25% | 0.209978 |
| 50% | 0.260296 |
| 75% | 0.314351 |
| max | 0.413175 |
from matplotlib.pyplot import rcParams
rcParams['figure.dpi'] = 100
plt.figure(figsize=(10, 5))
print(f"Percentage of non-zero entries of the filter matrix A: {100 * torch.sum(A != 0).item() / A.numel()} %")

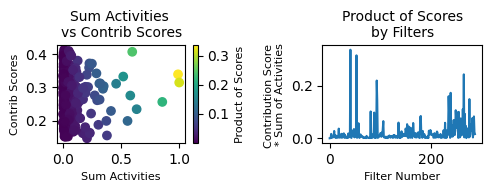

mb.pl.filter_contrib_simple(contributions_normalized, A.cpu())
Percentage of non-zero entries of the filter matrix A: 100.0 %
<Figure size 1000x500 with 0 Axes>
# normalize the data, and look at summary stats
sum_A_norm = sum_A / np.max(sum_A)
sum_A_df = pd.DataFrame(sum_A.T, columns=['sum_A'])
sum_A_df.describe()
| sum_A | |
|---|---|
| count | 288.000000 |
| mean | 0.746615 |
| std | 1.270342 |
| min | 0.000068 |
| 25% | 0.119778 |
| 50% | 0.301893 |
| 75% | 0.753946 |
| max | 9.227266 |
contrib_arr = contributions_normalized.unsqueeze(dim=0).detach().numpy()
sum_A = A.cpu().abs().sum(axis=1).detach().numpy()
contrib = contrib_arr[0]
contrib_times_activities = contrib * sum_A
contrib_times_activities_norm = contrib_times_activities / np.max(contrib_times_activities)
contrib_times_activities_df = pd.DataFrame(contrib_times_activities, columns=['contribution_times_activities'])
contrib_times_activities_df.describe()
| contribution_times_activities | |
|---|---|
| count | 288.000000 |
| mean | 0.202153 |
| std | 0.379312 |
| min | 0.000013 |
| 25% | 0.029517 |
| 50% | 0.080536 |
| 75% | 0.179532 |
| max | 3.099209 |
from matplotlib.pyplot import rcParams
rcParams['figure.dpi'] = 80
# unsqueeze the data to make it compatible with the heatmap function
sum_A_norm = sum_A_norm.reshape(1,-1)
contrib_times_activities = contrib_times_activities.reshape(1,-1)
# # only plotting filters, that are within the top 25% of the maximum contribution score
# mb.pl.contrib_heatmaps(contributions_normalized,
# sum_A.reshape(1, -1),
# contrib_times_activities,
# cmap='Reds')
# # (0.66, 11.85, 6.49),
# # (0.66, 11.85, 6.49)) # vmin values come from the describe() functions
# # plotting top 25% of filters normalized
# mb.pl.contrib_heatmaps(contributions_normalized,
# sum_A_norm,
# contrib_times_activities_norm.reshape(1,-1),
# cmap='Reds')
# # vmins=(0.66, 0.14, 0.19),
# # centers=(0.66, 0.14, 0.19)) # vmin values come from the describe() functions
# # plotting all filter
# mb.pl.contrib_heatmaps(contributions_normalized,
# sum_A.reshape(1, -1),
# contrib_times_activities,
# cmap='Reds')
# # plotting all filters normalized
# mb.pl.contrib_heatmaps(contributions_normalized,
# sum_A_norm,
# contrib_times_activities,
# cmap='Reds')
res['graph_score'] = res['filter_id'].map({i : contrib_times_activities[0][i + 2] for i in range(len(contrib_times_activities[0]) - 2)})
# grnpedia associations
ttrust = pd.read_csv('https://www.grnpedia.org/trrust/data/trrust_rawdata.mouse.tsv',
sep='\t',
header=None)
ttrust.columns = ['tf', 'target', 'role', 'ref']
ttrust = ttrust.groupby(['tf', 'role']).size().reset_index().pivot(index='tf', columns='role', values=0).fillna(0)
ttrust['consensus'] = np.where((ttrust['Activation'] > 0) & (ttrust['Repression'] == 0), 'red',
np.where((ttrust['Repression'] > 0) & (ttrust['Activation'] == 0), 'blue', 'purple'))
# res_sel.sort_values('act_change')
print('here...')
here...
def delta_models(model_by_logdynamic, func='mean'):
model = model_by_logdynamic[True]
model = model_by_logdynamic[True]
log_act1 = torch.stack(list(model.activities.log_activities), dim=1).squeeze(0)
if func == 'expsum':
log_act1 = log_act1.exp() / log_act1.exp().sum()
log_act1 = pd.DataFrame(log_act1.detach().cpu().numpy())
model = model_by_logdynamic[False]
log_act2 = torch.stack(list(model.activities.log_activities), dim=1).squeeze(0)
if func == 'expsum':
log_act2 = log_act2.exp() / log_act2.exp().sum()
log_act2 = pd.DataFrame(log_act2.detach().cpu().numpy())
d = None
if func == 'mean':
d = log_act1.mean(axis=0) - log_act2.mean(axis=0)
d = pd.DataFrame(d, columns=['delta'])
d['graph_on'] = log_act1.mean(axis=0)
d['graph_off'] = log_act2.mean(axis=0)
return d
elif func == 'abssum' or func == 'expsum':
d = log_act1.abs().sum(axis=0) - log_act2.abs().sum(axis=0)
d = pd.DataFrame(d, columns=['delta'])
d['graph_on'] = log_act1.abs().sum(axis=0)
d['graph_off'] = log_act2.abs().sum(axis=0)
return d
# graph = True - graph = False
delta_model = delta_models(model_by_logdynamic, func='expsum')
delta_model
delta_model = delta_model[2:]
delta_model.index = range(len(delta_model))
delta_model.index += 1
delta_model.index = delta_model.index.map(name_by_filter_id)
delta_model
n_select = 20
top_delta = delta_model.sort_values('delta', ascending=False).reset_index()['index'][:n_select]
bar_df = delta_model.sort_values('delta', ascending=False).reset_index().melt(id_vars='index', value_vars=['graph_on', 'graph_off'])

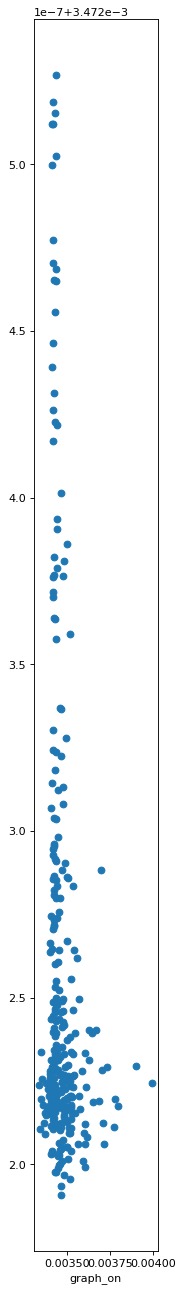

plt.scatter(delta_model['graph_off'], delta_model['graph_on'])
plt.xlabel('graph_off')
plt.xlabel('graph_on')
Text(0.5, 0, 'graph_on')
delta_model.sort_values('delta', ascending=False)
| delta | graph_on | graph_off | |
|---|---|---|---|
| TFAP2/1 | 0.000133 | 0.003472 | 0.003339 |
| INSM1 | 0.000128 | 0.003472 | 0.003344 |
| ZNF232 | 0.000121 | 0.003472 | 0.003351 |
| GLI | 0.000120 | 0.003472 | 0.003353 |
| SOX/3 | 0.000118 | 0.003472 | 0.003355 |
| ... | ... | ... | ... |
| MECP2 | -0.000300 | 0.003472 | 0.003773 |
| HD/21 | -0.000308 | 0.003472 | 0.003780 |
| PRDM1 | -0.000324 | 0.003472 | 0.003797 |
| NFAT/3 | -0.000428 | 0.003472 | 0.003900 |
| BCL6/1 | -0.000522 | 0.003472 | 0.003994 |
286 rows × 3 columns
rcParams['figure.dpi'] = 120
rcParams['figure.figsize'] = 2, 3

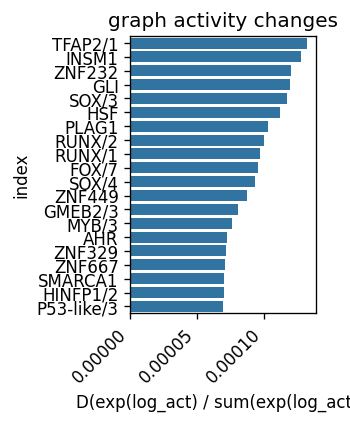

sns.barplot(data=delta_model.sort_values('delta', ascending=0).reset_index().head(20), x='delta', y='index')
plt.title('graph activity changes')
plt.xticks(rotation=45, ha='right')
plt.xlabel('D(exp(log_act) / sum(exp(log_act)))')
plt.savefig('../../../output/delta_log_act_exp_neurogenesis.pdf')
plt.show()
# if the delta organoid values are provided, then load and compare
delta_organoids = pd.read_csv('../../../output/delta_log_act_exp_organoids.csv', index_col=0)
delta_model['dataset'] = 'mouse_neurogenesis'
delta_organoids['dataset'] = 'human_organoids'
index_human = delta_organoids.sort_values('delta', ascending=0).reset_index().head(10)['index']
index_mouse = delta_model.sort_values('delta', ascending=0).reset_index().head(10)['index']
# delta_both.shape
order = delta_model.sort_values('delta', ascending=0).index
order_sel = set(order[order.isin(index_human) | order.isin(index_mouse)])
delta_both_all = pd.concat([delta_organoids, delta_model])
delta_both = pd.concat([delta_organoids.reindex(order_sel), delta_model.reindex(order_sel)])
rcParams['figure.figsize'] = 2, 2
pivot_df = delta_both_all.reset_index().pivot(index='index', columns='dataset', values='delta')
from scipy import stats
corr_result = stats.pearsonr(pivot_df['human_organoids'], pivot_df['mouse_neurogenesis'])
print(corr_result.statistic, corr_result.pvalue)
pivot_df.shape

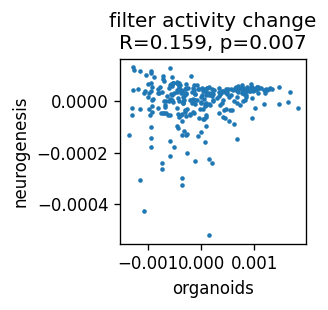

plt.scatter(pivot_df['human_organoids'], pivot_df['mouse_neurogenesis'], s=3)
plt.xlabel('organoids')
plt.ylabel('neurogenesis')
plt.title('filter activity change\nR=%.3f, p=%.3f' % (corr_result.statistic, corr_result.pvalue))
plt.savefig("../../../output/changes_organoids_and_neurogenesis.pdf")
0.15945890483794758 0.006888308954743277
delta_model
rcParams['figure.dpi'] = 120
rcParams['figure.figsize'] = 2, 3

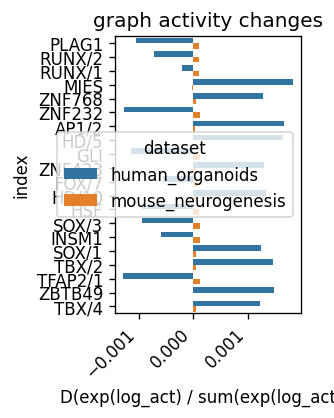

sns.barplot(data=delta_both[delta_both.index.isin(index_human) | delta_both.index.isin(index_mouse)].reset_index(), x='delta', y='index', hue='dataset')
plt.title('graph activity changes')
plt.xticks(rotation=45, ha='right')
plt.xlabel('D(exp(log_act) / sum(exp(log_act)))')
# plt.savefig('../../../output/delta_log_act_exp_neurogenesis.pdf')
plt.show()
rcParams['figure.dpi'] = 120
rcParams['figure.figsize'] = 4, 4

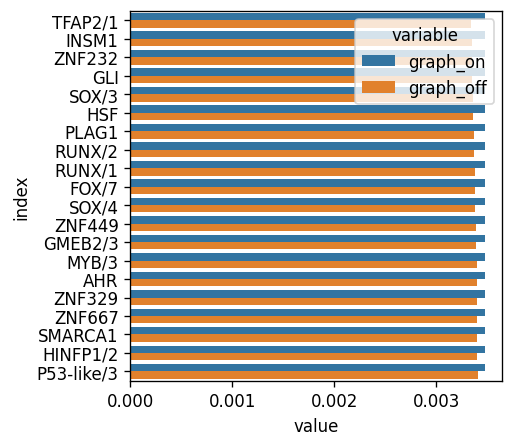

sns.barplot(data=bar_df[bar_df['index'].isin(top_delta)], y='index', x='value', hue='variable')
<Axes: xlabel='value', ylabel='index'>
rcParams['figure.figsize'] = 3, 3
rcParams['figure.dpi'] = 250
rcParams['pdf.fonttype'] = 42
from adjustText import adjust_text
res['act_change'] = res['module_name'].map(delta_model['delta'].to_dict())
res['k'] = res['module_name'] + ':' + res['gene_name']
res['graph_score'] = res['filter_id'].map({i : contrib_times_activities[0][i + 2] for i in range(len(contrib_times_activities[0]) - 2)})
res['z'] = np.sqrt((res['graph_score'] ** 2) * (-np.log(res['p_adj'] + 1e-10)) ** 2)
ax = plt.subplot()
cmap = sns.color_palette('RdBu_r', as_cmap=True)
res = res[res['opt_log_dynamic']]
res_sel = res.sort_values('z', ascending=False)
res_sel = res_sel.sort_values('z', ascending=False) # .drop_duplicates('module_name')
# res_sel = res_sel.drop_duplicates('module_name')
# res_sel['x'] = np.log((res_sel['graph_score'] + 1) * (res_sel['act_change'].abs() + 1))
res_sel['x'] = res_sel['graph_score'] * res_sel['act_change'].abs() * res_sel['spearman'].abs()
edgecolors = res_sel['gene_name'].map(ttrust['consensus'].to_dict())
edgecolors = np.where(~pd.isnull(edgecolors), edgecolors, 'gray')
res_sel['edgecolors'] = edgecolors

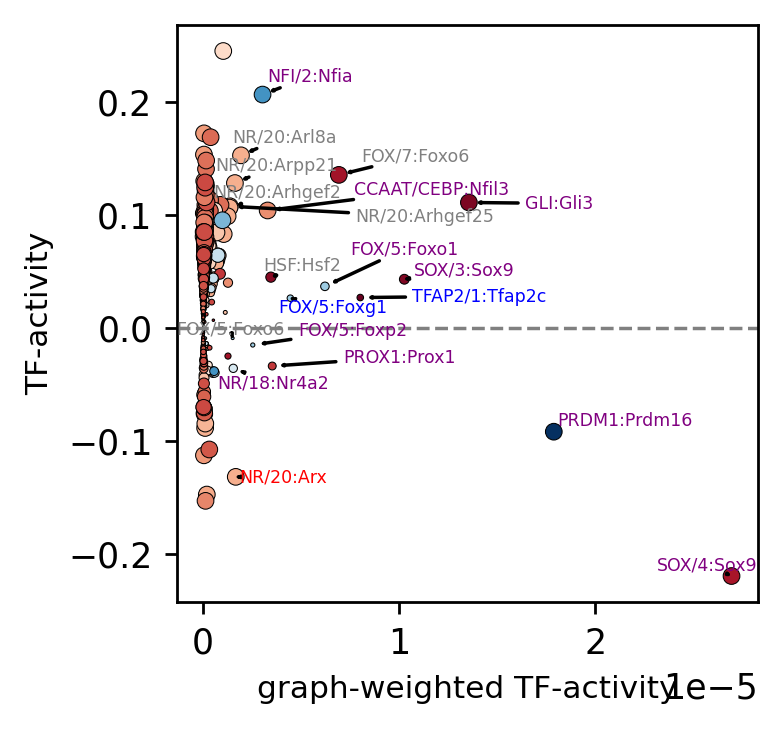

plt.scatter(res_sel['x'],
res_sel['spearman'],
s=-np.log(res_sel['p_adj'] + 1e-10),
cmap=cmap,
lw=.3,
edgecolors='black', # res_sel['edgecolors'],
c=res_sel['act_change'])
plt.axhline(y=0, ls='--', c='gray', lw=1.0)
plt.xlabel('graph-weighted TF-activity', fontsize=9) # G_layer * abs(act) * abs(rho(GEX, act))'
plt.ylabel('TF-activity', fontsize=9) # rho(GEX, act)
res_sel = res_sel.sort_values('x', ascending=False) # .drop_duplicates('module_name')
texts = [] # [plt.text(x[i], y[i], 'Text%s' %i, ha='center', va='center') for i in range(len(x))]
for ri, r in res_sel.head(20).iterrows():
print(r['module_name'] + ':' + r['gene_name'], (r['x'], r['spearman']), r['act_change'])
t = ax.annotate(r['module_name'] + ':' + r['gene_name'], (r['x'], r['spearman']), fontsize=5, color=r['edgecolors'])
texts.append(t)
adjust_text(texts, arrowprops=dict(arrowstyle='->'))
plt.savefig('../../../output/graph_contribution_neurogenesis.pdf')
plt.show()
SOX/4:Sox9 (2.6940284748144043e-05, -0.21938014712945927) 9.35655552893877e-05
PRDM1:Prdm16 (1.7878811798104274e-05, -0.0917151767367197) -0.0003243109676986933
GLI:Gli3 (1.3551140259722075e-05, 0.11102551480230653) 0.0001196127850562334
SOX/3:Sox9 (1.0259301609975559e-05, 0.04313964387916473) 0.00011771381832659245
TFAP2/1:Tfap2c (8.012593530772662e-06, 0.026946638604905353) 0.00013288320042192936
FOX/7:Foxo6 (6.919009080482413e-06, 0.13544323504533537) 9.542983025312424e-05
FOX/5:Foxo1 (6.210382466767795e-06, 0.036868129675778) -0.00017945002764463425
FOX/5:Foxg1 (4.44730826936683e-06, 0.026401584582038062) -0.00017945002764463425
PROX1:Prox1 (3.524228383859824e-06, -0.0336303518997785) 6.584427319467068e-05
HSF:Hsf2 (3.455791458989058e-06, 0.04499997110184604) 0.00011199456639587879
CCAAT/CEBP:Nfil3 (3.290349327573295e-06, 0.10397394464617533) 1.0900432243943214e-05
NFI/2:Nfia (3.0298595178163996e-06, 0.20648198706902032) -0.00023232167586684227
FOX/5:Foxp2 (2.5312771524808906e-06, -0.015027005953720259) -0.00017945002764463425
NR/20:Arl8a (1.9309410569596035e-06, 0.15273841786958656) -1.2870179489254951e-05
NR/20:Arx (1.6643902425396363e-06, -0.13165411313142938) -1.2870179489254951e-05
NR/20:Arpp21 (1.6210791709593557e-06, 0.1282281853820735) -1.2870179489254951e-05
NR/18:Nr4a2 (1.5378417109534286e-06, -0.035655297524747366) -0.00013304082676768303
FOX/5:Foxo6 (1.506451276516502e-06, -0.008943095100833237) -0.00017945002764463425
NR/20:Arhgef25 (1.3615367006675356e-06, 0.107698244222318) -1.2870179489254951e-05
NR/20:Arhgef2 (1.3466272342832835e-06, 0.1065188978623643) -1.2870179489254951e-05
pwd
'/home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell'
import pylab as pl
import numpy as np
a = np.array([[res_sel['act_change'].min(), res_sel['act_change'].max()]])
pl.figure(figsize=(3, .2))
img = pl.imshow(a, cmap="RdBu_r")
pl.gca().set_visible(False)
cax = pl.axes([0.1, 0.2, 0.8, 0.6])
pl.colorbar(orientation="horizontal", cax=cax)
pl.savefig("../../../output/graph_contribution_neurogenesis_cbar.pdf")
!readlink -f ../../../output/graph_contribution_neurogenesis.pdf
/home/ilibarra/workspace/theislab/mubind/output/graph_contribution_neurogenesis.pdf
print('here...')
here...
def running_mean(y_in, x_in, N_out=101, sigma=.05):
'''
Returns running mean as a Bell-curve weighted average at evenly spaced
points. Does NOT wrap signal around, or pad with zeros.
Arguments:
y_in -- y values, the values to be smoothed and re-sampled
x_in -- x values for array
Keyword arguments:
N_out -- NoOf elements in resampled array.
sigma -- 'Width' of Bell-curve in units of param x .
'''
import numpy as np
N_in = len(y_in)
# Gaussian kernel
x_out = np.linspace(np.min(x_in), np.max(x_in), N_out)
x_in_mesh, x_out_mesh = np.meshgrid(x_in, x_out)
gauss_kernel = np.exp(-np.square(x_in_mesh - x_out_mesh) / (2 * sigma**2))
# Normalize kernel, such that the sum is one along axis 1
normalization = np.tile(np.reshape(np.sum(gauss_kernel, axis=1), (N_out, 1)), (1, N_in))
gauss_kernel_normalized = gauss_kernel / normalization
# Perform running average as a linear operation
y_out = gauss_kernel_normalized @ y_in
return y_out, x_out
def plot_chromatin(filter_name, sigma_chrom,
group_key=None, key_sel=None,
q_thr=.95, show=True, save=None):
res_sel = res[res['module_name'].str.contains(filter_name)]['filter_id']
if res_sel.shape[0] == 0:
print('not found')
return None
filter_id = int(res_sel.values[0])
print(filter_id)
scores = binding_per_mode[:,filter_id]
# filter scores across regions
# plt.hist(scores)
if group_key is not None and key_sel is not None:
ad_sel = ad[ad.obs[group_key] == key_sel]
else:
ad_sel = ad
print('here')
var_idx = np.argwhere(scores >= np.quantile(scores, q_thr)).flatten()
var_names = ad_sel.var_names[var_idx]
print(q_thr, var_names.shape)
# background with all peaks
var_names_neg = ad_sel.var_names[~ad.var_names.isin(var_names)]
x = ad_sel.obs['velocity_pseudotime']
y = ad_sel[:,var_names].X.mean(axis=1).A.flatten()
# y = np.log(y)
# y[y == -np.inf] = np.nanmin(y[y != -np.inf])
y_mean, x_mean = running_mean(y, x, sigma=sigma_chrom)
plt.scatter(x, y, edgecolors=None, color='lightblue', s=.1)
plt.plot(x_mean, y_mean, color='blue', label='targets')
plt.ylabel('')
plt.title(filter_name + ((', %s' % key_sel) if key_sel is not None else ''))
plt.ylabel('chromatin accessibility [mean]')
plt.xlabel('pseudotime')
# plt.show()
print(q_thr, var_names_neg.shape)
x = ad_sel.obs['velocity_pseudotime']
y = ad_sel[:,var_names_neg].X.mean(axis=1).A.flatten()
# y = np.log(y)
# y[y == -np.inf] = np.nanmin(y[y != -np.inf])
y_mean_avr, x_mean = running_mean(y, x, sigma=sigma_chrom)
# plt.scatter(x, y, edgecolors=None, color='lightblue', s=.1)
plt.plot(x_mean, y_mean_avr, color='gray', linestyle='--', label='non-targets')
plt.ylabel('')
plt.ylabel('chromatin accessibility [mean]')
plt.xlabel('pseudotime')
plt.legend()
if save is not None:
plt.savefig(save + '_filter.pdf')
if not show:
plt.close()
else:
plt.show()
return (y_mean - y_mean_avr).sum()

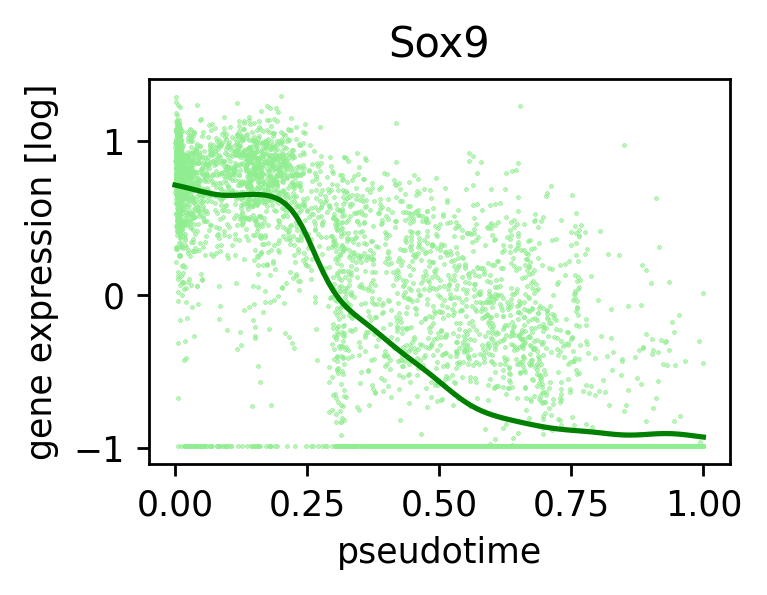

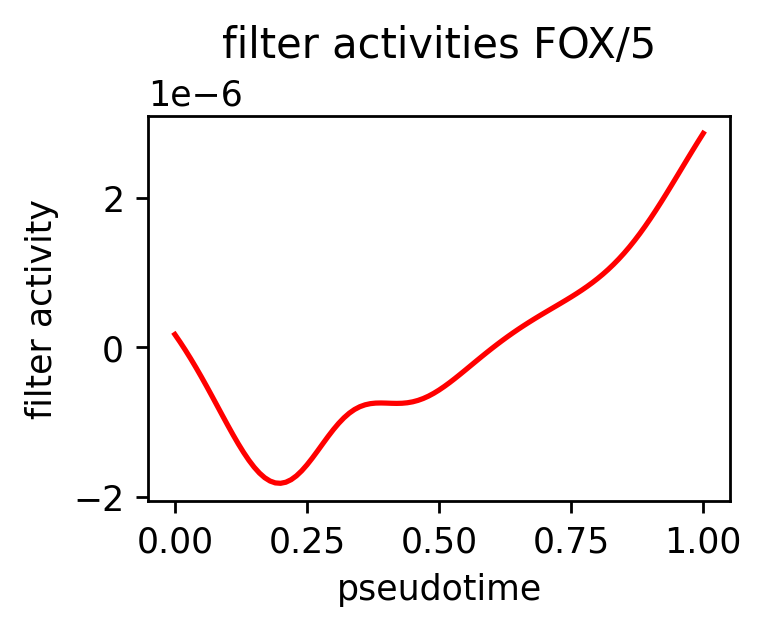

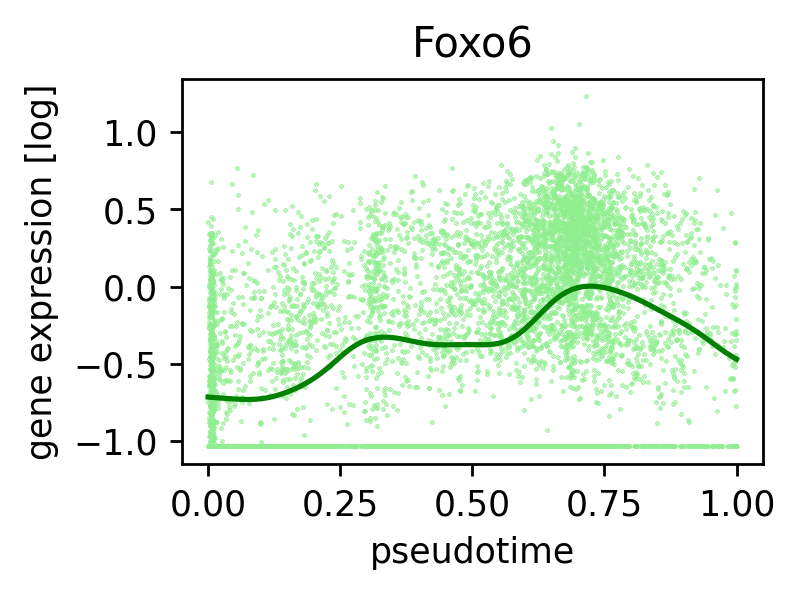

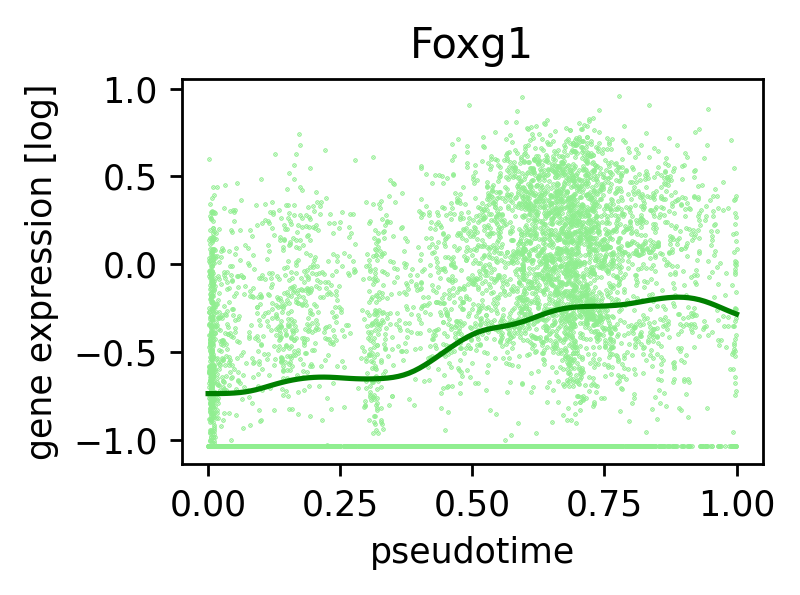

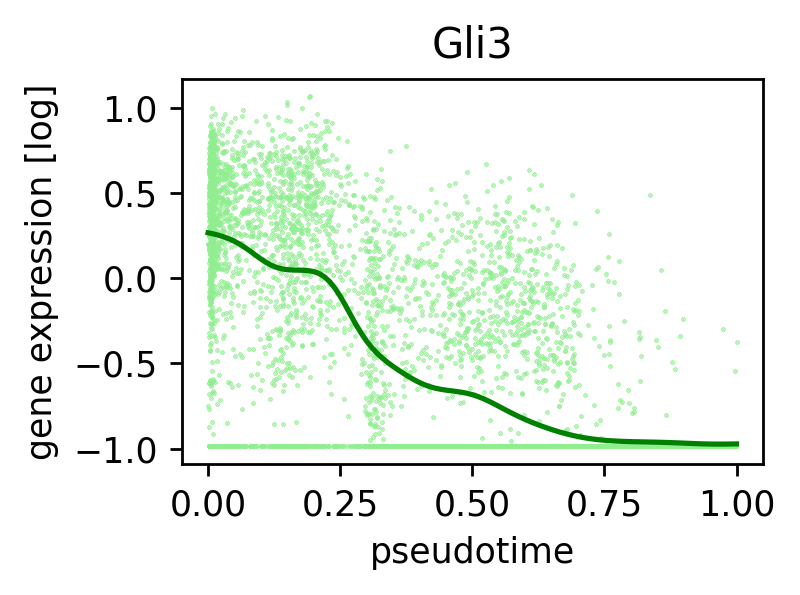

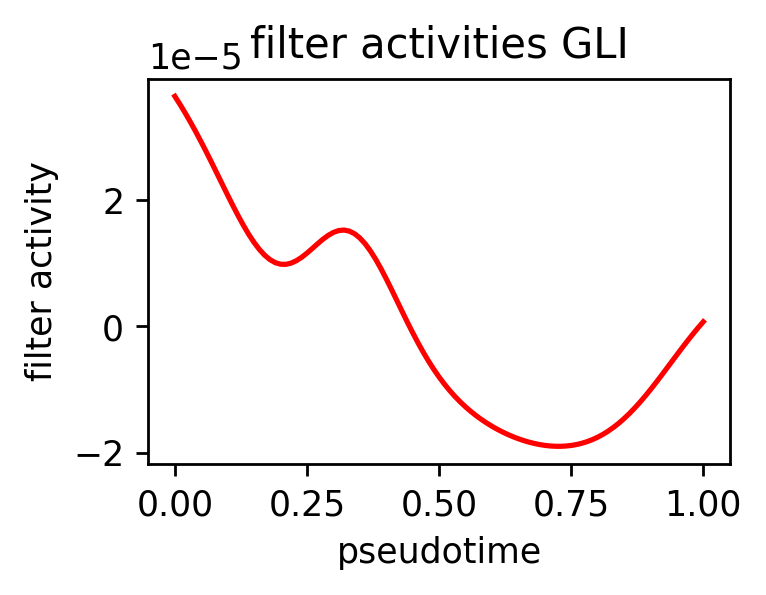

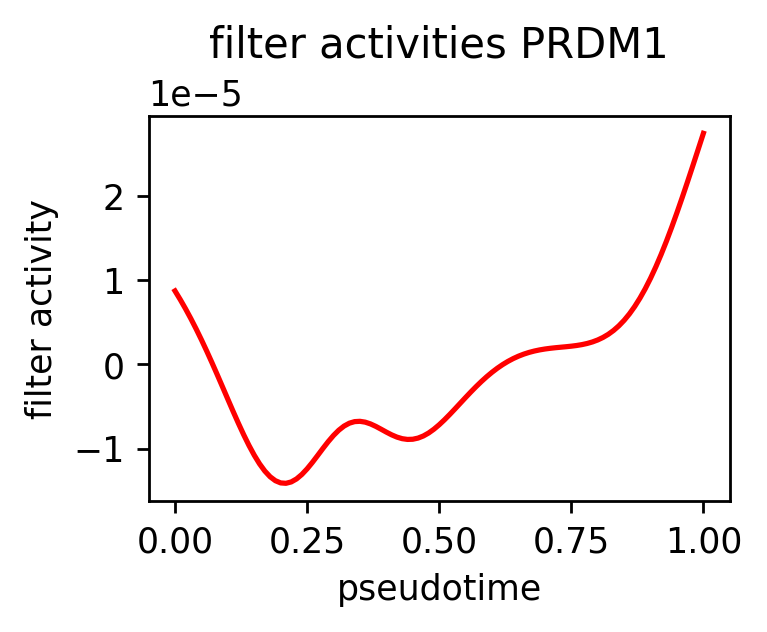

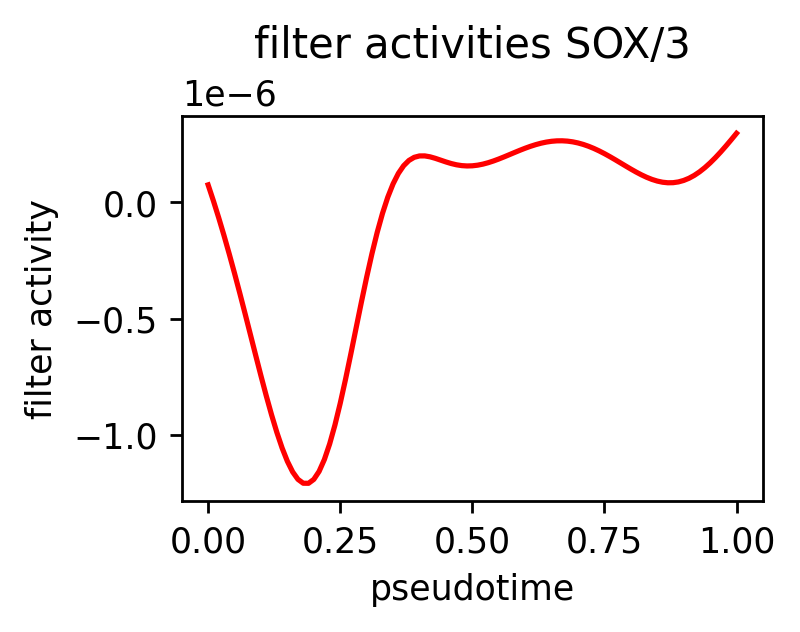

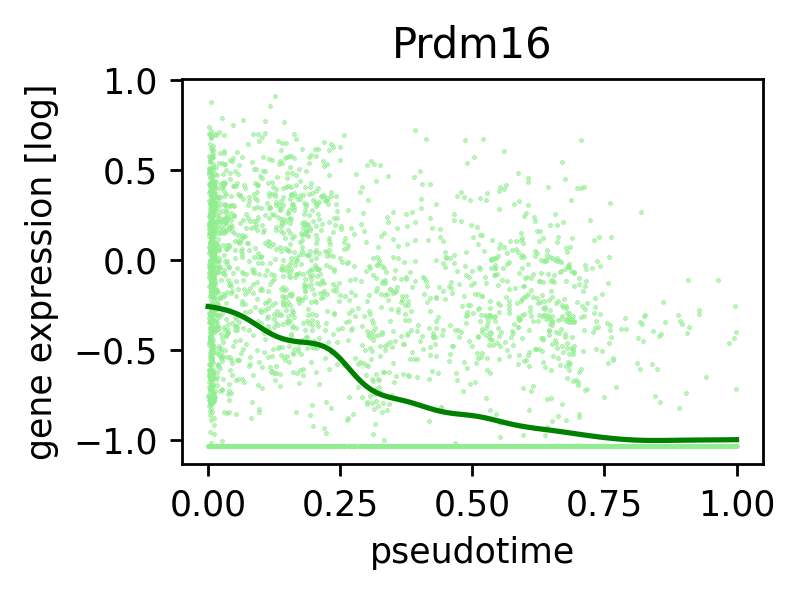

def plot_pseudotime(rna, gene_name, filter_name, sigma_gex=.05, sigma_filter=.1, save=None):
rcParams['figure.figsize'] = 3, 2
gene_key = gene_name
x = rna.obs['velocity_pseudotime']
y = rna[:,rna.var_names==gene_key].X.A.flatten()
y = np.log(y)
y[y == -np.inf] = np.nanmin(y[y != -np.inf])
y_mean, x_mean = running_mean(y, x, sigma=sigma_gex)
plt.scatter(x, y, edgecolors=None, color='lightgreen', s=.1)
plt.plot(x_mean, y_mean, color='green')
plt.ylabel('')
plt.title(gene_key)
plt.ylabel('gene expression [log]')
plt.xlabel('pseudotime')
x = ad.obs['velocity_pseudotime']
if save is not None:
plt.savefig(save + '_gex.pdf')
plt.show()
filter_id = int(res[res['module_name'].str.contains(filter_name)]['filter_id'].values[0])
y= act_on.T.numpy()[:,filter_id]
# y = np.abs(y)
# y = np.log(y)
# y[y == -np.inf] = np.nanmin(y[y != -np.inf])
y_mean, x_mean = running_mean(y, x, sigma=sigma_filter)
# plt.scatter(x, y, edgecolors='black', color='lightgreen', s=.1)
plt.plot(x_mean, y_mean, color='red')
plt.ylabel('')
plt.title('filter activities %s' % filter_name)
plt.ylabel('filter activity')
plt.xlabel('pseudotime')
if save is not None:
plt.savefig(save + '_filter.pdf')
# plt.close()
plt.show()
plot_pseudotime(rna_sample, 'Prdm16', 'PRDM1', sigma_gex=.05, sigma_filter=.1, save='../../../output/neurogenesis_prdm1')
plot_pseudotime(rna_sample, 'Gli3', 'GLI', sigma_gex=.05, sigma_filter=.1, save='../../../output/neurogenesis_gli3')
plot_pseudotime(rna_sample, 'Sox9', 'SOX/3', sigma_gex=.05, sigma_filter=.1, save='../../../output/neurogenesis_sox9')
plot_pseudotime(rna_sample, 'Foxg1', 'FOX/5', sigma_gex=.05, sigma_filter=.1, save='../../../output/neurogenesis_foxg1')
plot_pseudotime(rna_sample, 'Foxo6', 'FOX/5', sigma_gex=.05, sigma_filter=.1)
plot_pseudotime(rna_sample, 'Foxo6', 'FOX/5', sigma_gex=.05, sigma_filter=.1)

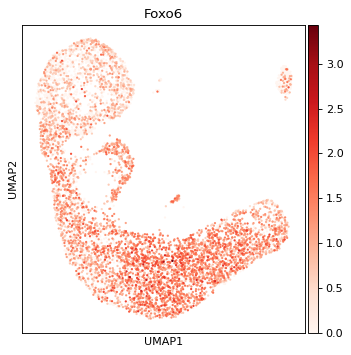

rcParams['figure.figsize'] = 5, 5
rcParams['figure.dpi'] = 80
sc.pl.umap(rna_sample, color=['Foxo6'], cmap='Reds') # 'Nfil3', 'Arl8a', 'Rara', 'Tfap2c', 'Sox9', 'Qsox1', cell_type_key])
print('here...')
here...
# debug here almost done.
tsum = torch.sum
texp = torch.exp
tspa = torch.sparse_coo_tensor
tsmm = torch.sparse.mm
t = torch.transpose
log_dynamic = model.graph_module.log_dynamic
D = model.graph_module.log_dynamic
D_tril = tspa(a_ind, D, C.shape) # .requires_grad_(True).cuda()
D_triu = tspa(a_ind, -D, C.shape) # .requires_grad_(True).cuda()
D = D_tril + t(D_triu, 0, 1)
# log_dynamic = log_dynamic + -torch.transpose(log_dynamic, 0, 1)
# triu_indices = torch.triu_indices(row=n_rounds, col=n_rounds, offset=1)
D
tensor(indices=tensor([[ 0, 0, 0, ..., 6906, 6980, 7289],
[ 1, 251, 289, ..., 7358, 7358, 7358]]),
values=tensor([ 0.13, 0.51, 0.50, ..., -0.50, -0.50, -0.50]),
device='cuda:0', size=(7359, 7359), nnz=280548, layout=torch.sparse_coo,
grad_fn=<AddBackward0>)
ad.layers['velocity'] = torch.stack([D.detach().cpu().to_dense().sum(axis=1),] * ad.shape[1], axis=1).numpy()
ad.layers['counts'] = ad.X
# with the new velocity graph based on learned weights, calculate the
scv.tl.velocity_graph(ad, vkey='velocity', xkey='counts')
computing velocity graph (using 1/20 cores)
WARNING: Unable to create progress bar. Consider installing `tqdm` as `pip install tqdm` and `ipywidgets` as `pip install ipywidgets`,
or disable the progress bar using `show_progress_bar=False`.
finished (0:00:01) --> added
'velocity_graph', sparse matrix with cosine correlations (adata.uns)
rcParams['figure.figsize'] = 5, 5,
scv.pl.velocity_embedding_stream(ad,
legend_fontsize=10,
color=cell_type_key,
linewidth=.1,
save="../../../output/neurogenesis_graph_layer.svg")
computing velocity embedding
finished (0:00:00) --> added
'velocity_umap', embedded velocity vectors (adata.obsm)
saving figure to file ../../../output/neurogenesis_graph_layer.svg
sc.pl.embedding_density(ad[ad.obs_names[:3]], basis='umap', key='umap_density_dynamic_score_z1', group='dynamic', color_map='viridis', edge_colors='black')
# save="dynamic_scores_neurogenesis.pdf") # basis='umap', groupby='dynamic_score_cluster')
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Cell In[187], line 1
----> 1 sc.pl.embedding_density(ad[ad.obs_names[:3]], basis='umap', key='umap_density_dynamic_score_z1', group='dynamic', color_map='viridis', edge_colors='black')
2 # save="dynamic_scores_neurogenesis.pdf") # basis='umap', groupby='dynamic_score_cluster')
File ~/miniconda3/envs/mubind/lib/python3.9/site-packages/legacy_api_wrap/__init__.py:80, in legacy_api.<locals>.wrapper.<locals>.fn_compatible(*args_all, **kw)
77 @wraps(fn)
78 def fn_compatible(*args_all: P.args, **kw: P.kwargs) -> R:
79 if len(args_all) <= n_positional:
---> 80 return fn(*args_all, **kw)
82 args_pos: P.args
83 args_pos, args_rest = args_all[:n_positional], args_all[n_positional:]
File ~/miniconda3/envs/mubind/lib/python3.9/site-packages/scanpy/plotting/_tools/__init__.py:1626, in embedding_density(adata, basis, key, groupby, group, color_map, bg_dotsize, fg_dotsize, vmax, vmin, vcenter, norm, ncols, hspace, wspace, title, show, save, ax, return_fig, **kwargs)
1623 else:
1624 _title = title
-> 1626 ax = embedding(
1627 adata,
1628 basis,
1629 dimensions=np.array(components) - 1, # Saved with 1 based indexing
1630 color=density_col_name,
1631 color_map=color_map,
1632 size=dot_sizes,
1633 vmax=vmax,
1634 vmin=vmin,
1635 vcenter=vcenter,
1636 norm=norm,
1637 save=False,
1638 title=_title,
1639 ax=ax,
1640 show=False,
1641 **kwargs,
1642 )
1643 axs.append(ax)
1645 ax = axs
File ~/miniconda3/envs/mubind/lib/python3.9/site-packages/scanpy/plotting/_tools/scatterplots.py:394, in embedding(adata, basis, color, mask_obs, gene_symbols, use_raw, sort_order, edges, edges_width, edges_color, neighbors_key, arrows, arrows_kwds, groups, components, dimensions, layer, projection, scale_factor, color_map, cmap, palette, na_color, na_in_legend, size, frameon, legend_fontsize, legend_fontweight, legend_loc, legend_fontoutline, colorbar_loc, vmax, vmin, vcenter, norm, add_outline, outline_width, outline_color, ncols, hspace, wspace, title, show, save, ax, return_fig, marker, **kwargs)
383 for s, c in [(bg_size, bg_color), (gap_size, gap_color)]:
384 ax.scatter(
385 coords[:, 0],
386 coords[:, 1],
(...)
391 **kwargs_outline,
392 )
--> 394 cax = scatter(
395 coords[:, 0],
396 coords[:, 1],
397 c=color_vector,
398 rasterized=settings._vector_friendly,
399 marker=marker[count],
400 **kwargs_scatter,
401 )
403 # remove y and x ticks
404 ax.set_yticks([])
File ~/miniconda3/envs/mubind/lib/python3.9/site-packages/matplotlib/__init__.py:1446, in _preprocess_data.<locals>.inner(ax, data, *args, **kwargs)
1443 @functools.wraps(func)
1444 def inner(ax, *args, data=None, **kwargs):
1445 if data is None:
-> 1446 return func(ax, *map(sanitize_sequence, args), **kwargs)
1448 bound = new_sig.bind(ax, *args, **kwargs)
1449 auto_label = (bound.arguments.get(label_namer)
1450 or bound.kwargs.get(label_namer))
File ~/miniconda3/envs/mubind/lib/python3.9/site-packages/matplotlib/axes/_axes.py:4692, in Axes.scatter(self, x, y, s, c, marker, cmap, norm, vmin, vmax, alpha, linewidths, edgecolors, plotnonfinite, **kwargs)
4688 keys_str = ", ".join(f"'{k}'" for k in extra_keys)
4689 _api.warn_external(
4690 "No data for colormapping provided via 'c'. "
4691 f"Parameters {keys_str} will be ignored")
-> 4692 collection._internal_update(kwargs)
4694 # Classic mode only:
4695 # ensure there are margins to allow for the
4696 # finite size of the symbols. In v2.x, margins
4697 # are present by default, so we disable this
4698 # scatter-specific override.
4699 if mpl.rcParams['_internal.classic_mode']:
File ~/miniconda3/envs/mubind/lib/python3.9/site-packages/matplotlib/artist.py:1223, in Artist._internal_update(self, kwargs)
1216 def _internal_update(self, kwargs):
1217 """
1218 Update artist properties without prenormalizing them, but generating
1219 errors as if calling `set`.
1220
1221 The lack of prenormalization is to maintain backcompatibility.
1222 """
-> 1223 return self._update_props(
1224 kwargs, "{cls.__name__}.set() got an unexpected keyword argument "
1225 "{prop_name!r}")
File ~/miniconda3/envs/mubind/lib/python3.9/site-packages/matplotlib/artist.py:1197, in Artist._update_props(self, props, errfmt)
1195 func = getattr(self, f"set_{k}", None)
1196 if not callable(func):
-> 1197 raise AttributeError(
1198 errfmt.format(cls=type(self), prop_name=k))
1199 ret.append(func(v))
1200 if ret:
AttributeError: PathCollection.set() got an unexpected keyword argument 'edge_colors'
print('here...')
notebook controller is DISPOSED.
View Jupyter <a href='command:jupyter.viewOutput'>log</a> for further details.
# test custom edge colors
sc.pl.embedding_density(ad, basis='umap', key='umap_density_dynamic_score_z1', group='dynamic', color_map='viridis', edge_colors='black')
# save="dynamic_scores_neurogenesis.pdf") # basis='umap', groupby='dynamic_score_cluster')
notebook controller is DISPOSED.
View Jupyter <a href='command:jupyter.viewOutput'>log</a> for further details.

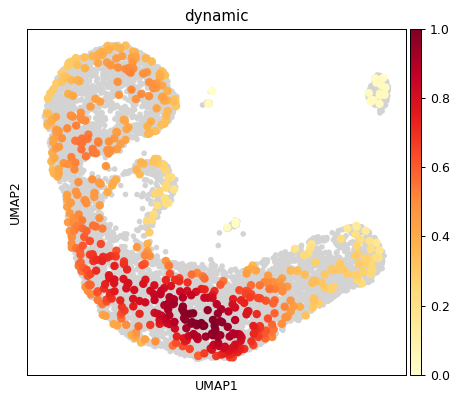

rcParams['figure.figsize'] = 5, 5
rcParams['figure.dpi'] = 80
sc.pl.embedding_density(ad, basis='umap', key='umap_density_dynamic_score_z1', group='dynamic', color_map='viridis',
save="dynamic_scores_neurogenesis.pdf") # basis='umap', groupby='dynamic_score_cluster')
# plt.savefig(
notebook controller is DISPOSED.
View Jupyter <a href='command:jupyter.viewOutput'>log</a> for further details.
!readlink -f figures/dynamic_scores_neurogenesis.pdf
notebook controller is DISPOSED.
View Jupyter <a href='command:jupyter.viewOutput'>log</a> for further details.
rcParams['pdf.fonttype'] = 42
sc.pl.umap(rna_sample, color=cell_type_key, show=False)
plt.savefig("../../../output/annotation_neurogenesis.pdf")
notebook controller is DISPOSED.
View Jupyter <a href='command:jupyter.viewOutput'>log</a> for further details.
rcParams['pdf.fonttype'] = 42
scv.pl.velocity_embedding_stream(rna_sample, color=cell_type_key, save="../../../output/velocity_stream_neurogenesis")
notebook controller is DISPOSED.
View Jupyter <a href='command:jupyter.viewOutput'>log</a> for further details.
