Mouse pancreatic endocrinogenesis (scATAC-seq) | Training with an RNA-dynamics kNN-graph
In this tutorial we demonstrate the applicability of mubind in a case where an arbitrarily complex graph is provided as a prior for the Graph Layer. The studied dataset is mouse pancreatic endocrinogenesis multiome (paired scRNA- and scATAC-seq) [Klein et al., 2023]. Raw data available in GEO
%load_ext autoreload
%autoreload 2
import os
import seaborn
cd ~/workspace/theislab/mubind/docs/notebooks/single_cell
/mnt/c/Users/IgnacioIbarra/Dropbox/workspace/theislab/mubind/docs/notebooks/single_cell
/home/ilibarra/.conda/envs/mubind/lib/python3.9/site-packages/IPython/core/magics/osm.py:393: UserWarning: using bookmarks requires you to install the `pickleshare` library.
bkms = self.shell.db.get('bookmarks', {})
/home/ilibarra/.conda/envs/mubind/lib/python3.9/site-packages/IPython/core/magics/osm.py:417: UserWarning: using dhist requires you to install the `pickleshare` library.
self.shell.db['dhist'] = compress_dhist(dhist)[-100:]
import pandas as pd
import numpy as np
import os
import torch
import itertools
import glob
import pandas as pd
from pathlib import Path
import bindome as bd
bd.constants.ANNOTATIONS_DIRECTORY = 'annotations'
import torch
import mubind as mb
from tqdm.notebook import tqdm_notebook as tqdm
# pwms = mb.datasets.cisbp_hs()
pwms = mb.datasets.archetypes()
# pwms = pwms[:20]
len(pwms)
286
import random
# reduced_groups = [p.to_numpy() for p in random.sample(pwms, 20) if p.shape[-1] != 0]
# suppress numba deprecations warnings
from numba.core.errors import NumbaDeprecationWarning, NumbaPendingDeprecationWarning
import warnings
warnings.simplefilter('ignore', category=NumbaDeprecationWarning)
warnings.simplefilter('ignore', category=NumbaPendingDeprecationWarning)
import mubind as mb
import numpy as np
import pandas as pd
import torch
import bindome as bd
# mb.models.Mubind
import torch.optim as topti
import torch.utils.data as tdata
import matplotlib.pyplot as plt
import logomaker
import os
import scipy
import pickle
# Use a GPU if available, as it should be faster.
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
print("Using device: " + str(device))
# device = 'cpu'
Using device: cuda:0
import scanpy as sc
# load the pancreas multiome dataset
rna, atac = mb.datasets.pancreas_multiome() # data_directory='../../../annotations/scatac')
rna.shape, atac.shape
True data/scatac/pancreas_multiome/pancreas_multiome_2022_processed_rna_velocities_2024.h5ad
True data/scatac/pancreas_multiome/pancreas_multiome_2022_processed_atac.h5ad
reading ATAC
opening ATAC successful
((16918, 14663), (16918, 228259))
# if rapids is available, use it
# import rapids_singlecell as rapids
# rapids.pp.neighbors(rna)
# if rapids is not avaible, default scanpy
sc.pp.neighbors(rna)
from matplotlib import rcParams
rcParams['figure.figsize'] = 5, 5

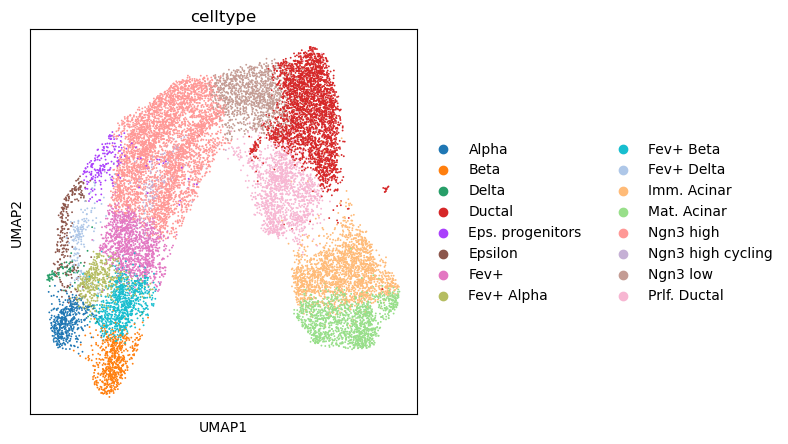

# RNA
sc.pl.umap(rna, color='celltype')

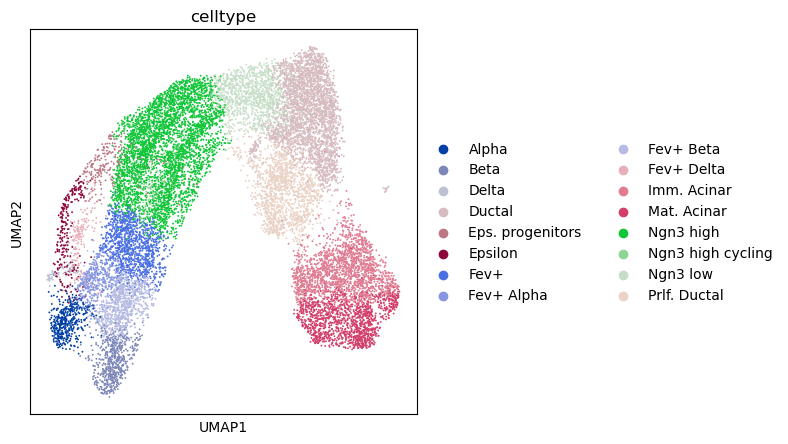

#ATAC
sc.pl.umap(atac, color='celltype')
atac.obs_names
Index(['AAACAGCCAACAGCCT-1-0', 'AAACAGCCAACCCTCC-1-0', 'AAACAGCCACCTGTAA-1-0',
'AAACAGCCACTAAGCC-1-0', 'AAACAGCCAGGATAAC-1-0', 'AAACAGCCATAAAGCA-1-0',
'AAACATGCAAGGTAAC-1-0', 'AAACATGCAAGGTGGC-1-0', 'AAACATGCACTAGGTC-1-0',
'AAACATGCAGCATTAT-1-0',
...
'TTTGTGTTCACGAATC-1-1', 'TTTGTGTTCGAGCTAT-1-1', 'TTTGTGTTCGATCAGT-1-1',
'TTTGTGTTCGCTATGG-1-1', 'TTTGTGTTCTCAATGA-1-1', 'TTTGTGTTCTTGTTCG-1-1',
'TTTGTTGGTATTGAGT-1-1', 'TTTGTTGGTCCTAAGA-1-1', 'TTTGTTGGTTAACAGT-1-1',
'TTTGTTGGTTGTTGCT-1-1'],
dtype='object', length=16918)
# to match the barcode IDs, use the prefix from RNA to match ATAC (anchor = 10 first nucleotides)
assert np.all(rna.obs_names.str[:10] == atac.obs_names.str[:10])
rna.obs_names = atac.obs_names
rna.obs_names
Index(['AAACAGCCAACAGCCT-1-0', 'AAACAGCCAACCCTCC-1-0', 'AAACAGCCACCTGTAA-1-0',
'AAACAGCCACTAAGCC-1-0', 'AAACAGCCAGGATAAC-1-0', 'AAACAGCCATAAAGCA-1-0',
'AAACATGCAAGGTAAC-1-0', 'AAACATGCAAGGTGGC-1-0', 'AAACATGCACTAGGTC-1-0',
'AAACATGCAGCATTAT-1-0',
...
'TTTGTGTTCACGAATC-1-1', 'TTTGTGTTCGAGCTAT-1-1', 'TTTGTGTTCGATCAGT-1-1',
'TTTGTGTTCGCTATGG-1-1', 'TTTGTGTTCTCAATGA-1-1', 'TTTGTGTTCTTGTTCG-1-1',
'TTTGTTGGTATTGAGT-1-1', 'TTTGTTGGTCCTAAGA-1-1', 'TTTGTTGGTTAACAGT-1-1',
'TTTGTTGGTTGTTGCT-1-1'],
dtype='object', length=16918)
acc = (atac.X != 0).sum(axis=0) / atac.shape[0]
acc_score = abs(.5 - acc)
atac.var['acc_score'] = acc_score.A.T
atac.var['acc_score_rank'] = atac.var['acc_score'].rank(ascending=False)
plt.hist(atac.var['acc_score'], bins=35)
# var_sample = atac.var.sort_values('acc_score_rank').index[:n_sample_peaks]
(array([ 782., 732., 754., 730., 746., 679., 702., 737.,
666., 657., 638., 621., 587., 636., 639., 640.,
699., 756., 778., 850., 944., 1070., 1290., 1566.,
1888., 2262., 2990., 3753., 5173., 6968., 10067., 15120.,
26728., 62772., 71639.]),
array([0. , 0.01427051, 0.02854103, 0.04281154, 0.05708206,
0.07135257, 0.08562309, 0.0998936 , 0.11416412, 0.12843463,
0.14270515, 0.15697566, 0.17124618, 0.18551669, 0.19978721,
0.21405772, 0.22832824, 0.24259875, 0.25686927, 0.27113978,
0.2854103 , 0.29968081, 0.31395133, 0.32822184, 0.34249236,
0.35676287, 0.37103339, 0.3853039 , 0.39957442, 0.41384493,
0.42811545, 0.44238596, 0.45665648, 0.47092699, 0.48519751,
0.49946802]),
<BarContainer object of 35 artists>)
atac.shape
(16918, 228259)
print('here...')
here...
Number of cells and peaks to use. Lower number for faster training
atac.shape
(16918, 228259)
# n_select = 100
# n_select = atac.shape[0] # 500 # atac.shape[0] # 1500 # atac.shape[0] # 6000
n_select = 18000
n_sample_cells = n_select
# n_sample_peaks = int(n_sample_cells * 3) # atac.shape[1] # int(n_sample_cells * 1.5) # atac.shape[1] # int(n_sample_cells * 1.5)
n_sample_peaks = 50000
print(n_sample_cells, n_sample_peaks)
18000 50000
n_cell_types = len(set(atac.obs['celltype']))
obs_sample = atac.obs.groupby('celltype').sample(int(n_sample_cells / n_cell_types), random_state=n_sample_cells, replace=True).index.drop_duplicates()
var_sample = pd.Series(atac.var_names).sample(n_sample_peaks, random_state=n_sample_peaks)
# var_sample = atac.var.sort_values('acc_score_rank').index[:n_sample_peaks]
ad = atac[atac.obs_names.isin(obs_sample),atac.var_names.isin(var_sample)].copy()
ad.shape
(8521, 50000)
ad.obs['celltype'].value_counts()
celltype
Alpha 6
Beta 6
Delta 6
Ductal 6
Eps. progenitors 6
Epsilon 6
Fev+ 6
Fev+ Alpha 6
Fev+ Beta 6
Fev+ Delta 6
Imm. Acinar 6
Mat. Acinar 6
Ngn3 high 6
Ngn3 high cycling 6
Ngn3 low 6
Prlf. Ductal 6
Name: count, dtype: int64
# ad.uns['velocity_graph'] = rna_sample.uns['velocity_graph']
# # ad.layers['velocity'] = rna_sample.layers['velocity']
# ad.uns['velocity_graph'].shape
rna_sample = rna[ad.obs_names]
mask = rna.obs_names.isin(rna_sample.obs_names)
# local one step transposition to finalize processing
vgraph = rna.uns['velocity_graph']
vgraph = vgraph[mask == 1]
vgraph = vgraph.T
vgraph = vgraph[mask == 1]
vgraph = vgraph.T
vgraph.shape
(96, 96)
# the scvelo package is a condition to explore the vector stream visualization. Not priority
import scvelo as scv
rna_sample.uns['velocity_graph'] = vgraph
try:

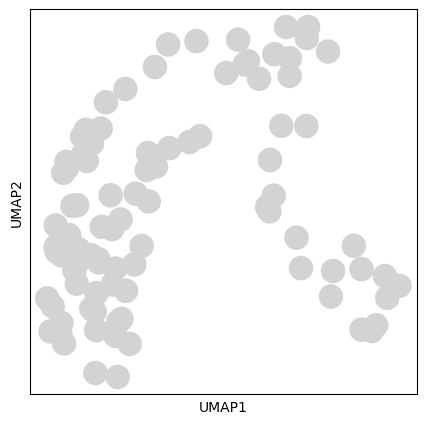

# atac
sc.pl.umap(ad)
# rna

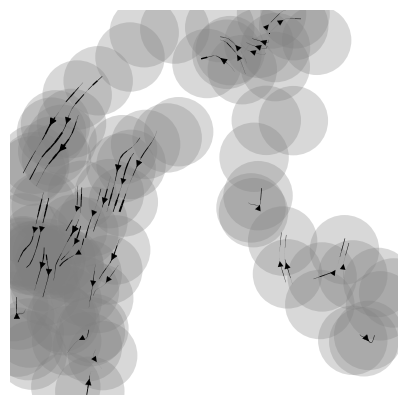

# append the estimated velocities to the sample adata
scv.pl.velocity_embedding_stream(rna_sample)
scv.pl.velocity_embedding_stream(rna_sample)
rna_sample.shape
except Exception:
print('sample too small to plot graph')
ad.var['chr'] = 'chr' + ad.var_names.str.split('-').str[0]
ad.var['start'] = ad.var_names.str.split('-').str[1].astype(int)
ad.var['end'] = ad.var_names.str.split('-').str[2].astype(int)
print('features by chromosome')
extend = 50
ad.var['chr'].value_counts()
features by chromosome
chr
chr4 6
chr11 6
chr6 5
chr1 4
chr5 4
chr3 3
chr7 3
chr16 3
chr13 3
chr18 3
chr10 2
chrX 2
chr17 2
chr9 1
chr15 1
chr12 1
chr14 1
Name: count, dtype: int64
ad.var['summit'] = ((ad.var['end'] + ad.var['start']) / 2).astype(int)
ad.var['summit.start'] = ad.var['summit'] - extend
ad.var['summit.end'] = ad.var['summit'] + extend
ad.var['k.summit'] = ad.var['chr'] + ':' + ad.var['summit.start'].astype(str) + '-' + ad.var['summit.end'].astype(str)
ad.shape
(96, 50)
n_seqs = ad.shape[1] # 10000 # adata.shape[1] # None # 1000
ad.var[['chr', 'summit.start', 'summit.end']].head(n_seqs)
| chr | summit.start | summit.end | |
|---|---|---|---|
| 1-42487195-42488155 | chr1 | 42487625 | 42487725 |
| 1-62947165-62947608 | chr1 | 62947336 | 62947436 |
| 1-133868944-133869871 | chr1 | 133869357 | 133869457 |
| 1-153480239-153481123 | chr1 | 153480631 | 153480731 |
| 3-67712380-67713308 | chr3 | 67712794 | 67712894 |
| 3-86308558-86309481 | chr3 | 86308969 | 86309069 |
| 3-151566367-151567277 | chr3 | 151566772 | 151566872 |
| 4-11497108-11497964 | chr4 | 11497486 | 11497586 |
| 4-17939150-17940092 | chr4 | 17939571 | 17939671 |
| 4-84309429-84310228 | chr4 | 84309778 | 84309878 |
| 4-134682230-134683214 | chr4 | 134682672 | 134682772 |
| 4-139832614-139833539 | chr4 | 139833026 | 139833126 |
| 4-153925753-153926692 | chr4 | 153926172 | 153926272 |
| 5-17830203-17831096 | chr5 | 17830599 | 17830699 |
| 5-47980379-47981125 | chr5 | 47980702 | 47980802 |
| 5-118556222-118557076 | chr5 | 118556599 | 118556699 |
| 5-139640538-139641449 | chr5 | 139640943 | 139641043 |
| 6-47328023-47328967 | chr6 | 47328445 | 47328545 |
| 6-66119753-66120656 | chr6 | 66120154 | 66120254 |
| 6-126118240-126119158 | chr6 | 126118649 | 126118749 |
| 6-135859310-135860051 | chr6 | 135859630 | 135859730 |
| 6-143636920-143637902 | chr6 | 143637361 | 143637461 |
| 7-79222480-79223332 | chr7 | 79222856 | 79222956 |
| 7-89140579-89141450 | chr7 | 89140964 | 89141064 |
| 7-112187538-112188430 | chr7 | 112187934 | 112188034 |
| 9-51097244-51098101 | chr9 | 51097622 | 51097722 |
| 10-80939322-80940119 | chr10 | 80939670 | 80939770 |
| 10-127081823-127082668 | chr10 | 127082195 | 127082295 |
| 11-55139964-55140861 | chr11 | 55140362 | 55140462 |
| 11-69715590-69716509 | chr11 | 69715999 | 69716099 |
| 11-85916819-85917646 | chr11 | 85917182 | 85917282 |
| 11-94229117-94229954 | chr11 | 94229485 | 94229585 |
| 11-97714240-97715171 | chr11 | 97714655 | 97714755 |
| 11-115353938-115354836 | chr11 | 115354337 | 115354437 |
| 12-52932243-52933049 | chr12 | 52932596 | 52932696 |
| 13-20466299-20467208 | chr13 | 20466703 | 20466803 |
| 13-97482334-97482865 | chr13 | 97482549 | 97482649 |
| 13-111508944-111509920 | chr13 | 111509382 | 111509482 |
| 14-77311049-77311901 | chr14 | 77311425 | 77311525 |
| 15-31335258-31336145 | chr15 | 31335651 | 31335751 |
| 16-29845195-29845980 | chr16 | 29845537 | 29845637 |
| 16-78364374-78365244 | chr16 | 78364759 | 78364859 |
| 16-97948541-97949338 | chr16 | 97948889 | 97948989 |
| 17-34872908-34873863 | chr17 | 34873335 | 34873435 |
| 17-49538818-49539730 | chr17 | 49539224 | 49539324 |
| 18-25061201-25062112 | chr18 | 25061606 | 25061706 |
| 18-34901750-34902433 | chr18 | 34902041 | 34902141 |
| 18-75188813-75189865 | chr18 | 75189289 | 75189389 |
| X-105978177-105979063 | chrX | 105978570 | 105978670 |
| X-140305285-140306221 | chrX | 140305703 | 140305803 |
seqs = mb.bindome.tl.get_sequences_from_bed(ad.var[['chr', 'summit.start', 'summit.end']].head(n_seqs), genome='mm10', uppercase=True,
gen_path='annotations/mm10/genome/mm10.fa',
bin='/home/ilibarra/.local/bin/bedtools')
# bin='/home/ilibarra/.conda/envs/mubind/bin/bedtools')
# gen_path='../../../annotations/hg38/genome/hg38.fa')
keys = set([s[0] for s in seqs])
ad = ad[:,ad.var['k.summit'].isin(keys)]
# seqs = [[s[0], s[1].upper()] for s in seqs[0]]
len(seqs)
/tmp/tmpeu1tpjmg
genome mm10 True
annotations/mm10/genome/mm10.fa
True annotations/mm10/genome/mm10.fa
running bedtools...
['/home/ilibarra/.local/bin/bedtools', 'getfasta', '-fi', 'annotations/mm10/genome/mm10.fa', '-bed', '/tmp/tmpeu1tpjmg', '-fo', '/tmp/tmp3xuf1qax']
/home/ilibarra/.local/bin/bedtools getfasta -fi annotations/mm10/genome/mm10.fa -bed /tmp/tmpeu1tpjmg -fo /tmp/tmp3xuf1qax
50
len(seqs)
50
seqs
[['chr1:42487625-42487725',
'ACCAACAATGTCTATAAATGTTCAGATTGACAGAATGGGTAAATTTTTCTAAAACATTCCTATGCTAAGGGTCTTGGCTTCAACCAGAGGCTGATTTTGC'],
['chr1:62947336-62947436',
'AAGGCTGCCCTCATCTACCTTCCCCTCCCACATCTCAGAGACCTCAGCCCAGCTAGGAAGCATTGGTTTCCAAGCAAGCTACTTCCAGTGTTGCCCAGGT'],
['chr1:133869357-133869457',
'AGCTGCCCATCTGTTCCCTGGACTGCTGGGGTGACAGGCATGTGTTACCACTCTCAGCTCTCACTTGGGTGCTGGGGATATAAACTCAGGTCCTTGTCCC'],
['chr1:153480631-153480731',
'CTAAAGTGACAGATTAGTATATAGTTTTATAATTTGTTCAAGTCAAAACAATAGGATAGATGCTGTAAATTGTGTTTCAGTATTTGTTAGAAACCTGGTC'],
['chr3:67712794-67712894',
'CATCCATTACCCATACAAAGTACATAATAATAAGGACAAGCACTTCATCTCCCTGTGTGACGGCTAGAGGTCAGACACTTGCAGGGCAACACCACACAAG'],
['chr3:86308969-86309069',
'TGGTGGGTATTTGTGTCCACTTCCTGTCTATGCTGGGATTTTTTTCTGGTTTGAATTTGTGTTGGTCTTGTGCATGTTGCTATGTAGTCTCTGTGAGTTC'],
['chr3:151566772-151566872',
'TGACCTTGATGAGATTTTTTTTTTTCCTTCCAGGTGGGTGTAATTTTTAAATTGATAAGCATGACACAACCTTTAGACGATGCTTTAGTGCCACCTGCTG'],
['chr4:11497486-11497586',
'GTACTTTATAATTTTTTTTCCCTCACAATAAGACTTAGAAATACATAGGTAAAACCAGAATTCCTATATTTCTGTCCTGAAAGGATCCAACTTTTAAATT'],
['chr4:17939571-17939671',
'TCATCATTTTCTACTTCTTGTTTGTGGATACAATGTGATTAAATCACTCAAGCTCCTGCCACATGGCTTCCTTGGCATGCTAGAACCTAATGTTTGACCT'],
['chr4:84309778-84309878',
'GAAACGCAGCTTTTCTTGCTGAAGATCAGCAGGCCTAGGGGTGACTGGATGACTTGGGACCTGCTCGGGTGTTTCCTCCACGCTATGATCTTTTCTCCTA'],
['chr4:134682672-134682772',
'TCAATCCTGAAAAGGTCTGGGTCTGACCTGTTTGGCAACACGGAGCAGATCTGCAAATTCCAGCAGCCACAGGAGGGCAGTTTTTAGGGTAACCGTGATA'],
['chr4:139833026-139833126',
'TCTTCCCCCTCCCTTCTGCACCCCCCCCCACCCGGTTGCAGACGCGCCCCTTCCAGAAGCTGGGCGCGGGGGGGGGTGAGGTGGGGGCGGGAGGAGTGGA'],
['chr4:153926172-153926272',
'ATTTATCCACGTATGCCAGCTTAAGTCATTTAAGTTTGGTGGAAATCAGCATCATGCTTTCATTTTTAATGAGCCTCTGCGTACAGCAGCCACTTCTGTC'],
['chr5:17830599-17830699',
'ATACTGGCTCTCTATATTTTGACTTTTCTAATGTTTCAAAATAGGATCTAAAGTGAAAGTGGCAATTTCCTATGTTAGTAGCCGAAATGATATTCACCCA'],
['chr5:47980702-47980802',
'TACAACAATCAAAGAGAAACTCAGAACTCCTTTGGGAGCAACAAAACCTAGGAAGAGTGAACCCTTGAAAGTGAATGTTTGGGATGCATGTAAGGCCCTT'],
['chr5:118556599-118556699',
'GCAAGATTTGTGAGCGAGGAAACGAAGTCACTGGGCACAAGGGAGGTTGCTGCACCTAAGGAACTGACTTCAAGTCCCAGCCTGGCTCTCTATTTCCCAG'],
['chr5:139640943-139641043',
'GCTTATCAGAAGCCTGGGCCGGTATGGAGGGCTTCCTGGGTGGGGTGGTATGGGGGGGGGGGCTGGGTAGCTGACAGACCCTTCACAGGAGAATTAATTA'],
['chr6:47328445-47328545',
'AATCCCTGGACAACAGAGTGATTAGGGGAGAACAATGGAGACGCACCAAGCGTGGACTCAGACTGAGCCTGCTATCAGCTCTTCCTGGGTGACTTCACTC'],
['chr6:66120154-66120254',
'GGAATCTATGTGTGTTCTTTTCAGGGAGGTCACACTGAATACATTCCTTCCTCTCCTTTGACTATTACTCATCTTTAGCTCACCTACTGGGGACAGGTAG'],
['chr6:126118649-126118749',
'AGGTCGAAATGTGTCCAAACCCCAACAATCTCGTCCTGAGACCAGCAGGAGTGAGGACTGTATCCGCCTTGCTCTGGGGCTGCAAGTTCCTGTACTCATA'],
['chr6:135859630-135859730',
'AAACAGCATGCGGCATGCTGGGTAGCATCTCCATGGCAACCGCATTGCACATCCAGAGCACTGCCAAAAACAAGTCAAGATCCAAGTAAGTAGGTGTTGC'],
['chr6:143637361-143637461',
'ATTAGATGCCATCTGATTTCAGCACTGTGTGTGTGTGTGCACACATACACACACACACACACGCACACATGCACACACACACACACGCACATGCACACAC'],
['chr7:79222856-79222956',
'CTGGAATTCCTGGAATGCCTCTCGATACAAACGAGGCATTATTCCATACCCTAAACTGTAGTCAACGATATTAACCCACCCACCTAGAAATCCCTTGCCC'],
['chr7:89140964-89141064',
'ATCTTAACCCTTTCTAAAACACCAATGACATTGAAACTGAGCTATAAAGAGCACAGCCACTGTGGTGAAAATAAACACAATCTGCCTATAGGAGGTGTGA'],
['chr7:112187934-112188034',
'AATTAGCCTGTCCCCAGGTCCCTGGGTGGGGCAAATGTGACTTGTCAAAGCCAGCCAGCAGAGGAAAGCAAAGCTGGTAGACAGCCCCAGTGGCTCCCAG'],
['chr9:51097622-51097722',
'TCCTGGAGCTCATGTTCAAGGCCAAATGTAGTGGTGCCTGTCTGTAGTCACAGCAAGGAGGAGGCAGAGACAGAGTCTTCGGGAAACTCACCAGCCAGCT'],
['chr10:80939670-80939770',
'TTCAGGTCCCTCAGTCCGCGCACAGCCTGCGGGTGCACAGACCCTGATCTCACACATGCATATCAAGCTGGATCATCCCCCGCATGCCATGAAGTCACAG'],
['chr10:127082195-127082295',
'TGTGGGGAGAGCGGCTGGGATGGGAGGACTGGGGACCACTCAGACCTGAGCCACTGCAGGCAGGGTCCTCACTCAGGGTTAGGTGAGCCCCTCAGTAAAG'],
['chr11:55140362-55140462',
'GAAAGGTGGCTGTCCTAGCTTCTTCTGTTGCTGTGACAAAACACTCTGACCAAAAGCAACATAGGAGAGGAAGGGGTTAATTCAGACTTACACCCCCAGC'],
['chr11:69715999-69716099',
'GAGGAGGACGGGAAGCAAAGGAAAACACGTGGGTGCCAGCATTCTTTAGCAATCTGTTTCTTATCTGCAGCTAGAGGGTGACCAGTTGACTCAAGCTCTT'],
['chr11:85917182-85917282',
'ACAAAGGGCACCATTCAGTAGCACCAGCAGGCCATACATCATCGGCTCAGAAGCCTGCCACATGACACTGCCTGCTTCTGCTGTGCCCTGCTTGGGGAGG'],
['chr11:94229485-94229585',
'AATTAGCTCACATTTTGGTAGACTCACTTTCACCTGACAGCAATGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTATGTGTGTGTGT'],
['chr11:97714655-97714755',
'GGACCTATGGAGGAGCAGTCAGTGCTCTACTCCTCCCTGCCTTTTTGGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTTTCTGTCTGTCGGTCTGTCCT'],
['chr11:115354337-115354437',
'TGAACCTGTGGCCTAGCGCCACCTGCTGGTGATCATGGGGAAGTTAGGCTCTGGGCCCCTACCGTTGACCACAATGGTGAGCAGGCAGTCGAAGAGGGGT'],
['chr12:52932596-52932696',
'ACATTTGAGCCATTAAAAGTGGTCATTCTCACGTTTCCAATCCTGGGAGATCCTTCAGAAGTGACCATTTCCACATTTATTTCCTGTATTCATTCCACAC'],
['chr13:20466703-20466803',
'CACACTGTTGACATTGTGGTTCTGAGTGTACAGTTGCCACTACTCAATGCATTTTCACACAGAGTTGTGATATTCCCAGCATCTGATGACAACCACTTTT'],
['chr13:97482549-97482649',
'GGTAACTGGTGCTTCTTTGTTGTGGTTGGCTCTGGGCTGCTTGCTCTCCCAGGAGAGGCTGTCTGGAATGAAGAATGAGTCACATGCTCAGGTGGCTTCT'],
['chr13:111509382-111509482',
'TATATAAAGTGGAGCACCACACCTTCTGCCCCCATTGATCAATCCTGATAACTGCCCTTTTACTTCTGTGACATCAACCTGGCTAGCTTCTGGCAGGGAG'],
['chr14:77311425-77311525',
'TCCCAGGTATTAATCCCGCATTTGTTACTTACTATTTACATGTGTTTCCACGCAGATTCTACTCCACATCCTGTACTGCTTTCCTCCCTTTGCCTGTCTT'],
['chr15:31335651-31335751',
'GGATACTCACCGATTAGCTAATCTGCCTGGTCAATAAACCCTTGGGGCCCATCTGTTACTTGCCCCAGACTCCAGAGCTCCTGACATTTTGAGGCGAGTG'],
['chr16:29845537-29845637',
'CCTGTTAGCACTAGCTGCTACACATGTCCCCCATTTTCTCTCACACGAGGGGGTGCTGTGTTTCCCTGAGAGTTTATATTTTCTTCTCTGCAAATTATTG'],
['chr16:78364759-78364859',
'GTGGTCTGCACATGCGCAGTGGCAGGCCGTGGCGGGTCTTACCTGGTACACGGGGCTTGGTGTTGCCGCCACTGAGCTGGGTTTCACGTCCACTTCCTTG'],
['chr16:97948889-97948989',
'CTCACAAAAGACAGGCAGGAAATGTCTATGTTGTGTGTACAGTTCTTGGAAAGCACATGGAAACTGCAACACGGCATTTCCTCCAATCTCTGAAGCCTCT'],
['chr17:34873335-34873435',
'GTCCCCTCTTCAGGCTCCGCCCCCTCTTCTGATCCCTCCCCTCTTTTGCCCCCCCCCCCCCGAATCTGTCTATGGTGCTTGCTTCACCCTCTACTGTCCA'],
['chr17:49539224-49539324',
'GGGGGGGTTGGGCAGCTGGAGAAGGGGCTTCAGGAGGAGCCAATCCACTTCCTTCTGGCTCTGAAGTCCGCACTTATTTTCCTGGCCTGGATCACGGCTG'],
['chr18:25061606-25061706',
'CCCTTTTCCTCTACAACCTGCAGTTACTGACTCTGACACCAGATGGCGATATAGTATGGGGAGAGAGATGGGCTCAGTTTATGCCTTTTGTACTGGAGCC'],
['chr18:34902041-34902141',
'CAGCACTGCCTTTTGTTCTCCCAGGTTTTCAAAGCAGGGTCTTCTGTGTTCTCCTGGCTGTCCTGTAACCACCTGGCTCTGCCTCCCAAGTGCTAGGATT'],
['chr18:75189289-75189389',
'TGAGTTCTAGAGTATACAATCATCCACTTCTCTTAATGTCCACCTATTCCTTGTCTCCGACTTTTCTCATCTGTTGCCATGATGTTAAATTCAGGTGGTA'],
['chrX:105978570-105978670',
'CATGAGTGGGAAGAGATGGTGAGCATGGAGGCTGAGGCAGGAGGCTTGGAAGTTTCACCTCTGGCTGGCAAGACGGCTCAGTGGGTAAGAGCACTGACTG'],
['chrX:140305703-140305803',
'TCGCCCAGCATTTAATCAGCTTCCTGACAGATCCCAGTAAAAGGGAGATGAATTTACGAGATTGATTAGCTAAATCCCCAAGTGCTGTGCTTACTCCGTG']]
# remove Ns
for s in seqs:
if 'N' in s:
assert False
# seqs = [[s[0], s[1].replace('N', '')] for s in seqs]
counts = ad.X.T
ad.X
<Compressed Sparse Row sparse matrix of dtype 'float32'
with 193 stored elements and shape (96, 50)>
counts.shape
(50, 96)
import scipy
next_data = pd.DataFrame(counts.A) # sparse.from_spmatrix(counts.A)
next_data['var'] = next_data.var(axis=1)
# next_data = next_data[range(100)].copy()
next_data.shape
(50, 97)
next_data.shape
(50, 97)
next_data.index = [s[1] for s in seqs]
next_data.index.name = 'seq'
next_data.shape
(50, 97)
next_data = next_data[~next_data.index.str.contains('N')]
next_data.shape
(50, 97)
# sum_index = next_data[next_data.columns[:-1]].var(axis=1).sort_values(ascending=False).index
next_data
| 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ... | 87 | 88 | 89 | 90 | 91 | 92 | 93 | 94 | 95 | var | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| seq | |||||||||||||||||||||
| ACCAACAATGTCTATAAATGTTCAGATTGACAGAATGGGTAAATTTTTCTAAAACATTCCTATGCTAAGGGTCTTGGCTTCAACCAGAGGCTGATTTTGC | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 2.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.061404 |
| AAGGCTGCCCTCATCTACCTTCCCCTCCCACATCTCAGAGACCTCAGCCCAGCTAGGAAGCATTGGTTTCCAAGCAAGCTACTTCCAGTGTTGCCCAGGT | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.030592 |
| AGCTGCCCATCTGTTCCCTGGACTGCTGGGGTGACAGGCATGTGTTACCACTCTCAGCTCTCACTTGGGTGCTGGGGATATAAACTCAGGTCCTTGTCCC | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1.0 | 0.030592 |
| CTAAAGTGACAGATTAGTATATAGTTTTATAATTTGTTCAAGTCAAAACAATAGGATAGATGCTGTAAATTGTGTTTCAGTATTTGTTAGAAACCTGGTC | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 1.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.115351 |
| CATCCATTACCCATACAAAGTACATAATAATAAGGACAAGCACTTCATCTCCCTGTGTGACGGCTAGAGGTCAGACACTTGCAGGGCAACACCACACAAG | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.010417 |
| TGGTGGGTATTTGTGTCCACTTCCTGTCTATGCTGGGATTTTTTTCTGGTTTGAATTTGTGTTGGTCTTGTGCATGTTGCTATGTAGTCTCTGTGAGTTC | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.070943 |
| TGACCTTGATGAGATTTTTTTTTTTCCTTCCAGGTGGGTGTAATTTTTAAATTGATAAGCATGACACAACCTTTAGACGATGCTTTAGTGCCACCTGCTG | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.061404 |
| GTACTTTATAATTTTTTTTCCCTCACAATAAGACTTAGAAATACATAGGTAAAACCAGAATTCCTATATTTCTGTCCTGAAAGGATCCAACTTTTAAATT | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 1.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.040351 |
| TCATCATTTTCTACTTCTTGTTTGTGGATACAATGTGATTAAATCACTCAAGCTCCTGCCACATGGCTTCCTTGGCATGCTAGAACCTAATGTTTGACCT | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.030592 |
| GAAACGCAGCTTTTCTTGCTGAAGATCAGCAGGCCTAGGGGTGACTGGATGACTTGGGACCTGCTCGGGTGTTTCCTCCACGCTATGATCTTTTCTCCTA | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.010417 |
| TCAATCCTGAAAAGGTCTGGGTCTGACCTGTTTGGCAACACGGAGCAGATCTGCAAATTCCAGCAGCCACAGGAGGGCAGTTTTTAGGGTAACCGTGATA | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.040351 |
| TCTTCCCCCTCCCTTCTGCACCCCCCCCCACCCGGTTGCAGACGCGCCCCTTCCAGAAGCTGGGCGCGGGGGGGGGTGAGGTGGGGGCGGGAGGAGTGGA | 1.0 | 0.0 | 0.0 | 0.0 | 1.0 | 1.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.146930 |
| ATTTATCCACGTATGCCAGCTTAAGTCATTTAAGTTTGGTGGAAATCAGCATCATGCTTTCATTTTTAATGAGCCTCTGCGTACAGCAGCCACTTCTGTC | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1.0 | 0.061404 |
| ATACTGGCTCTCTATATTTTGACTTTTCTAATGTTTCAAAATAGGATCTAAAGTGAAAGTGGCAATTTCCTATGTTAGTAGCCGAAATGATATTCACCCA | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.010417 |
| TACAACAATCAAAGAGAAACTCAGAACTCCTTTGGGAGCAACAAAACCTAGGAAGAGTGAACCCTTGAAAGTGAATGTTTGGGATGCATGTAAGGCCCTT | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.020614 |
| GCAAGATTTGTGAGCGAGGAAACGAAGTCACTGGGCACAAGGGAGGTTGCTGCACCTAAGGAACTGACTTCAAGTCCCAGCCTGGCTCTCTATTTCCCAG | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.049890 |
| GCTTATCAGAAGCCTGGGCCGGTATGGAGGGCTTCCTGGGTGGGGTGGTATGGGGGGGGGGGCTGGGTAGCTGACAGACCCTTCACAGGAGAATTAATTA | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1.0 | 0.0 | 0.0 | 0.0 | 0.077193 |
| AATCCCTGGACAACAGAGTGATTAGGGGAGAACAATGGAGACGCACCAAGCGTGGACTCAGACTGAGCCTGCTATCAGCTCTTCCTGGGTGACTTCACTC | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.020614 |
| GGAATCTATGTGTGTTCTTTTCAGGGAGGTCACACTGAATACATTCCTTCCTCTCCTTTGACTATTACTCATCTTTAGCTCACCTACTGGGGACAGGTAG | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.020614 |
| AGGTCGAAATGTGTCCAAACCCCAACAATCTCGTCCTGAGACCAGCAGGAGTGAGGACTGTATCCGCCTTGCTCTGGGGCTGCAAGTTCCTGTACTCATA | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 2.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.051645 |
| AAACAGCATGCGGCATGCTGGGTAGCATCTCCATGGCAACCGCATTGCACATCCAGAGCACTGCCAAAAACAAGTCAAGATCCAAGTAAGTAGGTGTTGC | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.000000 |
| ATTAGATGCCATCTGATTTCAGCACTGTGTGTGTGTGTGCACACATACACACACACACACACGCACACATGCACACACACACACACGCACATGCACACAC | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.000000 |
| CTGGAATTCCTGGAATGCCTCTCGATACAAACGAGGCATTATTCCATACCCTAAACTGTAGTCAACGATATTAACCCACCCACCTAGAAATCCCTTGCCC | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.010417 |
| ATCTTAACCCTTTCTAAAACACCAATGACATTGAAACTGAGCTATAAAGAGCACAGCCACTGTGGTGAAAATAAACACAATCTGCCTATAGGAGGTGTGA | 2.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.199561 |
| AATTAGCCTGTCCCCAGGTCCCTGGGTGGGGCAAATGTGACTTGTCAAAGCCAGCCAGCAGAGGAAAGCAAAGCTGGTAGACAGCCCCAGTGGCTCCCAG | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.059211 |
| TCCTGGAGCTCATGTTCAAGGCCAAATGTAGTGGTGCCTGTCTGTAGTCACAGCAAGGAGGAGGCAGAGACAGAGTCTTCGGGAAACTCACCAGCCAGCT | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.010417 |
| TTCAGGTCCCTCAGTCCGCGCACAGCCTGCGGGTGCACAGACCCTGATCTCACACATGCATATCAAGCTGGATCATCCCCCGCATGCCATGAAGTCACAG | 0.0 | 2.0 | 0.0 | 0.0 | 1.0 | 1.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1.0 | 0.0 | 0.0 | 0.0 | 0.289364 |
| TGTGGGGAGAGCGGCTGGGATGGGAGGACTGGGGACCACTCAGACCTGAGCCACTGCAGGCAGGGTCCTCACTCAGGGTTAGGTGAGCCCCTCAGTAAAG | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 2.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 2.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.181469 |
| GAAAGGTGGCTGTCCTAGCTTCTTCTGTTGCTGTGACAAAACACTCTGACCAAAAGCAACATAGGAGAGGAAGGGGTTAATTCAGACTTACACCCCCAGC | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.010417 |
| GAGGAGGACGGGAAGCAAAGGAAAACACGTGGGTGCCAGCATTCTTTAGCAATCTGTTTCTTATCTGCAGCTAGAGGGTGACCAGTTGACTCAAGCTCTT | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1.0 | 0.0 | 0.0 | 0.077193 |
| ACAAAGGGCACCATTCAGTAGCACCAGCAGGCCATACATCATCGGCTCAGAAGCCTGCCACATGACACTGCCTGCTTCTGCTGTGCCCTGCTTGGGGAGG | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1.0 | 0.0 | 0.0 | 1.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.152632 |
| AATTAGCTCACATTTTGGTAGACTCACTTTCACCTGACAGCAATGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTATGTGTGTGTGT | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.020614 |
| GGACCTATGGAGGAGCAGTCAGTGCTCTACTCCTCCCTGCCTTTTTGGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTGTTTCTGTCTGTCGGTCTGTCCT | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.010417 |
| TGAACCTGTGGCCTAGCGCCACCTGCTGGTGATCATGGGGAAGTTAGGCTCTGGGCCCCTACCGTTGACCACAATGGTGAGCAGGCAGTCGAAGAGGGGT | 1.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1.0 | 1.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1.0 | 0.0 | 0.175000 |
| ACATTTGAGCCATTAAAAGTGGTCATTCTCACGTTTCCAATCCTGGGAGATCCTTCAGAAGTGACCATTTCCACATTTATTTCCTGTATTCATTCCACAC | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.010417 |
| CACACTGTTGACATTGTGGTTCTGAGTGTACAGTTGCCACTACTCAATGCATTTTCACACAGAGTTGTGATATTCCCAGCATCTGATGACAACCACTTTT | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 1.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.020614 |
| GGTAACTGGTGCTTCTTTGTTGTGGTTGGCTCTGGGCTGCTTGCTCTCCCAGGAGAGGCTGTCTGGAATGAAGAATGAGTCACATGCTCAGGTGGCTTCT | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.000000 |
| TATATAAAGTGGAGCACCACACCTTCTGCCCCCATTGATCAATCCTGATAACTGCCCTTTTACTTCTGTGACATCAACCTGGCTAGCTTCTGGCAGGGAG | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.000000 |
| TCCCAGGTATTAATCCCGCATTTGTTACTTACTATTTACATGTGTTTCCACGCAGATTCTACTCCACATCCTGTACTGCTTTCCTCCCTTTGCCTGTCTT | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 1.0 | 0.0 | 1.0 | 2.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.089364 |
| GGATACTCACCGATTAGCTAATCTGCCTGGTCAATAAACCCTTGGGGCCCATCTGTTACTTGCCCCAGACTCCAGAGCTCCTGACATTTTGAGGCGAGTG | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 1.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1.0 | 0.030592 |
| CCTGTTAGCACTAGCTGCTACACATGTCCCCCATTTTCTCTCACACGAGGGGGTGCTGTGTTTCCCTGAGAGTTTATATTTTCTTCTCTGCAAATTATTG | 0.0 | 1.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.010417 |
| GTGGTCTGCACATGCGCAGTGGCAGGCCGTGGCGGGTCTTACCTGGTACACGGGGCTTGGTGTTGCCGCCACTGAGCTGGGTTTCACGTCCACTTCCTTG | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.113048 |
| CTCACAAAAGACAGGCAGGAAATGTCTATGTTGTGTGTACAGTTCTTGGAAAGCACATGGAAACTGCAACACGGCATTTCCTCCAATCTCTGAAGCCTCT | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.020614 |
| GTCCCCTCTTCAGGCTCCGCCCCCTCTTCTGATCCCTCCCCTCTTTTGCCCCCCCCCCCCCGAATCTGTCTATGGTGCTTGCTTCACCCTCTACTGTCCA | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.030592 |
| GGGGGGGTTGGGCAGCTGGAGAAGGGGCTTCAGGAGGAGCCAATCCACTTCCTTCTGGCTCTGAAGTCCGCACTTATTTTCCTGGCCTGGATCACGGCTG | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.059211 |
| CCCTTTTCCTCTACAACCTGCAGTTACTGACTCTGACACCAGATGGCGATATAGTATGGGGAGAGAGATGGGCTCAGTTTATGCCTTTTGTACTGGAGCC | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 1.0 | 0.0 | 0.040351 |
| CAGCACTGCCTTTTGTTCTCCCAGGTTTTCAAAGCAGGGTCTTCTGTGTTCTCCTGGCTGTCCTGTAACCACCTGGCTCTGCCTCCCAAGTGCTAGGATT | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.093750 |
| TGAGTTCTAGAGTATACAATCATCCACTTCTCTTAATGTCCACCTATTCCTTGTCTCCGACTTTTCTCATCTGTTGCCATGATGTTAAATTCAGGTGGTA | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.010417 |
| CATGAGTGGGAAGAGATGGTGAGCATGGAGGCTGAGGCAGGAGGCTTGGAAGTTTCACCTCTGGCTGGCAAGACGGCTCAGTGGGTAAGAGCACTGACTG | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.000000 |
| TCGCCCAGCATTTAATCAGCTTCCTGACAGATCCCAGTAAAAGGGAGATGAATTTACGAGATTGATTAGCTAAATCCCCAAGTGCTGTGCTTACTCCGTG | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | ... | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.061404 |
50 rows × 97 columns
# n_cells = next_data.shape[1] # 10000
# top_var = next_data[['var']].sort_values('var', ascending=False).index[:n_cells]
# next_data.index
# next_data = next_data.head(10000)
# next_data_sel = next_data.reindex(top_var) # .reset_index(drop=True)
next_data_sel = next_data
next_data_sel.shape
(50, 97)
del next_data_sel['var']
# next_data_sel.index = next_data_sel['seq']
# del next_data_sel['seq']
df = next_data_sel.copy() # sample
# df = df[df.columns[:5000]] # .head(100) # sample
# shorten sequences/remove duplicates
# df.index = df.index.astype(str).str[35:-35]
# df = df[~df.index.duplicated(keep='first')]
zero_counts = df.sum(axis=1) == 0
df = df[~zero_counts] # remove zeroes
df.shape
(45, 96)
ad.shape, df.shape
((96, 50), (45, 96))
ad.shape
(96, 50)
ad.shape
(96, 50)
# ad = ad[:,~zero_counts].copy()
print('here...')
here...
# df2 = df.reset_index().melt('seq').set_index('seq')
# # add a baseline count
# df2[0] = 1.0
# cols = ['batch', 1, 0]
# df2.columns = cols
# df2 = df2[[0, 1, 'batch']] # cols[::-1]]
# df2['batch'] = df2['batch'].astype(int)
# print(df2.shape)
# print(len(set(df2['batch'])))
# n_cells = 200
# df2 = df2[df2['batch'].isin(range(0, n_cells))]
# print(df2['batch'].value_counts())
# df2.head()
Simple motif enrichment
use_kmers = False
if use_kmers:
kmers_by_module = {}
pwm_by_module = {}
glossary_kmers_dir = '../../../../../zaugglab/apobec2_data_analysis/src/analyses_2023_new_sample/Glossary Modules'
for f in os.listdir(glossary_kmers_dir):
if not f.endswith('.xlsx'):
continue
name = f.replace('Glossary_module_', '').replace('.xlsx', '')
kmers = pd.read_excel(os.path.join(glossary_kmers_dir, f), sheet_name='8mers')
kmers_by_module[name] = kmers[kmers.columns[0]]
pwm = pd.read_excel(os.path.join(glossary_kmers_dir, f), sheet_name='PWM', index_col=0)
pwm_by_module[name] = pwm
Generate pos and neg
# import ushuffle
# fg = df.index
# bg = []
# for i, s in enumerate(fg):
# # print(i, s)
# bg.append(ushuffle.shuffle(str.encode(s), 2))
# for a, b in zip(fg, bg):
# # print(len(a[1]), len(b))
# assert len(a) == len(b)
frac_acc = (df > 0).sum(axis=0) / df.shape[1]
reduced_groups = pwms
# save for probound
# df.to_csv('probound_input_pancreatic_scatac.csv.gz')
dataset = mb.datasets.SelexDataset(df, n_rounds=df.shape[1], enr_series=False)
n_batch = len(set(dataset.batch))
n_kernels = len(pwms)
train = tdata.DataLoader(dataset=dataset, batch_size=128, shuffle=True)
# df_neg = df.copy()
# df_neg.index = bg
# df_neg.index = df_neg.index.astype(str)
# dataset_neg = mb.datasets.SelexDataset(df_neg, n_rounds=df_neg.shape[1], enr_series=False)
# train_neg = tdata.DataLoader(dataset=dataset_neg, batch_size=512, shuffle=True)
The parameter log_dynamic defines whether a kNN-graph will be used
len(pwms)
286
# for unit tests
# torch.save(train, '../../../tests/_data/pancreas_multiome.pth')
# ad.write('../../../tests/_data/pancreas_multiome.h5ad', compression='lzf')
rna_sample.shape, ad.shape
((96, 14663), (96, 50))
criterion = mb.tl.PoissonLoss()
w = [r.shape[1] for r in pwms]
optimize_log_dynamic = True
model = mb.models.Mubind.make_model(train, n_kernels, criterion, kernels=[0, 2,] + w, # [0, 2] + w,
# use_dinuc=True, dinuc_mode='full',
optimize_sym_weight=False,
optimize_exp_barrier=True,
optimize_prob_act=True,
optimize_log_dynamic=optimize_log_dynamic,
use_dinuc=False,
device=device,
p_dropout=0.8,
prepare_knn=optimize_log_dynamic,
velocity_graph=vgraph,
knn_free_weights=False,
adata=None if not optimize_log_dynamic else ad,
dinuc_mode=None)
print('no err')
(96, 96)
setting up log dynamic
no err
for i, batch in enumerate(train):
# print(i, 'batches out of', n_batches)
# Get a batch and potentially send it to GPU memory.
mononuc = batch["mononuc"] # .to(self.device)
# print(mononuc.shape)
import torch.optim as topti
import warnings
model_by_logdynamic = {}
n_epochs_intercept = 15
n_epochs_kernel = 15
log_each=75
n_unfreeze_kernels=70
for optimize_log_dynamic in [True, False]:
warnings.filterwarnings("ignore")
criterion = mb.tl.PoissonLoss()
w = [r.shape[1] for r in pwms]
model = mb.models.Mubind.make_model(train, n_kernels, criterion, kernels=[0, 2,] + w, # [0, 2] + w,
# use_dinuc=True, dinuc_mode='full',
optimize_sym_weight=False,
optimize_exp_barrier=True,
optimize_prob_act=True,
optimize_log_dynamic=optimize_log_dynamic,
use_dinuc=False,
device=device,
p_dropout=0.8,
prepare_knn=optimize_log_dynamic,
knn_free_weights=False,
adata=None if not optimize_log_dynamic else ad,
dinuc_mode=None).cuda()
# initialize the reduce kernels
for i, mono_best in enumerate(pwms):
mono_best = mono_best.to_numpy()
if mono_best.shape[-1] == 0:
continue
# print(mono_best.shape, model.binding_modes.conv_mono[i + 1].weight.shape)
# print(model.binding_modes.conv_mono[i + 1].weight.device)
new_w = mono_best.reshape([1, 1] + list(mono_best.shape))
# print(i, i + 1)
# assert False
model.binding_modes.conv_mono[i + 2].weight = torch.nn.Parameter(torch.tensor(new_w, dtype=torch.float).squeeze(1))
# print(model.binding_modes.conv_mono[i + 1].weight.device)
# move the model a final time to the GPU
model = model.to(device)
mb.pl.set_rcParams({'figure.figsize': [15, 3], 'figure.dpi': 90})
mb.pl.logo(model,
title=False,
xticks=False,
rowspan_dinuc=0,
rowspan_mono=1,
n_rows=5,
n_cols=12,
stop_at=10 ) # n_cols=len(reduced_groups))
mb.pl.set_rcParams({'figure.figsize': [20, 5], 'figure.dpi': 100})
# mb.pl.conv(model, n_cols=2)
import torch.nn as tnn
model.graph_module.use_hadamard = True
model, best_loss = model.optimize_iterative(train,
n_epochs=[n_epochs_intercept] + [n_epochs_kernel] * (n_kernels + 1),
show_logo=False,
use_mono=True, use_dinuc=False, dinuc_mode='local',
opt_kernel_shift=[0, 0] + [0] * (n_kernels),
opt_kernel_length=[0, 0] + [0] * (n_kernels),
opt_one_step=True,
shift_max=1, shift_step=1,
# optimiser=topti.SGD,
optimiser=topti.Adam,
rel_chg_early_stop=5e-3,
n_unfreeze_kernels=n_unfreeze_kernels,
# skip_kernels=list(range(1, 2)) + list(range(5, 500)),
n_batches=1, n_rounds=2, num_epochs_shift_factor=1, # log_etas=log_etas, # log_etas=log_etas,
kernels = [0] + [2] + [20] * (n_kernels), r2_per_epoch=True,
exp_max=8,
early_stopping=4, log_each=log_each, w=20, max_w=20) # target_dim=train.dataset.signal.shape[1])
model_by_logdynamic[optimize_log_dynamic] = model
setting up log dynamic
break
verbose=2
current kernel 0
### next filter to optimize 0 (intercept)
FREEZING KERNELS
optimizing feature type mono
next kernels 0-69, n=70
filters mask None
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:05<00:00, 2.53it/s]
Current time: 2024-08-27 00:03:19.020417
Loss: 491.408 , R2: 0.053
Training time (model/function): (5.943s / 5.943s)
per epoch (model/function): (0.424s/ 0.424s)
per 1k samples: 9.433s

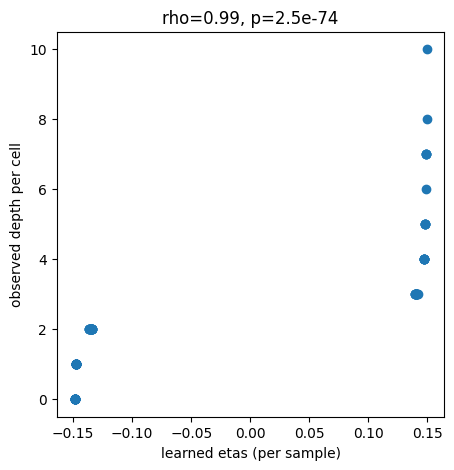

('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9863530232436334, pvalue=1.885508493841139e-75))
optimization of dinuc is not valid for the intercept (filter=0). Skip...
current kernel 70
### next filter to optimize 70
FREEZING KERNELS
optimizing feature type mono
next kernels 70-139, n=70
filters mask None
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 9.41it/s]
Current time: 2024-08-27 00:03:20.744193
Loss: 482.798 , R2: 0.053
Training time (model/function): (7.540s / 1.597s)
per epoch (model/function): (0.539s/ 0.114s)
per 1k samples: 2.535s
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9863530232436334, pvalue=1.885508493841139e-75))
final refinement step (after shift)...unfreezing all layers
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 8.67it/s]
Current time: 2024-08-27 00:03:22.590984
Loss: 245.507 , R2: 0.053
Training time (model/function): (9.276s / 1.736s)
per epoch (model/function): (0.663s/ 0.124s)
per 1k samples: 2.756s
best loss 245.507
last five r2 values, by sequential filter optimization: ['0.053']
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9863530232436334, pvalue=1.885508493841139e-75))
optimizing feature type dinuc
the optimization of dinucleotide features is skipped...
current kernel 140
### next filter to optimize 140
FREEZING KERNELS
optimizing feature type mono
next kernels 140-209, n=70
filters mask None
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 10.92it/s]
Current time: 2024-08-27 00:03:24.154004
Loss: 463.880 , R2: 0.053
Training time (model/function): (10.653s / 1.377s)
per epoch (model/function): (0.761s/ 0.098s)
per 1k samples: 2.186s
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9863530232436334, pvalue=1.885508493841139e-75))
final refinement step (after shift)...unfreezing all layers
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 10.99it/s]
Current time: 2024-08-27 00:03:25.611197
Loss: 226.356 , R2: 0.053
Training time (model/function): (12.021s / 1.368s)
per epoch (model/function): (0.859s/ 0.098s)
per 1k samples: 2.172s
best loss 226.356
last five r2 values, by sequential filter optimization: ['0.053', '0.053']
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9863530232436334, pvalue=1.885508493841139e-75))
optimizing feature type dinuc
the optimization of dinucleotide features is skipped...
current kernel 210
### next filter to optimize 210
FREEZING KERNELS
optimizing feature type mono
next kernels 210-279, n=70
filters mask None
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 11.62it/s]
Current time: 2024-08-27 00:03:27.065108
Loss: 445.178 , R2: 0.053
Training time (model/function): (13.314s / 1.294s)
per epoch (model/function): (0.951s/ 0.092s)
per 1k samples: 2.053s
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9863530232436334, pvalue=1.885508493841139e-75))
final refinement step (after shift)...unfreezing all layers
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 11.31it/s]
Current time: 2024-08-27 00:03:28.482866
Loss: 208.615 , R2: 0.053
Training time (model/function): (14.644s / 1.329s)
per epoch (model/function): (1.046s/ 0.095s)
per 1k samples: 2.110s
best loss 208.615
last five r2 values, by sequential filter optimization: ['0.053', '0.053', '0.053']
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9863530232436334, pvalue=1.885508493841139e-75))
optimizing feature type dinuc
the optimization of dinucleotide features is skipped...
current kernel 280
### next filter to optimize 280
FREEZING KERNELS
optimizing feature type mono
next kernels 280-349, n=70
filters mask None
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 10.08it/s]
Current time: 2024-08-27 00:03:30.149336
Loss: 428.727 , R2: 0.053
Training time (model/function): (16.135s / 1.492s)
per epoch (model/function): (1.153s/ 0.107s)
per 1k samples: 2.367s
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9863530232436334, pvalue=1.885508493841139e-75))
final refinement step (after shift)...unfreezing all layers
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 10.05it/s]
Current time: 2024-08-27 00:03:31.756061
Loss: 193.628 , R2: 0.053
Training time (model/function): (17.630s / 1.495s)
per epoch (model/function): (1.259s/ 0.107s)
per 1k samples: 2.373s
best loss 193.628
last five r2 values, by sequential filter optimization: ['0.053', '0.053', '0.053', '0.053']
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9863530232436334, pvalue=1.885508493841139e-75))
optimizing feature type dinuc
the optimization of dinucleotide features is skipped...
optimization finished:
total time: 17.63041663169861s
Time per epoch (total): 0.004 s
break
verbose=2
current kernel 0
### next filter to optimize 0 (intercept)
FREEZING KERNELS
optimizing feature type mono
next kernels 0-69, n=70
filters mask None
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 12.23it/s]
Current time: 2024-08-27 00:03:36.388593
Loss: 491.360 , R2: 0.058
Training time (model/function): (1.230s / 1.230s)
per epoch (model/function): (0.088s/ 0.088s)
per 1k samples: 1.953s
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9855756636883769, pvalue=2.5036006799198427e-74))
optimization of dinuc is not valid for the intercept (filter=0). Skip...
current kernel 70
### next filter to optimize 70
FREEZING KERNELS
optimizing feature type mono
next kernels 70-139, n=70
filters mask None
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 11.22it/s]
Current time: 2024-08-27 00:03:37.857550
Loss: 482.791 , R2: 0.063
Training time (model/function): (2.572s / 1.342s)
per epoch (model/function): (0.184s/ 0.096s)
per 1k samples: 2.130s
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9855756636883769, pvalue=2.5036006799198427e-74))
final refinement step (after shift)...unfreezing all layers
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 7.56it/s]
Current time: 2024-08-27 00:03:39.990262
Loss: 245.504 , R2: 0.062
Training time (model/function): (4.561s / 1.989s)
per epoch (model/function): (0.326s/ 0.142s)
per 1k samples: 3.157s
best loss 245.504
last five r2 values, by sequential filter optimization: ['0.062']
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9855756636883769, pvalue=2.5036006799198427e-74))
optimizing feature type dinuc
the optimization of dinucleotide features is skipped...
current kernel 140
### next filter to optimize 140
FREEZING KERNELS
optimizing feature type mono
next kernels 140-209, n=70
filters mask None
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 12.00it/s]
Current time: 2024-08-27 00:03:41.441683
Loss: 463.880 , R2: 0.069
Training time (model/function): (5.815s / 1.254s)
per epoch (model/function): (0.415s/ 0.090s)
per 1k samples: 1.990s
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9855756636883769, pvalue=2.5036006799198427e-74))
final refinement step (after shift)...unfreezing all layers
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 9.67it/s]
Current time: 2024-08-27 00:03:43.108939
Loss: 226.352 , R2: 0.067
Training time (model/function): (7.369s / 1.554s)
per epoch (model/function): (0.526s/ 0.111s)
per 1k samples: 2.467s
best loss 226.352
last five r2 values, by sequential filter optimization: ['0.062', '0.068']
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9855756636883769, pvalue=2.5036006799198427e-74))
optimizing feature type dinuc
the optimization of dinucleotide features is skipped...
current kernel 210
### next filter to optimize 210
FREEZING KERNELS
optimizing feature type mono
next kernels 210-279, n=70
filters mask None
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 12.18it/s]
Current time: 2024-08-27 00:03:44.529860
Loss: 445.160 , R2: 0.074
Training time (model/function): (8.604s / 1.235s)
per epoch (model/function): (0.615s/ 0.088s)
per 1k samples: 1.961s
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9855756636883769, pvalue=2.5036006799198427e-74))
final refinement step (after shift)...unfreezing all layers
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 13.11it/s]
Current time: 2024-08-27 00:03:45.764880
Loss: 208.608 , R2: 0.073
Training time (model/function): (9.752s / 1.148s)
per epoch (model/function): (0.697s/ 0.082s)
per 1k samples: 1.822s
best loss 208.608
last five r2 values, by sequential filter optimization: ['0.062', '0.068', '0.072']
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9855756636883769, pvalue=2.5036006799198427e-74))
optimizing feature type dinuc
the optimization of dinucleotide features is skipped...
current kernel 280
### next filter to optimize 280
FREEZING KERNELS
optimizing feature type mono
next kernels 280-349, n=70
filters mask None
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 12.18it/s]
Current time: 2024-08-27 00:03:47.181287
Loss: 428.700 , R2: 0.076
Training time (model/function): (10.987s / 1.235s)
per epoch (model/function): (0.785s/ 0.088s)
per 1k samples: 1.960s
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9855756636883769, pvalue=2.5036006799198427e-74))
final refinement step (after shift)...unfreezing all layers
optimizer: Adam , criterion: PoissonLoss
epochs: 15
early_stopping: 4
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:01<00:00, 11.46it/s]
Current time: 2024-08-27 00:03:48.607953
Loss: 193.621 , R2: 0.075
Training time (model/function): (12.300s / 1.313s)
per epoch (model/function): (0.879s/ 0.094s)
per 1k samples: 2.084s
best loss 193.621
last five r2 values, by sequential filter optimization: ['0.062', '0.068', '0.072', '0.076']
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.9855756636883769, pvalue=2.5036006799198427e-74))
optimizing feature type dinuc
the optimization of dinucleotide features is skipped...
optimization finished:
total time: 12.299533128738403s
Time per epoch (total): 0.003 s
## correlation between etas and observed counts per cell
rcParams['figure.figsize'] = 5, 5
etas = model.get_log_etas()
lib_sizes = train.dataset.rounds.sum(axis=0)
etas.shape, lib_sizes.shape
from scipy.stats import spearmanr
a = etas.detach().cpu().flatten()
b = lib_sizes.flatten()
plt.scatter(a, b)
plt.title('rho=%.2f, p=%.2g' % spearmanr(a, b))
plt.ylabel('observed depth per cell')
plt.xlabel('learned etas (per sample)')
Text(0.5, 0, 'learned etas (per sample)')
save_output = True
if save_output:
save_code = '_obs%i_var%i' % (ad.shape[0], ad.shape[1])
for use_logdynamic in [False, True]:
p = 'pancreas_multiome_use_logdynamic_%i' % (use_logdynamic) + save_code + '.h5ad'
print(p)
torch.save(model_by_logdynamic[use_logdynamic], p)
ad.write('atac_train%s.h5ad' % save_code)
rna_sample.write('rna_sample_train%s.h5ad' % save_code)
import pickle
pickle.dump(train, open('train_dataloader%s.pkl' % save_code, 'wb'))
pancreas_multiome_use_logdynamic_0_obs96_var50.pth
pancreas_multiome_use_logdynamic_1_obs96_var50.pth
ls -lhtr rna_sample_train_obs8161*
-rwxrwxrwx 1 ilibarra ilibarra 2.6G Aug 30 11:55 rna_sample_train_obs8161.h5ad*
ls -lhtr train_dataloader_obs8161*
-rwxrwxrwx 1 ilibarra ilibarra 1.7G Aug 30 12:19 train_dataloader_obs8161_var50000.pkl*
ls -lhtr atac_train_obs8161*
-rwxrwxrwx 1 ilibarra ilibarra 209M Aug 30 12:10 atac_train_obs8161_var50000.h5ad*
ls -lhtr pancreas*obs8161_var50000*
-rwxrwxrwx 1 ilibarra ilibarra 22M Jul 9 01:22 pancreas_multiome_use_logdynamic_1_obs8161_var50000.pth*
-rwxrwxrwx 1 ilibarra ilibarra 19M Jul 9 01:22 pancreas_multiome_use_logdynamic_0_obs8161_var50000.pth*
