Dentate gyrus (scRNA-seq) | Training with an RNA-dynamics kNN-graph
The studied dataset for this tutorial is dentate gyrus (10X Genomics) [Hochgerner et al., 2018], and it is loaded directly from scvelo.datasets.
%load_ext autoreload
%autoreload 2
The autoreload extension is already loaded. To reload it, use:
%reload_ext autoreload
cd ~/workspace/theislab/mubind/docs/notebooks/single_cell
/home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell
!readlink -f .
/home/ilibarra/workspace/theislab/mubind/docs/notebooks/single_cell
import pandas as pd
import numpy as np
import os
import seaborn
import itertools
import glob
import pandas as pd
from pathlib import Path
import bindome as bd
bd.constants.ANNOTATIONS_DIRECTORY = 'annotations'
import mubind as mb
from tqdm.notebook import tqdm_notebook as tqdm
# these are motifs used during training (pre-weights)
# pwms = mb.datasets.cisbp_hs()
pwms = mb.datasets.archetypes()
# pwms = pwms[:20]
len(pwms)
# motifs loaded 2179
286
import random
# reduced_groups = [p.to_numpy() for p in random.sample(pwms, 20) if p.shape[-1] != 0]
# suppress numba deprecations warnings
from numba.core.errors import NumbaDeprecationWarning, NumbaPendingDeprecationWarning
import warnings
warnings.simplefilter('ignore', category=NumbaDeprecationWarning)
warnings.simplefilter('ignore', category=NumbaPendingDeprecationWarning)
import mubind as mb
import numpy as np
import pandas as pd
import torch
# mb.models.Mubind
import torch
import torch
import torch.optim as topti
import torch.utils.data as tdata
import matplotlib.pyplot as plt
import logomaker
import os
import scipy
import pickle
# Use a GPU if available, as it should be faster.
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
print("Using device: " + str(device))
Using device: cuda:0
# device = 'cpu'
import scanpy as sc
print('here...')
here...
ad_path = '../../../data/dentategyrus/dentategyrus.h5ad'
os.path.exists(ad_path)
True
print('here...')
here...
# pybiomart is requred
annot = sc.queries.biomart_annotations(
"mmusculus",
["ensembl_gene_id", "start_position", "end_position", "chromosome_name", "external_gene_name"],
).set_index("external_gene_name")
tss_path = os.path.join(bd.constants.ANNOTATIONS_DIRECTORY, 'mm10', 'genome', 'TSS.in')
tss = pd.read_csv(tss_path, sep='\t', header=None)
tss.columns = ['chrom', 'pos', 'strand', 'symbol']
tss = tss.set_index('symbol')
tss = tss[~tss.index.duplicated(keep='first')]
# annot = annot[~annot.index.duplicated(keep='first')]
# load the pancreas multiome dataset
rna = sc.read_h5ad(ad_path)
# rna, atac = mb.datasets.pancreas_multiome() # data_directory='../../../annotations/scatac')
rna.var[tss.columns] = tss
rna = rna[:,~pd.isnull(rna.var['pos'])].copy()
rna.shape
(2930, 13197)
rna.var['tss_start'] = rna.var['pos'].astype(int)
rna = rna[:,~pd.isnull(rna.var['tss_start'])]
bp = 250
tss_start = rna.var['tss_start'].astype(int)
rna.var['tss_start'] = np.where(rna.var['strand'] == '+', tss_start - bp, tss_start)
rna.var['tss_end'] = np.where(rna.var['strand'] == '+', tss_start, tss_start + bp)
rna.var['chromosome_name'] = rna.var['chrom']
rna.var['k'] = rna.var['chromosome_name'].astype(str) + ':' + rna.var['tss_start'].astype(str) + '-' + rna.var['tss_end'].astype(str)
rna.var
| gene_count_corr | velocity_gamma | velocity_qreg_ratio | velocity_r2 | velocity_genes | chrom | pos | strand | tss_start | tss_end | chromosome_name | k | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| index | ||||||||||||
| Lypla1 | 0.0100 | 0.000000 | 0.000000 | 0.000000 | False | chr1 | 4807893.0 | + | 4807643 | 4807893 | chr1 | chr1:4807643-4807893 |
| Tcea1 | -0.0791 | 0.278561 | 0.278561 | -0.116783 | False | chr1 | 4857694.0 | + | 4857444 | 4857694 | chr1 | chr1:4857444-4857694 |
| Atp6v1h | 0.0727 | 0.368721 | 0.368721 | -0.505921 | False | chr1 | 5083086.0 | + | 5082836 | 5083086 | chr1 | chr1:5082836-5083086 |
| Rb1cc1 | -0.0157 | 0.220445 | 0.220445 | -0.205280 | False | chr1 | 6214662.0 | + | 6214412 | 6214662 | chr1 | chr1:6214412-6214662 |
| St18 | -0.0037 | 0.052986 | 0.052986 | -0.042492 | False | chr1 | 6730051.0 | + | 6729801 | 6730051 | chr1 | chr1:6729801-6730051 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| Kdm5d | -0.0262 | 0.264588 | 0.308064 | 0.055893 | True | chrY | 897788.0 | + | 897538 | 897788 | chrY | chrY:897538-897788 |
| Eif2s3y | -0.0675 | 0.055193 | 0.055193 | -0.131292 | False | chrY | 1010612.0 | + | 1010362 | 1010612 | chrY | chrY:1010362-1010612 |
| Erdr1 | -0.0171 | 1.310422 | 1.310422 | -0.146096 | False | chrY | 90785442.0 | + | 90785192 | 90785442 | chrY | chrY:90785192-90785442 |
| Uty | 0.0078 | 1.348157 | 1.348157 | -0.046257 | False | chrY | 1245759.0 | - | 1245759 | 1246009 | chrY | chrY:1245759-1246009 |
| Ddx3y | -0.0634 | 0.018258 | 0.018258 | -0.226602 | False | chrY | 1286613.0 | - | 1286613 | 1286863 | chrY | chrY:1286613-1286863 |
13197 rows × 12 columns
ad = rna
ad.var_names
Index(['Lypla1', 'Tcea1', 'Atp6v1h', 'Rb1cc1', 'St18', 'Pcmtd1', 'Rrs1',
'Adhfe1', '3110035E14Rik', 'Sgk3',
...
'Tlr7', 'Prps2', 'Frmpd4', 'Msl3', 'Hccs', 'Kdm5d', 'Eif2s3y', 'Erdr1',
'Uty', 'Ddx3y'],
dtype='object', name='index', length=13197)
ad
AnnData object with n_obs × n_vars = 2930 × 13197
obs: 'clusters', 'age(days)', 'clusters_enlarged', 'n_counts', 'velocity_self_transition'
var: 'gene_count_corr', 'velocity_gamma', 'velocity_qreg_ratio', 'velocity_r2', 'velocity_genes', 'chrom', 'pos', 'strand', 'tss_start', 'tss_end', 'chromosome_name', 'k'
uns: 'clusters_colors', 'clusters_enlarged_colors', 'neighbors', 'pca', 'velocity_graph', 'velocity_graph_neg', 'velocity_params'
obsm: 'X_pca', 'X_umap', 'velocity_umap'
varm: 'PCs'
layers: 'Ms', 'Mu', 'ambiguous', 'spliced', 'unspliced', 'variance_velocity', 'velocity'
obsp: 'connectivities', 'distances'
# if rapids is available, use it
# import rapids_singlecell as rapids
# rapids.pp.neighbors(rna)
# if rapids is not avaible, default scanpy
sc.pp.neighbors(rna)
rna.obs
| clusters | age(days) | clusters_enlarged | n_counts | velocity_self_transition | |
|---|---|---|---|---|---|
| index | |||||
| AAACATACCCATGA | Granule immature | 35 | Granule-immature | 2460.500000 | 0.051353 |
| AAACATACCGTAGT | Radial Glia-like | 12 | Radial Glia-like | 2460.499756 | 0.220968 |
| AAACATACGAGAGC | Granule mature | 35 | Granule-mature | 2460.499756 | 0.069691 |
| AAACATACTGAGGG | Granule immature | 12 | Granule-immature | 2460.500000 | 0.080728 |
| AAACATTGGCATCA | Granule immature | 35 | Granule-immature | 2460.500000 | 0.119560 |
| ... | ... | ... | ... | ... | ... |
| TTTCTACTTCCCGT | Granule immature | 35 | Granule-immature | 2460.500000 | 0.034482 |
| TTTGACTGCCTGTC | Neuroblast | 12 | Neuroblast 2 | 2460.499756 | 0.131426 |
| TTTGACTGTCTGGA | Granule mature | 35 | Granule-mature | 2460.499756 | 0.100035 |
| TTTGCATGGGAGTG | Microglia | 35 | Microglia | 2460.500244 | 0.284692 |
| TTTGCATGTTCTTG | Granule immature | 35 | Granule-immature | 2460.499756 | 0.189407 |
2930 rows × 5 columns
from matplotlib import rcParams
rcParams['figure.figsize'] = 5, 5
# RNA

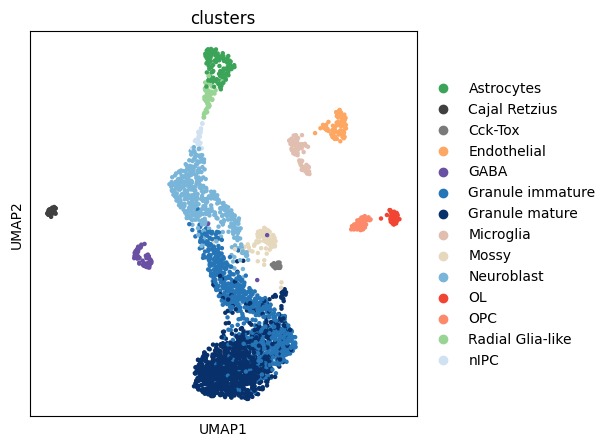

sc.pl.umap(rna, color='clusters')
#ATAC
# sc.pl.umap(atac, color='celltype')
rna
AnnData object with n_obs × n_vars = 2930 × 13197
obs: 'clusters', 'age(days)', 'clusters_enlarged', 'n_counts', 'velocity_self_transition'
var: 'gene_count_corr', 'velocity_gamma', 'velocity_qreg_ratio', 'velocity_r2', 'velocity_genes', 'chrom', 'pos', 'strand', 'tss_start', 'tss_end', 'chromosome_name', 'k'
uns: 'clusters_colors', 'clusters_enlarged_colors', 'neighbors', 'pca', 'velocity_graph', 'velocity_graph_neg', 'velocity_params'
obsm: 'X_pca', 'X_umap', 'velocity_umap'
varm: 'PCs'
layers: 'Ms', 'Mu', 'ambiguous', 'spliced', 'unspliced', 'variance_velocity', 'velocity'
obsp: 'connectivities', 'distances'
# scv.pl.velocity_embedding_stream(rna, color='celltype')
acc = (rna.X != 0).sum(axis=0) / rna.shape[0]
acc_score = abs(.5 - acc)
rna.var['acc_score'] = acc_score.A.T
rna.var['acc_score_rank'] = rna.var['acc_score'].rank(ascending=False)
plt.hist(rna.var['acc_score'], bins=35)
# var_sample = atac.var.sort_values('acc_score_rank').index[:n_sample_peaks]
(array([ 62., 63., 64., 50., 45., 61., 62., 49., 77.,
82., 85., 84., 73., 98., 94., 126., 124., 134.,
142., 126., 150., 184., 218., 219., 299., 330., 395.,
437., 482., 611., 719., 937., 1106., 1581., 3828.]),
array([0.00068259, 0.01494881, 0.02921502, 0.04348123, 0.05774744,
0.07201365, 0.08627986, 0.10054608, 0.11481229, 0.1290785 ,
0.14334471, 0.15761092, 0.17187713, 0.18614334, 0.20040956,
0.21467577, 0.22894198, 0.24320819, 0.2574744 , 0.27174061,
0.28600683, 0.30027304, 0.31453925, 0.32880546, 0.34307167,
0.35733788, 0.3716041 , 0.38587031, 0.40013652, 0.41440273,
0.42866894, 0.44293515, 0.45720137, 0.47146758, 0.48573379,
0.5 ]),
<BarContainer object of 35 artists>)
# n_sample_cells = 750
# n_sample_peaks = 1500
n_cell_types = len(set(rna.obs['clusters']))
n_cell_types
14
rna.shape
(2930, 13197)
rna.obs['clusters'].value_counts()
clusters
Granule mature 1070
Granule immature 785
Neuroblast 417
Astrocytes 120
Endothelial 87
Microglia 81
Mossy 75
GABA 61
OPC 53
Radial Glia-like 51
OL 50
Cajal Retzius 34
Cck-Tox 27
nIPC 19
Name: count, dtype: int64
rna.shape
(2930, 13197)
# int(n_sample_cells * 1.5)
n_select = 50000
n_sample_cells = n_select
n_sample_peaks = rna.shape[1]
# n_select = int(n_sample_cells / n_cell_types) # bug if > 20
obs_sample = rna.obs.groupby('clusters').sample(n_select, random_state=n_sample_cells, replace=True).index.drop_duplicates()
var_sample = pd.Series(rna.var_names).sample(n_sample_peaks, random_state=n_sample_peaks)
# var_sample = atac.var.sort_values('acc_score_rank').index[:n_sample_peaks]
ad = rna[rna.obs_names.isin(obs_sample),rna.var_names.isin(var_sample)].copy()
rna.shape, ad.shape
((2930, 13197), (2930, 13197))
n_sample_peaks
13197
ad.obs['clusters'].value_counts()
clusters
Granule mature 1070
Granule immature 785
Neuroblast 417
Astrocytes 120
Endothelial 87
Microglia 81
Mossy 75
GABA 61
OPC 53
Radial Glia-like 51
OL 50
Cajal Retzius 34
Cck-Tox 27
nIPC 19
Name: count, dtype: int64
# ad.uns['velocity_graph'] = rna_sample.uns['velocity_graph']
# # ad.layers['velocity'] = rna_sample.layers['velocity']
# ad.uns['velocity_graph'].shape
rna_sample = rna[ad.obs_names]
mask = rna.obs_names.isin(rna_sample.obs_names)
# local one step transposition to finalize processing
vgraph = rna.uns['velocity_graph']
vgraph = vgraph[mask == 1]
vgraph = vgraph.T
vgraph = vgraph[mask == 1]
vgraph = vgraph.T
vgraph.shape
(2930, 2930)
# pip install scvelo
# the scvelo package is a condition to explore the vector stream visualization. Not priority
import scvelo as scv
rna_sample.uns['velocity_graph'] = vgraph
try:
# atac

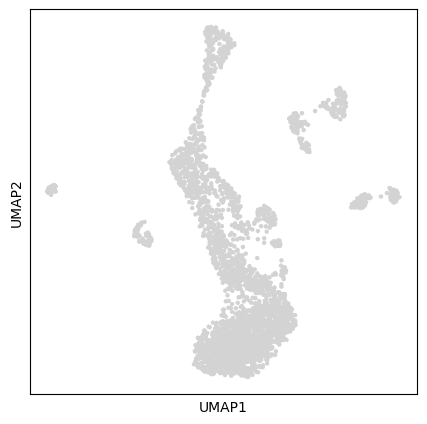

sc.pl.umap(ad)
# rna
# append the estimated velocities to the sample adata

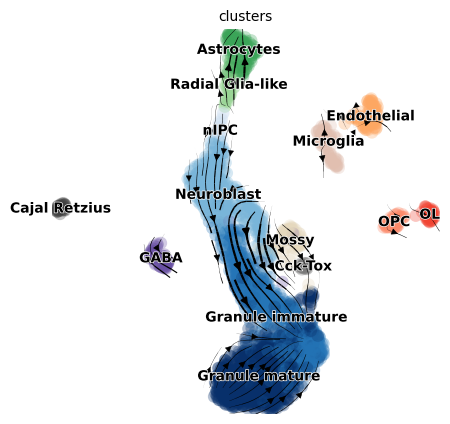

scv.pl.velocity_embedding_stream(rna_sample)
scv.pl.velocity_embedding_stream(rna_sample)
rna_sample.shape
except Exception:
print('sample too small to plot graph')
# ad.var['chr'] = 'chr' + ad.var_names.str.split('-').str[0]
# ad.var['start'] = ad.var_names.str.split('-').str[1].astype(int)
# ad.var['end'] = ad.var_names.str.split('-').str[2].astype(int)
# print('features by chromosome')
# extend = 50
# ad.var['chr'].value_counts()
# ad.var['summit'] = ((ad.var['end'] + ad.var['start']) / 2).astype(int)
# ad.var['summit.start'] = ad.var['summit'] - extend
# ad.var['summit.end'] = ad.var['summit'] + extend
# ad.var['k.summit'] = ad.var['chr'] + ':' + ad.var['summit.start'].astype(str) + '-' + ad.var['summit.end'].astype(str)
ad.var['chr'] = ad.var['chrom'].astype(str)
ad.var['summit.start'] = ad.var['tss_start'].astype(str)
ad.var['summit.end'] = ad.var['tss_end'].astype(str)
ad.var['k.summit'] = ad.var['chr'] + ':' + ad.var['summit.start'].astype(str) + '-' + ad.var['summit.end'].astype(str)
# remove chromosome duplicates
dups = (ad.var['k.summit'].value_counts() > 1)
dups = dups[dups].index
ad = ad[:,~ad.var['k.summit'].isin(dups)]
n_seqs = ad.shape[1] # None # 1000
seqs = mb.bindome.tl.get_sequences_from_bed(ad.var[['chr', 'summit.start', 'summit.end']].head(n_seqs), genome='mm10', uppercase=True,
gen_path='annotations/mm10/genome/mm10.fa',
bin='/home/ilibarra/miniconda3/envs/mubind/bin/bedtools')
# bin='/home/ilibarra/.conda/envs/mubind/bin/bedtools')
# gen_path='../../../annotations/hg38/genome/hg38.fa')
keys = set([s[0] for s in seqs])
ad = ad[:,ad.var['k.summit'].isin(keys)]
# seqs = [[s[0], s[1].upper()] for s in seqs[0]]
len(seqs)
/tmp/tmpkkt8i4gm
genome mm10 True
annotations/mm10/genome/mm10.fa
True annotations/mm10/genome/mm10.fa
running bedtools...
['/home/ilibarra/miniconda3/envs/mubind/bin/bedtools', 'getfasta', '-fi', 'annotations/mm10/genome/mm10.fa', '-bed', '/tmp/tmpkkt8i4gm', '-fo', '/tmp/tmpbvu7zyt4']
/home/ilibarra/miniconda3/envs/mubind/bin/bedtools getfasta -fi annotations/mm10/genome/mm10.fa -bed /tmp/tmpkkt8i4gm -fo /tmp/tmpbvu7zyt4
13187
# remove Ns
for s in seqs:
if 'N' in s:
assert False
# seqs = [[s[0], s[1].replace('N', '')] for s in seqs]
counts = ad.X.T
ad.shape, counts.shape
((2930, 13187), (13187, 2930))
next_data = pd.DataFrame(counts.A) # sparse.from_spmatrix(counts.A)
counts.shape, next_data.shape
((13187, 2930), (13187, 2930))
next_data['var'] = next_data.var(axis=1)
# next_data = next_data[range(100)].copy()
next_data.shape, ad.shape
((13187, 2931), (2930, 13187))
next_data.index = [s[1] for s in seqs]
next_data.index.name = 'seq'
next_data.shape
(13187, 2931)
next_data = next_data[~next_data.index.str.contains('N')]
next_data.shape
(13184, 2931)
# sum_index = next_data[next_data.columns[:-1]].var(axis=1).sort_values(ascending=False).index
n_cells = ad.shape[0] # next_data.shape[1]
top_var = next_data[['var']].sort_values('var', ascending=False).index[:n_cells]
next_data.shape
(13184, 2931)
n_cells
2930
ad.shape
(2930, 13187)
# next_data.index
ad.shape
(2930, 13187)
next_data = next_data[~next_data.index.duplicated(keep='first')]
# next_data = next_data.head(10000)
next_data_sel = next_data.reindex(top_var) # .reset_index(drop=True)
next_data_sel.shape
(2930, 2931)
next_data_sel
| 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ... | 2921 | 2922 | 2923 | 2924 | 2925 | 2926 | 2927 | 2928 | 2929 | var | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| seq | |||||||||||||||||||||
| ACGCAGAGCCCGGAGCGCCGGTATTTATTGCAAAGGGACACGTCACTCCACCGGAACCTAGTAACCCTCCACCACCTTGGTGAAGGAAGAAAAATAGTTCCTCAGAGAGTTAAAAATAGATCCTGACTTCCAAGTTTCTAGATTTTTCTTGACGTCGTGTGGGCCTCTTGGACCTTGCTAATACAGAGAAATGTTTAGCTTGTACCAGCTAAATAGGTACAAATAGGTTTAAAATTTCTGGTCACAAGGA | 192.896332 | 146.569702 | 176.720993 | 74.879700 | 212.214920 | 34.730770 | 103.064430 | 63.729908 | 27.008781 | 207.418335 | ... | 330.720581 | 143.385773 | 152.479034 | 17.642859 | 101.004532 | 94.754105 | 160.864792 | 93.063194 | 78.259262 | 6649.693359 |
| GCGGCCACCCTCCCTTTTCCGTCTGCCCCCTAGCGGGCCCCGCCTCCTCTTCCGAACGGCCCCGCCCTCCCTCTGCTTCAGTCAGCTGCTAGTCTGTTCTTGCCTTGTAGGTCAGATACCTCTTAAAGAGCTGCCAGATTCCCATTCCCTGCTGAGCCTCCCCTCCCCCATCCCTGCCCCGCCTCTCCCTTCCTTCTTCACTCTTAGCTTTCTGTTCTTACCAGTTCCTCTTCTGTGCCCTTTTCCACAG | 0.857317 | 43.659061 | 0.000000 | 0.584998 | 0.000000 | 0.538462 | 0.000000 | 0.657009 | 44.564491 | 0.000000 | ... | 1.531114 | 0.000000 | 0.947075 | 4.071429 | 1.485361 | 1.553346 | 0.000000 | 295.078430 | 0.000000 | 1339.492188 |
| ATCATCCTCATCGGTACCCTCTGTGCCCATCTGGGACCCAGATGCCTCTGCAGTACGGCTAGATCCAACTACGCCCGCCCCGGGCCACAGAAACAGCGCGCTTGTTGCCAGGCACCGCTCTTGCAGAAGCTCAGAGCCCCTTGCGTCGCCTCACACTCACACAGGCTCCTCCCCGCCCGCGCCCTGCGGGTTTGGGCAACACGCCCACAGGAAGAGGCGGGGCGGCGCGGCCCGCTGCGCTGATTGGCCA | 32.578049 | 8.316011 | 36.250458 | 31.589874 | 32.386211 | 15.615385 | 43.052227 | 29.565422 | 13.504391 | 50.558216 | ... | 26.028936 | 54.486595 | 33.147614 | 8.142858 | 35.648659 | 20.193497 | 34.122833 | 4.539668 | 51.694191 | 370.427185 |
| ACCCCTCCATTTAATTTACACCCCTAATTCACACTTCCTGATTTATTTAAAGCAAAATGAAATTCTAGAGAAGCTTTAGGGGGGAAAAGAGAGAGAAAGAAAAAAAACAATTGGGAGTGAAAAGGCATAAAGAGAAGATGGAGCCCTTAAAGAAGGGAGTATCCCAAAGGAGGTGGGGACAAGGGGAGGAGAAGGGGAGGAGGAGAGGAGGAGGGAAACGAGCCTGTCTCTTTAAGGGGGTTGGCTGTCA | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | ... | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 360.813110 |
| AGAGGGCACTGTGGAGACCCCCTATTTATGAGTCAGGCTTGGCCTCCACCCAAAGCCCAAGGACTGCCCACTGAAGGCTCGTGATGTTGGTGTGAGGGAGGGTGGCTGTCCCAGCTGCAGCCTCATCTGCTAATTATGTAAGAGGTTCCAGCTGAGCCCCACACCTCCTAGAAGAAGAAACCTCTGCCTGCCCCCATCCCCAGCTCCAGAGGCAGAACTGGCTCAGACCTTGCCCACTCCTGCCGGCAAA | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | ... | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 217.319138 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| TCCCGGGCCCGCGCCGCGCGCCCCCGCCTGCGCCGCCGCGCCCGCGCCACGCCGCGCGCCCCCGCGCCAGCTCTCTCTCGCGCTCTCTCTCTCCAGCTCGCTCTGTCTCTCTGTCTCTCTCCCCTTTCTTTCTCTGTCTCTCTCCTCTCTCTGTCTGTCTCTCTCTCTCTGTGTCTCTCCCCCCTCTCTTTCTCTGTCTCTCTCTCTCCTCTCTCTGTGTCTCTCTGTCTGTCTGTCTCTCTCTCTGTGT | 0.857317 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 1.304613 | 0.000000 | 0.000000 | 0.000000 | ... | 0.000000 | 7.169289 | 0.000000 | 0.000000 | 0.742680 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.214795 |
| TCCAGGGCTTTGACTTGCCGCACTCGGTGACCGGCCTGCAGTCCTCGGCGGAGCCGCGCGGGGGCGCTGCGGGGAGGCCTCGGCTTTCCTGCCGTGGCGGGGCACGGCCAGGCGGGGGCGCTGCGGGCGGCGGGCGAGGGCTAGGCCGGCCTCTCCTGCGGGGCCGGCTGGGGCGGGGCGCGGCGCCGCACCGCGCTTCCGCAAGTGTGGAGCTGCGGGATGGCTACGCTGCTACTGCAGCTGCTGGGGC | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.852269 | 0.000000 | 0.000000 | 0.000000 | 1.350439 | 0.000000 | ... | 0.000000 | 0.000000 | 0.000000 | 2.714286 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.214610 |
| TCCCGCTCTAAAAGCGCAAGCCCACGTGGGGGCGGGGCGGCTCACCCGGAAGCGGCTCCCGTACCGCCCGCCCCTCCGGGAATGCAGCTTACGCTCCCTTCGGGGCAGTCTCCGGATCACTGGTCAGCTCGCGCGGCCAGATCCACGCTGAGCGGGGCTGGAATCTTGGCCAATCCAGAGTTGCCCGAGAGCCCGCCCGTCTCCCCGCCCCCCAGCTCGGGTCTCACTTGAGGTGGGAAGGCCCGAGGGG | 0.857317 | 0.000000 | 1.510436 | 0.584998 | 0.000000 | 0.269231 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | ... | 0.000000 | 1.433858 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.214427 |
| GGAGAGGCCCTCTGCGCCCTAGCGCGAAGGCCGCGCGCCTGGCTCGCACCCAGGACGTCCACGCTCCCTAGGGATCGGCCCGCGGCAGCGACCTGAGGAGCAGCGCAGGGCAGTGACGTCACCGCCGCCCCTCCCCCGCCCAAGCCGCAGTTCCGGCCCTCCCACATCCGGGTCTCTCCAGCCCATGGGCCGCGCCGCAGCTGCAGGGCCGGGGGTGGGGGAAACGGCGGCGCGGGGCGGGGCGGGGCCG | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | ... | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.214397 |
| CAATGGGTGACGTCGCGCGGCTCCTACCACCGCGCGCGACCGTGGGGGGAGACGTTCGCTAGAAGACTTAGGGGCGCGGGACGGCGCAAACCGTGCGAGACCACTGCCCACACTGTCTGCCCAGAGATAGTTTATATGGTTGCGAGCGATTCCGGGGACGGGGCACCGACTTCGCCGAGCCCAGGTCCTAGGACCTCTCGGTCCTAGGAGGCACCCTCGGCGACTGCCAATTGGCTGCTCCCACTCGCGG | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.538462 | 0.000000 | 0.657009 | 0.000000 | 0.000000 | ... | 0.000000 | 1.433858 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.214236 |
2930 rows × 2931 columns
ad.shape
(2930, 13187)
len(top_var), next_data.shape
(2930, (13183, 2931))
ad.shape
(2930, 13187)
del next_data_sel['var']
# next_data_sel.index = next_data_sel['seq']
# del next_data_sel['seq']
next_data_sel.shape
(2930, 2930)
df = next_data_sel.copy() # sample
# df = df[df.columns[:5000]] # .head(100) # sample
# shorten sequences/remove duplicates
# df.index = df.index.astype(str).str[35:-35]
# df = df[~df.index.duplicated(keep='first')]
zero_counts = df.sum(axis=1) == 0
df = df[~zero_counts] # remove zeroes
df.shape
(2930, 2930)
ad.shape, df.shape
((2930, 13187), (2930, 2930))
zero_counts.shape
(2930,)
zero_counts.shape, ad.shape
((2930,), (2930, 13187))
ad.shape, zero_counts.shape
((2930, 13187), (2930,))
ad = ad[~zero_counts,:].copy()
ad.shape
(2930, 13187)
df2 = df.reset_index().melt('seq').set_index('seq')
# add a baseline count
df2[0] = 1.0
cols = ['batch', 1, 0]
df2.columns = cols
df2 = df2[[0, 1, 'batch']] # cols[::-1]]
df2['batch'] = df2['batch'].astype(int)
print(df2.shape)
print(len(set(df2['batch'])))
n_cells = 200
df2 = df2[df2['batch'].isin(range(0, n_cells))]
print(df2['batch'].value_counts())
df2.head()
(8584900, 3)
2930
batch
0 2930
137 2930
127 2930
128 2930
129 2930
...
69 2930
70 2930
71 2930
72 2930
199 2930
Name: count, Length: 200, dtype: int64
| 0 | 1 | batch | |
|---|---|---|---|
| seq | |||
| ACGCAGAGCCCGGAGCGCCGGTATTTATTGCAAAGGGACACGTCACTCCACCGGAACCTAGTAACCCTCCACCACCTTGGTGAAGGAAGAAAAATAGTTCCTCAGAGAGTTAAAAATAGATCCTGACTTCCAAGTTTCTAGATTTTTCTTGACGTCGTGTGGGCCTCTTGGACCTTGCTAATACAGAGAAATGTTTAGCTTGTACCAGCTAAATAGGTACAAATAGGTTTAAAATTTCTGGTCACAAGGA | 1.0 | 192.896332 | 0 |
| GCGGCCACCCTCCCTTTTCCGTCTGCCCCCTAGCGGGCCCCGCCTCCTCTTCCGAACGGCCCCGCCCTCCCTCTGCTTCAGTCAGCTGCTAGTCTGTTCTTGCCTTGTAGGTCAGATACCTCTTAAAGAGCTGCCAGATTCCCATTCCCTGCTGAGCCTCCCCTCCCCCATCCCTGCCCCGCCTCTCCCTTCCTTCTTCACTCTTAGCTTTCTGTTCTTACCAGTTCCTCTTCTGTGCCCTTTTCCACAG | 1.0 | 0.857317 | 0 |
| ATCATCCTCATCGGTACCCTCTGTGCCCATCTGGGACCCAGATGCCTCTGCAGTACGGCTAGATCCAACTACGCCCGCCCCGGGCCACAGAAACAGCGCGCTTGTTGCCAGGCACCGCTCTTGCAGAAGCTCAGAGCCCCTTGCGTCGCCTCACACTCACACAGGCTCCTCCCCGCCCGCGCCCTGCGGGTTTGGGCAACACGCCCACAGGAAGAGGCGGGGCGGCGCGGCCCGCTGCGCTGATTGGCCA | 1.0 | 32.578049 | 0 |
| ACCCCTCCATTTAATTTACACCCCTAATTCACACTTCCTGATTTATTTAAAGCAAAATGAAATTCTAGAGAAGCTTTAGGGGGGAAAAGAGAGAGAAAGAAAAAAAACAATTGGGAGTGAAAAGGCATAAAGAGAAGATGGAGCCCTTAAAGAAGGGAGTATCCCAAAGGAGGTGGGGACAAGGGGAGGAGAAGGGGAGGAGGAGAGGAGGAGGGAAACGAGCCTGTCTCTTTAAGGGGGTTGGCTGTCA | 1.0 | 0.000000 | 0 |
| AGAGGGCACTGTGGAGACCCCCTATTTATGAGTCAGGCTTGGCCTCCACCCAAAGCCCAAGGACTGCCCACTGAAGGCTCGTGATGTTGGTGTGAGGGAGGGTGGCTGTCCCAGCTGCAGCCTCATCTGCTAATTATGTAAGAGGTTCCAGCTGAGCCCCACACCTCCTAGAAGAAGAAACCTCTGCCTGCCCCCATCCCCAGCTCCAGAGGCAGAACTGGCTCAGACCTTGCCCACTCCTGCCGGCAAA | 1.0 | 0.000000 | 0 |
Simple motif enrichment
use_kmers = False
if use_kmers:
kmers_by_module = {}
pwm_by_module = {}
glossary_kmers_dir = '../../../../../zaugglab/apobec2_data_analysis/src/analyses_2023_new_sample/Glossary Modules'
for f in os.listdir(glossary_kmers_dir):
if not f.endswith('.xlsx'):
continue
name = f.replace('Glossary_module_', '').replace('.xlsx', '')
kmers = pd.read_excel(os.path.join(glossary_kmers_dir, f), sheet_name='8mers')
kmers_by_module[name] = kmers[kmers.columns[0]]
pwm = pd.read_excel(os.path.join(glossary_kmers_dir, f), sheet_name='PWM', index_col=0)
pwm_by_module[name] = pwm
Generate pos and neg
# import ushuffle
# fg = df.index
# bg = []
# for i, s in enumerate(fg):
# # print(i, s)
# bg.append(ushuffle.shuffle(str.encode(s), 2))
# for a, b in zip(fg, bg):
# # print(len(a[1]), len(b))
# assert len(a) == len(b)
frac_acc = (df > 0).sum(axis=0) / df.shape[1]
reduced_groups = pwms
df
| 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ... | 2920 | 2921 | 2922 | 2923 | 2924 | 2925 | 2926 | 2927 | 2928 | 2929 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| seq | |||||||||||||||||||||
| ACGCAGAGCCCGGAGCGCCGGTATTTATTGCAAAGGGACACGTCACTCCACCGGAACCTAGTAACCCTCCACCACCTTGGTGAAGGAAGAAAAATAGTTCCTCAGAGAGTTAAAAATAGATCCTGACTTCCAAGTTTCTAGATTTTTCTTGACGTCGTGTGGGCCTCTTGGACCTTGCTAATACAGAGAAATGTTTAGCTTGTACCAGCTAAATAGGTACAAATAGGTTTAAAATTTCTGGTCACAAGGA | 192.896332 | 146.569702 | 176.720993 | 74.879700 | 212.214920 | 34.730770 | 103.064430 | 63.729908 | 27.008781 | 207.418335 | ... | 37.665909 | 330.720581 | 143.385773 | 152.479034 | 17.642859 | 101.004532 | 94.754105 | 160.864792 | 93.063194 | 78.259262 |
| GCGGCCACCCTCCCTTTTCCGTCTGCCCCCTAGCGGGCCCCGCCTCCTCTTCCGAACGGCCCCGCCCTCCCTCTGCTTCAGTCAGCTGCTAGTCTGTTCTTGCCTTGTAGGTCAGATACCTCTTAAAGAGCTGCCAGATTCCCATTCCCTGCTGAGCCTCCCCTCCCCCATCCCTGCCCCGCCTCTCCCTTCCTTCTTCACTCTTAGCTTTCTGTTCTTACCAGTTCCTCTTCTGTGCCCTTTTCCACAG | 0.857317 | 43.659061 | 0.000000 | 0.584998 | 0.000000 | 0.538462 | 0.000000 | 0.657009 | 44.564491 | 0.000000 | ... | 0.000000 | 1.531114 | 0.000000 | 0.947075 | 4.071429 | 1.485361 | 1.553346 | 0.000000 | 295.078430 | 0.000000 |
| ATCATCCTCATCGGTACCCTCTGTGCCCATCTGGGACCCAGATGCCTCTGCAGTACGGCTAGATCCAACTACGCCCGCCCCGGGCCACAGAAACAGCGCGCTTGTTGCCAGGCACCGCTCTTGCAGAAGCTCAGAGCCCCTTGCGTCGCCTCACACTCACACAGGCTCCTCCCCGCCCGCGCCCTGCGGGTTTGGGCAACACGCCCACAGGAAGAGGCGGGGCGGCGCGGCCCGCTGCGCTGATTGGCCA | 32.578049 | 8.316011 | 36.250458 | 31.589874 | 32.386211 | 15.615385 | 43.052227 | 29.565422 | 13.504391 | 50.558216 | ... | 11.197972 | 26.028936 | 54.486595 | 33.147614 | 8.142858 | 35.648659 | 20.193497 | 34.122833 | 4.539668 | 51.694191 |
| ACCCCTCCATTTAATTTACACCCCTAATTCACACTTCCTGATTTATTTAAAGCAAAATGAAATTCTAGAGAAGCTTTAGGGGGGAAAAGAGAGAGAAAGAAAAAAAACAATTGGGAGTGAAAAGGCATAAAGAGAAGATGGAGCCCTTAAAGAAGGGAGTATCCCAAAGGAGGTGGGGACAAGGGGAGGAGAAGGGGAGGAGGAGAGGAGGAGGGAAACGAGCCTGTCTCTTTAAGGGGGTTGGCTGTCA | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | ... | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 |
| AGAGGGCACTGTGGAGACCCCCTATTTATGAGTCAGGCTTGGCCTCCACCCAAAGCCCAAGGACTGCCCACTGAAGGCTCGTGATGTTGGTGTGAGGGAGGGTGGCTGTCCCAGCTGCAGCCTCATCTGCTAATTATGTAAGAGGTTCCAGCTGAGCCCCACACCTCCTAGAAGAAGAAACCTCTGCCTGCCCCCATCCCCAGCTCCAGAGGCAGAACTGGCTCAGACCTTGCCCACTCCTGCCGGCAAA | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | ... | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| TCCCGGGCCCGCGCCGCGCGCCCCCGCCTGCGCCGCCGCGCCCGCGCCACGCCGCGCGCCCCCGCGCCAGCTCTCTCTCGCGCTCTCTCTCTCCAGCTCGCTCTGTCTCTCTGTCTCTCTCCCCTTTCTTTCTCTGTCTCTCTCCTCTCTCTGTCTGTCTCTCTCTCTCTGTGTCTCTCCCCCCTCTCTTTCTCTGTCTCTCTCTCTCCTCTCTCTGTGTCTCTCTGTCTGTCTGTCTCTCTCTCTGTGT | 0.857317 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 1.304613 | 0.000000 | 0.000000 | 0.000000 | ... | 0.000000 | 0.000000 | 7.169289 | 0.000000 | 0.000000 | 0.742680 | 0.000000 | 0.000000 | 0.000000 | 0.000000 |
| TCCAGGGCTTTGACTTGCCGCACTCGGTGACCGGCCTGCAGTCCTCGGCGGAGCCGCGCGGGGGCGCTGCGGGGAGGCCTCGGCTTTCCTGCCGTGGCGGGGCACGGCCAGGCGGGGGCGCTGCGGGCGGCGGGCGAGGGCTAGGCCGGCCTCTCCTGCGGGGCCGGCTGGGGCGGGGCGCGGCGCCGCACCGCGCTTCCGCAAGTGTGGAGCTGCGGGATGGCTACGCTGCTACTGCAGCTGCTGGGGC | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.852269 | 0.000000 | 0.000000 | 0.000000 | 1.350439 | 0.000000 | ... | 0.508999 | 0.000000 | 0.000000 | 0.000000 | 2.714286 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 |
| TCCCGCTCTAAAAGCGCAAGCCCACGTGGGGGCGGGGCGGCTCACCCGGAAGCGGCTCCCGTACCGCCCGCCCCTCCGGGAATGCAGCTTACGCTCCCTTCGGGGCAGTCTCCGGATCACTGGTCAGCTCGCGCGGCCAGATCCACGCTGAGCGGGGCTGGAATCTTGGCCAATCCAGAGTTGCCCGAGAGCCCGCCCGTCTCCCCGCCCCCCAGCTCGGGTCTCACTTGAGGTGGGAAGGCCCGAGGGG | 0.857317 | 0.000000 | 1.510436 | 0.584998 | 0.000000 | 0.269231 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | ... | 0.000000 | 0.000000 | 1.433858 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 |
| GGAGAGGCCCTCTGCGCCCTAGCGCGAAGGCCGCGCGCCTGGCTCGCACCCAGGACGTCCACGCTCCCTAGGGATCGGCCCGCGGCAGCGACCTGAGGAGCAGCGCAGGGCAGTGACGTCACCGCCGCCCCTCCCCCGCCCAAGCCGCAGTTCCGGCCCTCCCACATCCGGGTCTCTCCAGCCCATGGGCCGCGCCGCAGCTGCAGGGCCGGGGGTGGGGGAAACGGCGGCGCGGGGCGGGGCGGGGCCG | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | ... | 0.508999 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 |
| CAATGGGTGACGTCGCGCGGCTCCTACCACCGCGCGCGACCGTGGGGGGAGACGTTCGCTAGAAGACTTAGGGGCGCGGGACGGCGCAAACCGTGCGAGACCACTGCCCACACTGTCTGCCCAGAGATAGTTTATATGGTTGCGAGCGATTCCGGGGACGGGGCACCGACTTCGCCGAGCCCAGGTCCTAGGACCTCTCGGTCCTAGGAGGCACCCTCGGCGACTGCCAATTGGCTGCTCCCACTCGCGG | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.538462 | 0.000000 | 0.657009 | 0.000000 | 0.000000 | ... | 0.000000 | 0.000000 | 1.433858 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 | 0.000000 |
2930 rows × 2930 columns
dataset = mb.datasets.SelexDataset(df, n_rounds=df.shape[1], enr_series=False)
n_batch = len(set(dataset.batch))
n_kernels = len(pwms)
train = tdata.DataLoader(dataset=dataset, batch_size=128, shuffle=True)
# df_neg = df.copy()
# df_neg.index = bg
# df_neg.index = df_neg.index.astype(str)
# dataset_neg = mb.datasets.SelexDataset(df_neg, n_rounds=df_neg.shape[1], enr_series=False)
# train_neg = tdata.DataLoader(dataset=dataset_neg, batch_size=512, shuffle=True)
The parameter log_dynamic defines whether a kNN-graph will be used
len(pwms)
286
# for unit tests
# torch.save(train, '../../../tests/_data/pancreas_multiome.pth')
# ad.write('../../../tests/_data/pancreas_multiome.h5ad', compression='lzf')
rna_sample.shape, ad.shape
((2930, 13197), (2930, 13187))
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
print(device)
cuda:0
criterion = mb.tl.PoissonLoss()
w = [r.shape[1] for r in pwms]
optimize_log_dynamic = True
model = mb.models.Mubind.make_model(train, n_kernels, criterion, kernels=[0, 2,] + w, # [0, 2] + w,
# use_dinuc=True, dinuc_mode='full',
optimize_sym_weight=False,
optimize_exp_barrier=True,
optimize_prob_act=True,
# use_conv1d=True,
optimize_log_dynamic=optimize_log_dynamic,
use_dinuc=False,
device=device,
p_dropout=0.8,
prepare_knn=optimize_log_dynamic,
velocity_graph=vgraph,
knn_free_weights=False,
adata=None if not optimize_log_dynamic else ad,
dinuc_mode=None)
print('no err')
(2930, 2930)
setting up log dynamic
no err
model.graph_module.conn_sparse.shape
torch.Size([2930, 2930])
train.dataset.rounds.shape
(2930, 2930)
for i, batch in enumerate(train):
# print(i, 'batches out of', n_batches)
# Get a batch and potentially send it to GPU memory.
mononuc = batch["mononuc"] # .to(self.device)
print(mononuc.shape)
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([128, 4, 250])
torch.Size([114, 4, 250])
model.device
device(type='cuda', index=0)
import torch.optim as topti
import warnings
model_by_logdynamic = {}
n_epochs_intercept = 10
n_epochs_kernel = 20
log_each=75
n_unfreeze_kernels=70
for optimize_log_dynamic in [True, False]:
warnings.filterwarnings("ignore")
criterion = mb.tl.PoissonLoss()
w = [r.shape[1] for r in pwms]
model = mb.models.Mubind.make_model(train, n_kernels, criterion, kernels=[0, 2,] + w, # [0, 2] + w,
# use_dinuc=True, dinuc_mode='full',
optimize_sym_weight=False,
optimize_exp_barrier=True,
optimize_prob_act=True,
optimize_log_dynamic=optimize_log_dynamic,
use_dinuc=False,
device=device,
p_dropout=0.8,
prepare_knn=optimize_log_dynamic,
knn_free_weights=False,
adata=None if not optimize_log_dynamic else ad,
dinuc_mode=None) # .cuda()
# initialize the reduce kernels
for i, mono_best in enumerate(pwms):
mono_best = mono_best.to_numpy()
if mono_best.shape[-1] == 0:
continue
# print(mono_best.shape, model.binding_modes.conv_mono[i + 1].weight.shape)
# print(model.binding_modes.conv_mono[i + 1].weight.device)
new_w = mono_best.reshape([1, 1] + list(mono_best.shape))
# print(i, i + 1)
model.binding_modes.conv_mono[i + 2].weight = torch.nn.Parameter(torch.tensor(new_w, dtype=torch.float).squeeze(1))
# print(model.binding_modes.conv_mono[i + 1].weight.device)
# move the model a final time to the GPU
model = model.to(device)
mb.pl.set_rcParams({'figure.figsize': [15, 3], 'figure.dpi': 90})
mb.pl.logo(model,
title=False,
xticks=False,
rowspan_dinuc=0,
rowspan_mono=1,
n_rows=5,
n_cols=12,
stop_at=10 ) # n_cols=len(reduced_groups))
mb.pl.set_rcParams({'figure.figsize': [20, 5], 'figure.dpi': 100})
# mb.pl.conv(model, n_cols=2)
import torch.nn as tnn
model, best_loss = model.optimize_iterative(train, n_epochs=[n_epochs_intercept] + [n_epochs_kernel] * (n_kernels + 1),
show_logo=False, use_mono=True, use_dinuc=False, dinuc_mode='local',
opt_kernel_shift=[0, 0] + [0] * (n_kernels),
opt_kernel_length=[0, 0] + [0] * (n_kernels),
opt_one_step=True,
shift_max=1, shift_step=1,
n_unfreeze_kernels=n_unfreeze_kernels,
# optimiser=topti.SGD,
optimiser=topti.Adam,
# skip_kernels=list(range(1, 2)) + list(range(5, 500)),
n_batches=1, n_rounds=2, num_epochs_shift_factor=1, # log_etas=log_etas, # log_etas=log_etas,
kernels = [0] + [2] + [20] * (n_kernels), r2_per_epoch=True,
exp_max=8,
early_stopping=250, log_each=log_each, w=20, max_w=20) # target_dim=train.dataset.signal.shape[1])
model_by_logdynamic[optimize_log_dynamic] = model
setting up log dynamic
break
verbose=2
current kernel 0
### next filter to optimize 0 (intercept)
FREEZING KERNELS
optimizing feature type mono
next kernels 0-69, n=70
filters mask None
optimizer: Adam , criterion: PoissonLoss
epochs: 10
early_stopping: 250
lr= 0.01, weight_decay= 0, dir weight= 0
20%|████████████████████████████▊ | 2/10 [00:26<01:47, 13.42s/it]
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10/10 [02:12<00:00, 13.27s/it]
Current time: 2024-08-05 17:52:45.089841
Loss: 400.529 , R2: 0.629
Training time (model/function): (132.806s / 132.806s)
per epoch (model/function): (14.756s/ 14.756s)
per 1k samples: 5.036s
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.864804495254649, pvalue=0.0))
optimization of dinuc is not valid for the intercept (filter=0). Skip...
current kernel 70
### next filter to optimize 70
FREEZING KERNELS
optimizing feature type mono
next kernels 70-139, n=70
filters mask None
optimizer: Adam , criterion: PoissonLoss
epochs: 20
early_stopping: 250
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [04:25<00:00, 13.26s/it]
Current time: 2024-08-05 17:57:15.061806
Loss: 375.221 , R2: 0.629
Training time (model/function): (398.092s / 265.286s)
per epoch (model/function): (20.952s/ 13.962s)
per 1k samples: 4.765s
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.864804495254649, pvalue=0.0))
final refinement step (after shift)...unfreezing all layers
optimizer: Adam , criterion: PoissonLoss
epochs: 20
early_stopping: 250
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [04:26<00:00, 13.32s/it]
Current time: 2024-08-05 18:01:45.782366
Loss: 144.967 , R2: 0.629
Training time (model/function): (664.565s / 266.473s)
per epoch (model/function): (34.977s/ 14.025s)
per 1k samples: 4.787s
best loss 144.967
last five r2 values, by sequential filter optimization: ['0.629']
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.864804495254649, pvalue=0.0))
optimizing feature type dinuc
the optimization of dinucleotide features is skipped...
current kernel 140
### next filter to optimize 140
FREEZING KERNELS
optimizing feature type mono
next kernels 140-209, n=70
filters mask None
optimizer: Adam , criterion: PoissonLoss
epochs: 20
early_stopping: 250
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [04:23<00:00, 13.19s/it]
Current time: 2024-08-05 18:06:18.149240
Loss: 372.741 , R2: 0.629
Training time (model/function): (928.487s / 263.922s)
per epoch (model/function): (48.868s/ 13.891s)
per 1k samples: 4.741s
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.864804495254649, pvalue=0.0))
final refinement step (after shift)...unfreezing all layers
optimizer: Adam , criterion: PoissonLoss
epochs: 20
early_stopping: 250
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [04:25<00:00, 13.25s/it]
Current time: 2024-08-05 18:10:47.029990
Loss: 144.737 , R2: 0.629
Training time (model/function): (1193.683s / 265.197s)
per epoch (model/function): (62.825s/ 13.958s)
per 1k samples: 4.764s
best loss 144.718
last five r2 values, by sequential filter optimization: ['0.629', '0.629']
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.864804495254649, pvalue=0.0))
optimizing feature type dinuc
the optimization of dinucleotide features is skipped...
current kernel 210
### next filter to optimize 210
FREEZING KERNELS
optimizing feature type mono
next kernels 210-279, n=70
filters mask None
optimizer: Adam , criterion: PoissonLoss
epochs: 20
early_stopping: 250
lr= 0.01, weight_decay= 0, dir weight= 0
100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [04:23<00:00, 13.15s/it]
Current time: 2024-08-05 18:15:18.695149
Loss: 372.720 , R2: 0.629
Training time (model/function): (1456.759s / 263.075s)
per epoch (model/function): (76.672s/ 13.846s)
per 1k samples: 4.726s
('etas corr with lib_sizes (before refinement)', SignificanceResult(statistic=0.864804495254649, pvalue=0.0))
final refinement step (after shift)...unfreezing all layers
optimizer: Adam , criterion: PoissonLoss
epochs: 20
early_stopping: 250
lr= 0.01, weight_decay= 0, dir weight= 0
40%|█████████████████████████████████████████████████████████▌ | 8/20 [01:46<02:39, 13.29s/it]
model_by_logdynamic
{True: Mubind(
(padding): ConstantPad2d(padding=(23, 23, 0, 0), value=0.25)
(binding_modes): BindingLayer(
(conv_mono): ModuleList(
(0): None
(1): Conv1d(4, 1, kernel_size=(2,), stride=(1,), bias=False)
(2): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(3): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(4): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(5): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(6): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(7): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(8-9): 2 x Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(10): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(11): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(12): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(13): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(14): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(15): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(16-17): 2 x Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(18): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(19): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(20): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(21): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(22): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(23): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(24): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(25): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(26): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(27-28): 2 x Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(29): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(30): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(31-32): 2 x Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(33): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(34): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(35): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(36): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(37): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(38): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(39): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(40): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(41): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(42): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(43): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(44): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(45): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(46): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(47): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(48): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(49-50): 2 x Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(51): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(52): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(53): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(54-55): 2 x Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(56): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(57): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(58): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(59): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(60): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(61-62): 2 x Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(63): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(64): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(65): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(66): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(67): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(68): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(69-70): 2 x Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(71): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(72): Conv1d(4, 1, kernel_size=(6,), stride=(1,), bias=False)
(73): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(74): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(75): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(76): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(77): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(78): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(79): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(80): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(81): Conv1d(4, 1, kernel_size=(21,), stride=(1,), bias=False)
(82): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(83): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(84): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(85): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(86): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(87): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(88): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(89-90): 2 x Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(91): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(92): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(93): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(94): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(95): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(96): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(97): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(98): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(99): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(100): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(101): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(102): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(103): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(104): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(105): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(106): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(107): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(108): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(109): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(110-111): 2 x Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(112): Conv1d(4, 1, kernel_size=(7,), stride=(1,), bias=False)
(113): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(114): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(115): Conv1d(4, 1, kernel_size=(7,), stride=(1,), bias=False)
(116): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(117): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(118): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(119): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(120): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(121): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(122): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(123-124): 2 x Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(125): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(126): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(127): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(128): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(129): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(130): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(131): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(132): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(133): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(134): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(135): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(136): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(137): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(138): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(139): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(140): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(141): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(142): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(143-144): 2 x Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(145): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(146): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(147): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(148): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(149): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(150): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(151): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(152): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(153): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(154): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(155): Conv1d(4, 1, kernel_size=(7,), stride=(1,), bias=False)
(156-157): 2 x Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(158): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(159): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(160): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(161): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(162): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(163): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(164): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(165): Conv1d(4, 1, kernel_size=(21,), stride=(1,), bias=False)
(166): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(167): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(168): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(169): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(170): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(171): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(172): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(173): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(174): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(175): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(176): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(177): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(178): Conv1d(4, 1, kernel_size=(6,), stride=(1,), bias=False)
(179-180): 2 x Conv1d(4, 1, kernel_size=(22,), stride=(1,), bias=False)
(181): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(182): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(183): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(184): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(185): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(186): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(187): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(188): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(189): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(190): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(191): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(192): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(193): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(194): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(195): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(196-198): 3 x Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(199-200): 2 x Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(201): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(202): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(203): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(204): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(205-206): 2 x Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(207): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(208): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(209-210): 2 x Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(211): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(212): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(213): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(214): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(215): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(216): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(217): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(218): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(219): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(220): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(221): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(222): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(223): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(224): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(225): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(226): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(227): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(228): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(229): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(230): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(231): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(232-233): 2 x Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(234): Conv1d(4, 1, kernel_size=(22,), stride=(1,), bias=False)
(235-236): 2 x Conv1d(4, 1, kernel_size=(24,), stride=(1,), bias=False)
(237): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(238): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(239): Conv1d(4, 1, kernel_size=(24,), stride=(1,), bias=False)
(240): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(241): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(242): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(243): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(244-245): 2 x Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(246): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(247): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(248-249): 2 x Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(250): Conv1d(4, 1, kernel_size=(23,), stride=(1,), bias=False)
(251-253): 3 x Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(254): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(255): Conv1d(4, 1, kernel_size=(24,), stride=(1,), bias=False)
(256): Conv1d(4, 1, kernel_size=(22,), stride=(1,), bias=False)
(257-258): 2 x Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(259): Conv1d(4, 1, kernel_size=(24,), stride=(1,), bias=False)
(260-261): 2 x Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(262): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(263): Conv1d(4, 1, kernel_size=(23,), stride=(1,), bias=False)
(264): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(265): Conv1d(4, 1, kernel_size=(24,), stride=(1,), bias=False)
(266): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(267): Conv1d(4, 1, kernel_size=(24,), stride=(1,), bias=False)
(268): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(269): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(270): Conv1d(4, 1, kernel_size=(6,), stride=(1,), bias=False)
(271-273): 3 x Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(274): Conv1d(4, 1, kernel_size=(21,), stride=(1,), bias=False)
(275): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(276): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(277): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(278): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(279-280): 2 x Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(281): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(282): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(283): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(284): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(285): Conv1d(4, 1, kernel_size=(22,), stride=(1,), bias=False)
(286): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(287): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
)
(conv_di): ModuleList(
(0): None
)
(dropout): Dropout(p=0.8, inplace=False)
)
(activities): ActivitiesLayer()
(graph_module): GraphLayer()
(criterion): PoissonLoss()
),
False: Mubind(
(padding): ConstantPad2d(padding=(23, 23, 0, 0), value=0.25)
(binding_modes): BindingLayer(
(conv_mono): ModuleList(
(0): None
(1): Conv1d(4, 1, kernel_size=(2,), stride=(1,), bias=False)
(2): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(3): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(4): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(5): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(6): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(7): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(8-9): 2 x Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(10): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(11): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(12): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(13): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(14): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(15): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(16-17): 2 x Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(18): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(19): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(20): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(21): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(22): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(23): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(24): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(25): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(26): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(27-28): 2 x Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(29): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(30): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(31-32): 2 x Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(33): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(34): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(35): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(36): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(37): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(38): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(39): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(40): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(41): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(42): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(43): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(44): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(45): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(46): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(47): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(48): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(49-50): 2 x Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(51): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(52): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(53): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(54-55): 2 x Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(56): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(57): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(58): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(59): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(60): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(61-62): 2 x Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(63): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(64): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(65): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(66): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(67): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(68): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(69-70): 2 x Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(71): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(72): Conv1d(4, 1, kernel_size=(6,), stride=(1,), bias=False)
(73): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(74): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(75): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(76): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(77): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(78): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(79): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(80): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(81): Conv1d(4, 1, kernel_size=(21,), stride=(1,), bias=False)
(82): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(83): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(84): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(85): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(86): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(87): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(88): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(89-90): 2 x Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(91): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(92): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(93): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(94): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(95): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(96): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(97): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(98): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(99): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(100): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(101): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(102): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(103): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(104): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(105): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(106): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(107): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(108): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(109): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(110-111): 2 x Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(112): Conv1d(4, 1, kernel_size=(7,), stride=(1,), bias=False)
(113): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(114): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(115): Conv1d(4, 1, kernel_size=(7,), stride=(1,), bias=False)
(116): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(117): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(118): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(119): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(120): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(121): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(122): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(123-124): 2 x Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(125): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(126): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(127): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(128): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(129): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(130): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(131): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(132): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(133): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(134): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(135): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(136): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(137): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(138): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(139): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(140): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(141): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(142): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(143-144): 2 x Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(145): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(146): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(147): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(148): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(149): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(150): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(151): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(152): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(153): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(154): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(155): Conv1d(4, 1, kernel_size=(7,), stride=(1,), bias=False)
(156-157): 2 x Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(158): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(159): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(160): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(161): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(162): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(163): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(164): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(165): Conv1d(4, 1, kernel_size=(21,), stride=(1,), bias=False)
(166): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(167): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(168): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(169): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(170): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(171): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(172): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(173): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(174): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(175): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(176): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(177): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(178): Conv1d(4, 1, kernel_size=(6,), stride=(1,), bias=False)
(179-180): 2 x Conv1d(4, 1, kernel_size=(22,), stride=(1,), bias=False)
(181): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(182): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(183): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(184): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(185): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(186): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(187): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(188): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(189): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(190): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(191): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(192): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(193): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(194): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(195): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(196-198): 3 x Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(199-200): 2 x Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(201): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(202): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(203): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(204): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(205-206): 2 x Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(207): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(208): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(209-210): 2 x Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(211): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(212): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(213): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(214): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(215): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(216): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(217): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(218): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(219): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(220): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(221): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(222): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(223): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(224): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(225): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(226): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(227): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(228): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(229): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(230): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(231): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(232-233): 2 x Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(234): Conv1d(4, 1, kernel_size=(22,), stride=(1,), bias=False)
(235-236): 2 x Conv1d(4, 1, kernel_size=(24,), stride=(1,), bias=False)
(237): Conv1d(4, 1, kernel_size=(16,), stride=(1,), bias=False)
(238): Conv1d(4, 1, kernel_size=(8,), stride=(1,), bias=False)
(239): Conv1d(4, 1, kernel_size=(24,), stride=(1,), bias=False)
(240): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(241): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(242): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(243): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(244-245): 2 x Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(246): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(247): Conv1d(4, 1, kernel_size=(14,), stride=(1,), bias=False)
(248-249): 2 x Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(250): Conv1d(4, 1, kernel_size=(23,), stride=(1,), bias=False)
(251-253): 3 x Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(254): Conv1d(4, 1, kernel_size=(9,), stride=(1,), bias=False)
(255): Conv1d(4, 1, kernel_size=(24,), stride=(1,), bias=False)
(256): Conv1d(4, 1, kernel_size=(22,), stride=(1,), bias=False)
(257-258): 2 x Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(259): Conv1d(4, 1, kernel_size=(24,), stride=(1,), bias=False)
(260-261): 2 x Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(262): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
(263): Conv1d(4, 1, kernel_size=(23,), stride=(1,), bias=False)
(264): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(265): Conv1d(4, 1, kernel_size=(24,), stride=(1,), bias=False)
(266): Conv1d(4, 1, kernel_size=(11,), stride=(1,), bias=False)
(267): Conv1d(4, 1, kernel_size=(24,), stride=(1,), bias=False)
(268): Conv1d(4, 1, kernel_size=(12,), stride=(1,), bias=False)
(269): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(270): Conv1d(4, 1, kernel_size=(6,), stride=(1,), bias=False)
(271-273): 3 x Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(274): Conv1d(4, 1, kernel_size=(21,), stride=(1,), bias=False)
(275): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(276): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(277): Conv1d(4, 1, kernel_size=(13,), stride=(1,), bias=False)
(278): Conv1d(4, 1, kernel_size=(19,), stride=(1,), bias=False)
(279-280): 2 x Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(281): Conv1d(4, 1, kernel_size=(17,), stride=(1,), bias=False)
(282): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(283): Conv1d(4, 1, kernel_size=(10,), stride=(1,), bias=False)
(284): Conv1d(4, 1, kernel_size=(20,), stride=(1,), bias=False)
(285): Conv1d(4, 1, kernel_size=(22,), stride=(1,), bias=False)
(286): Conv1d(4, 1, kernel_size=(18,), stride=(1,), bias=False)
(287): Conv1d(4, 1, kernel_size=(15,), stride=(1,), bias=False)
)
(conv_di): ModuleList(
(0): None
)
(dropout): Dropout(p=0.8, inplace=False)
)
(activities): ActivitiesLayer()
(graph_module): GraphLayer()
(criterion): PoissonLoss()
)}
rcParams['figure.figsize'] = 5, 5
mb.pl.kmer_enrichment(model_by_logdynamic[True], train, k=8, style='scatter')
{'r2_counts': 0.6289044618606567,
'r2_foldchange': -0.001452803611755371,
'r2_enr': -0.047147393226623535,
'r2_fc': 0.00046161110510426146,
'pearson_foldchange': 0.021485136841646168}
model.binding_modes.conv_mono[1](torch.ones((1, 4, 256)).cuda())
tensor([[[0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365,
0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365, 0.2365]]],
device='cuda:0')
lib_sizes = train.dataset.rounds.sum(axis=0).flatten()
for use_logdynamic in [False, True]:
p = 'dentategyrus_use_logdynamic_%i_obs%i.pth' % (use_logdynamic, ad.shape[0])
print(p)
torch.save(model_by_logdynamic[use_logdynamic], p)
dentategyrus_use_logdynamic_0_obs2930.pth
dentategyrus_use_logdynamic_1_obs2930.pth
ad.shape
(2930, 13187)
ad.write('dentategyrus_sample_train_obs%i.h5ad' % ad.shape[0])
import pickle
pickle.dump(train, open('dentategyrus_train_dataloader_obs%i.pkl' % ad.shape[0], 'wb'))
